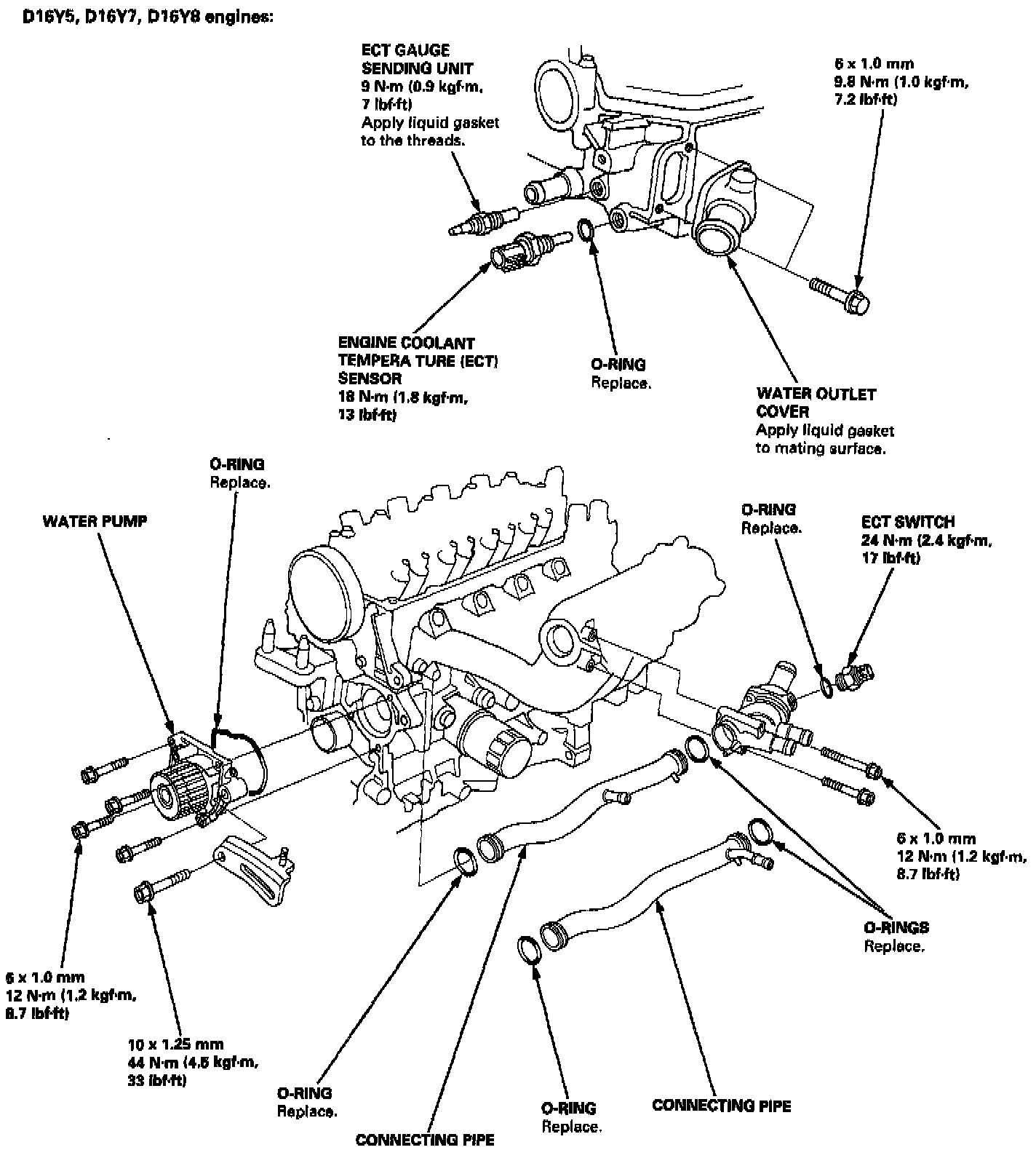

Water Pump






NOTE:
- Use new O-rings when reassembling.
- Use liquid gasket, Part No. 08718-0001 or 08718-0003.
