Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Wiring Diagrams >> With CVT

With CVT

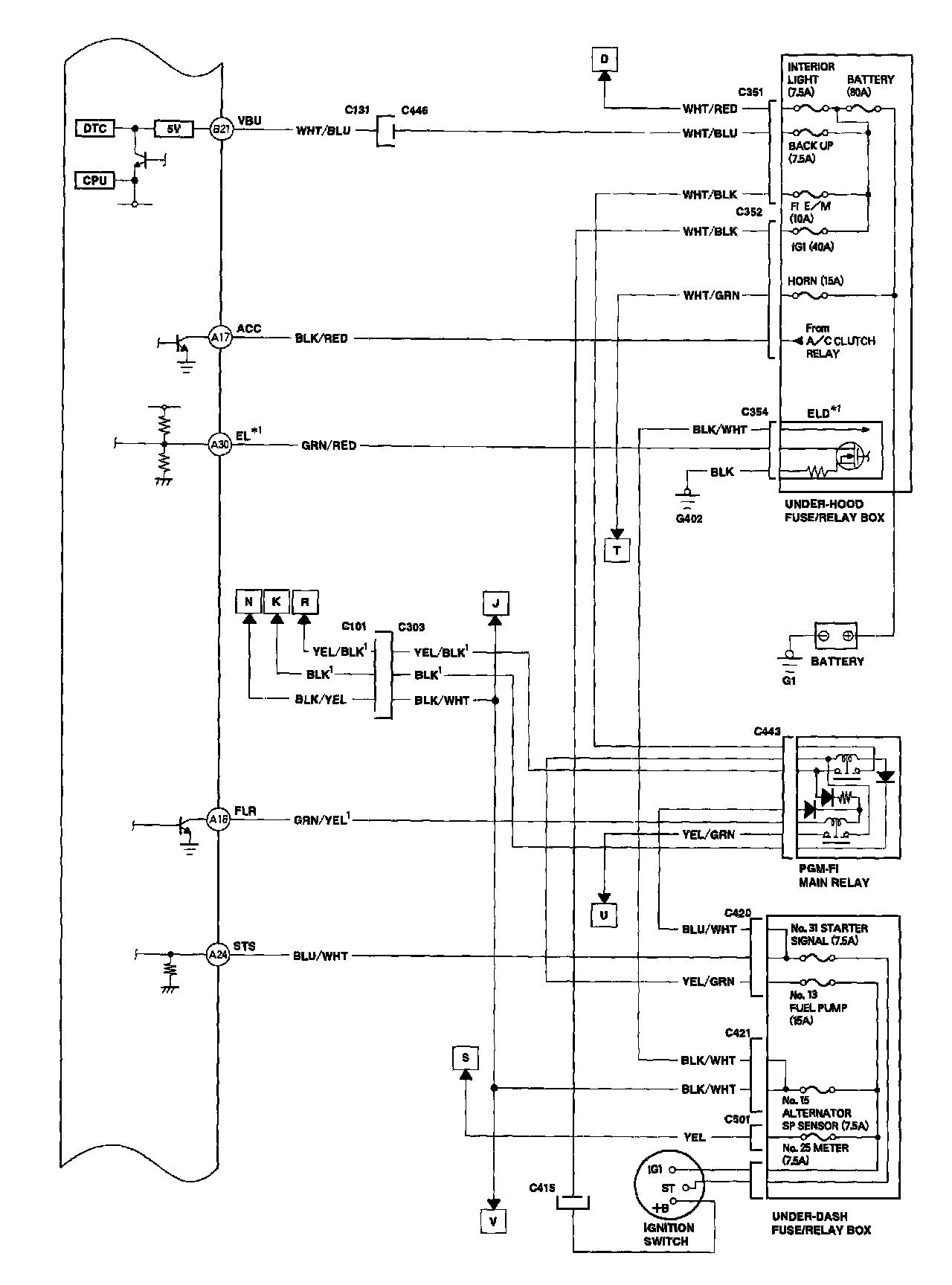

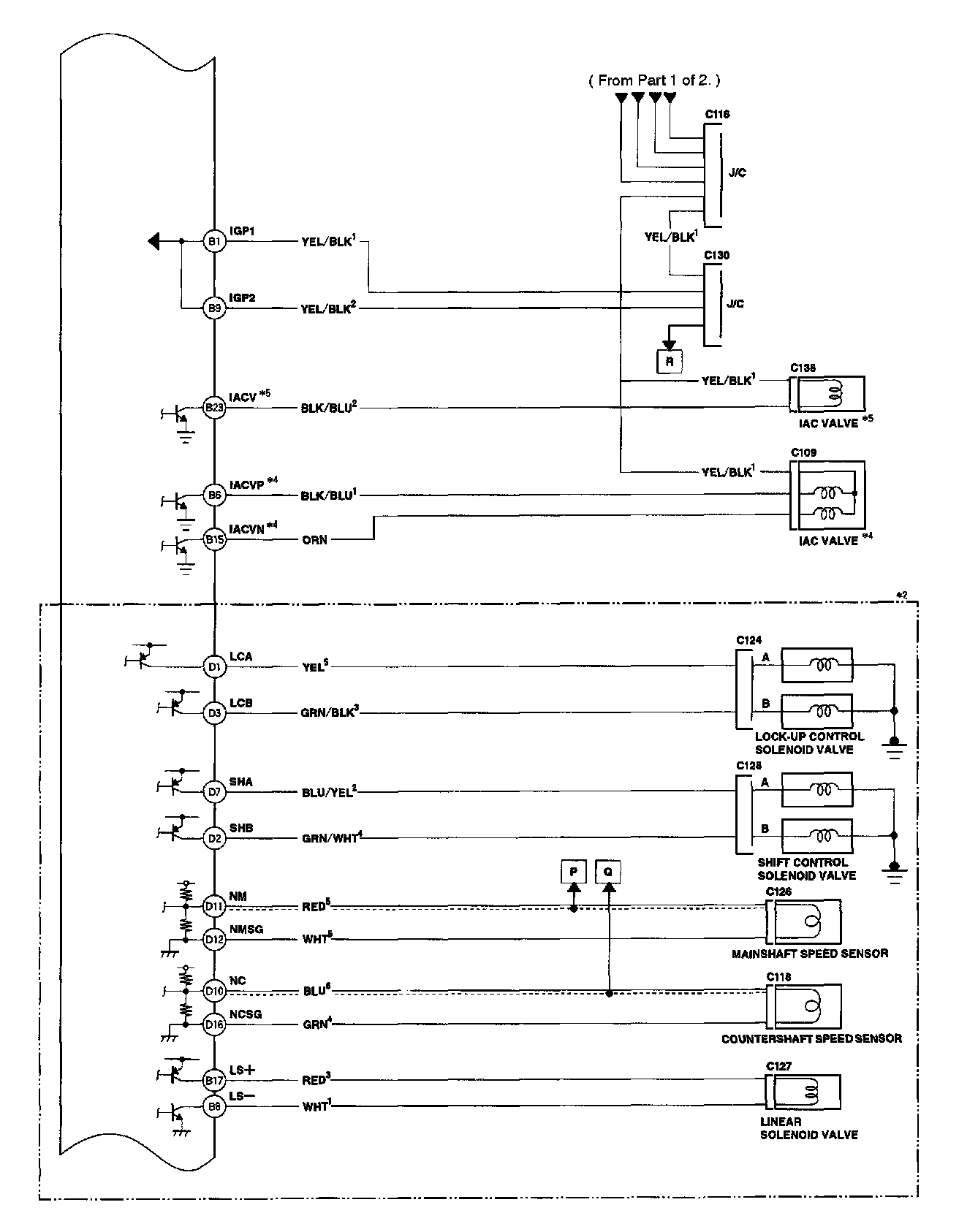

Part 1 Of 12 (except D16Y5 Engine With M/T):

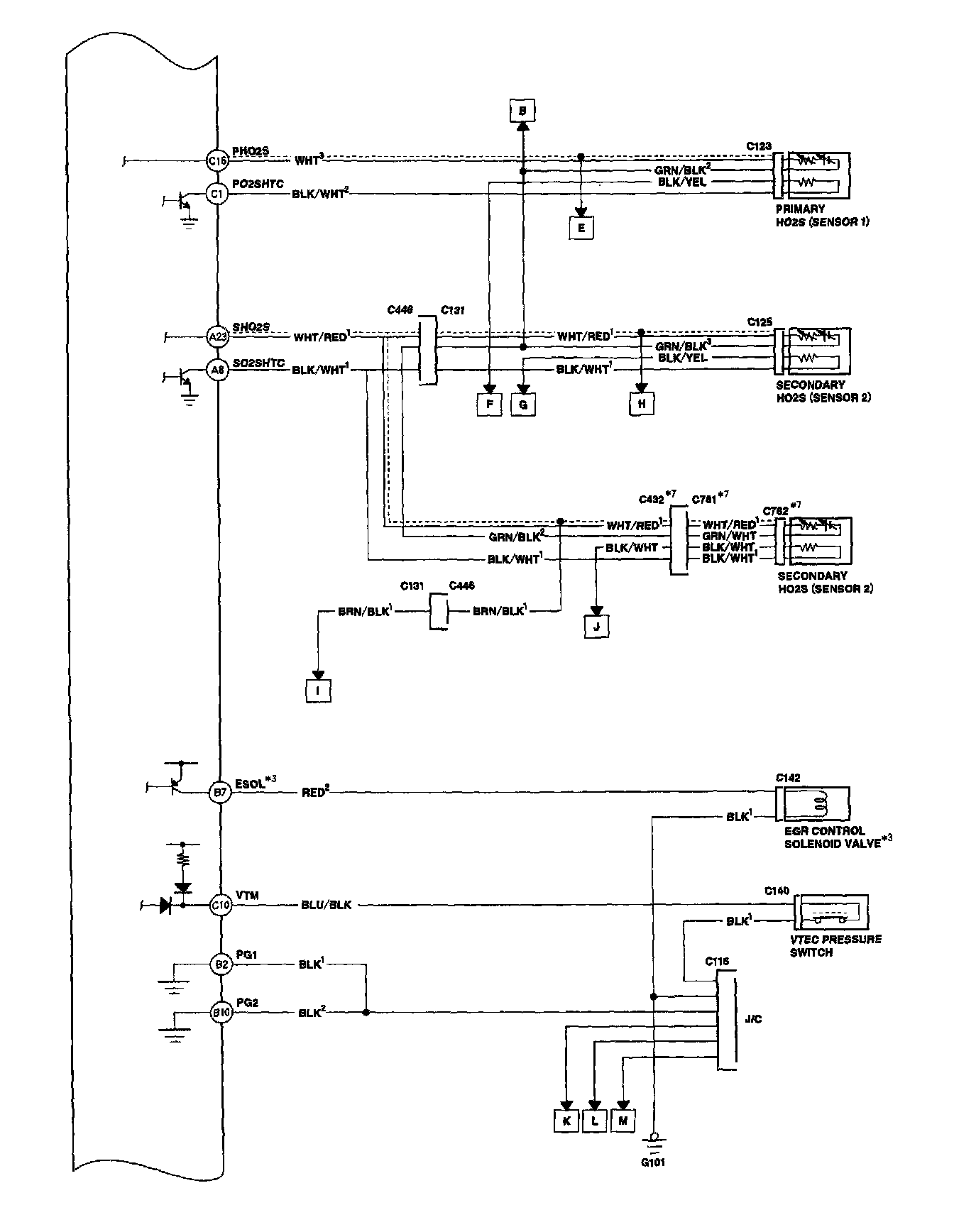

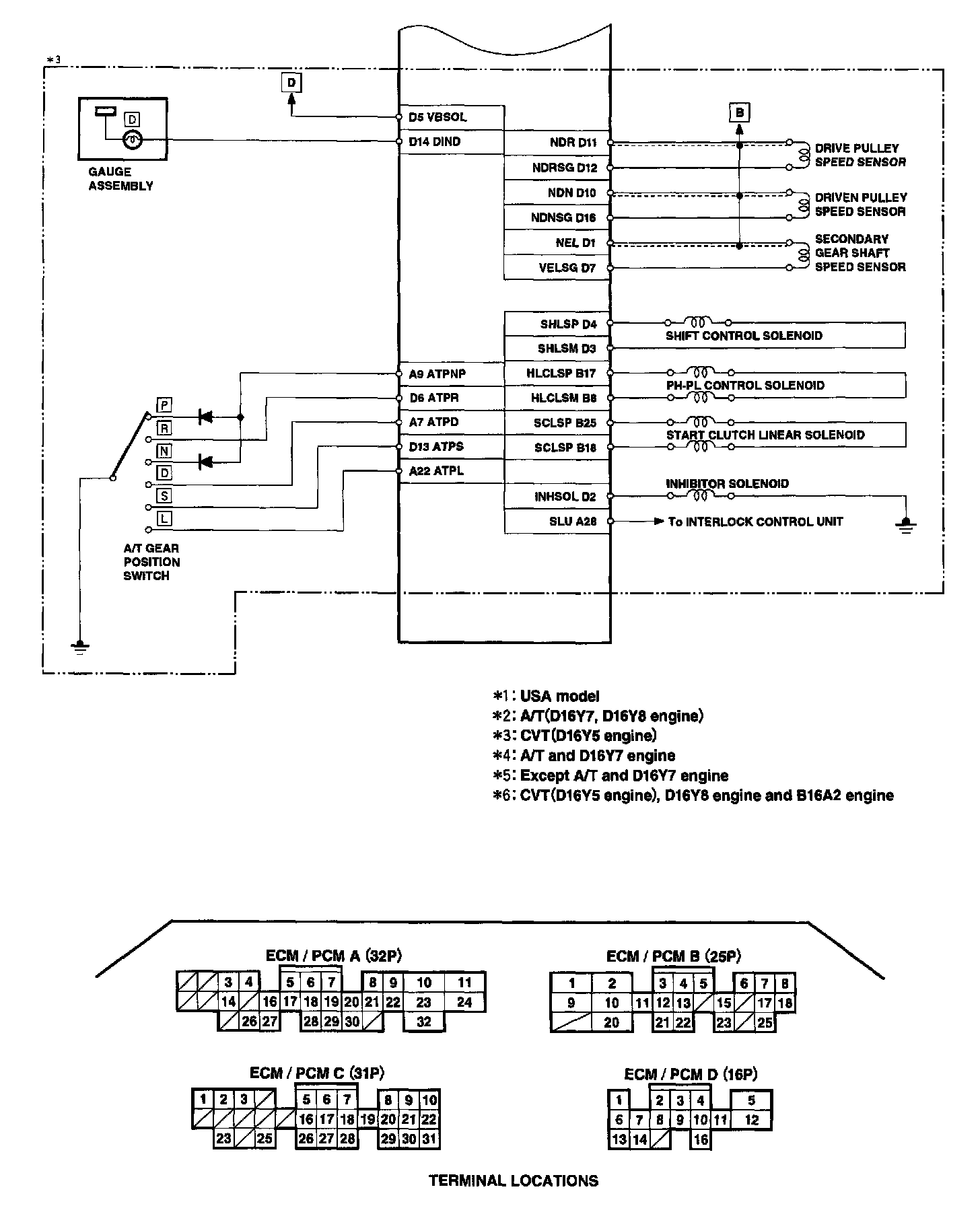

Part 2 Of 12 (except D16Y5 Engine With M/T):

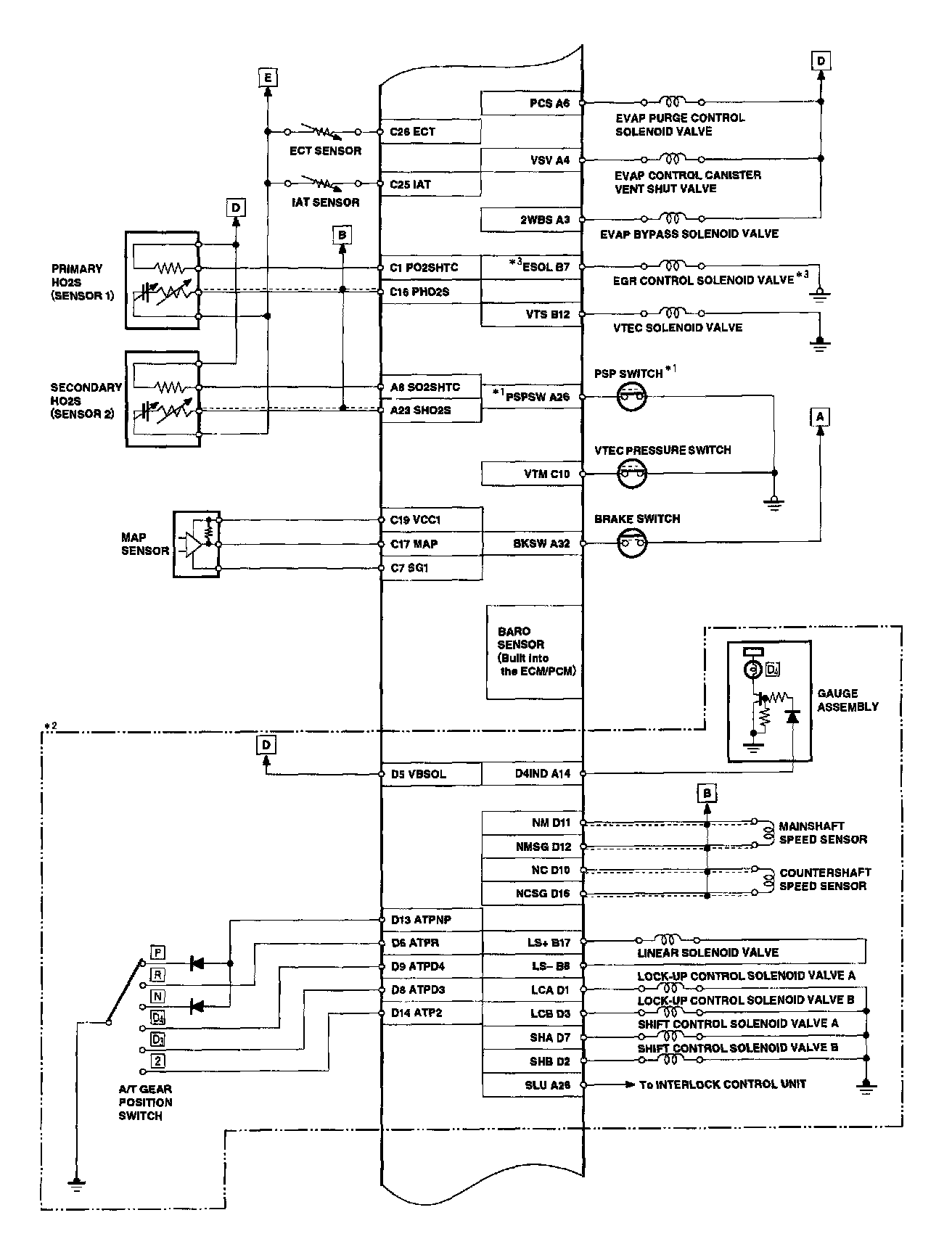

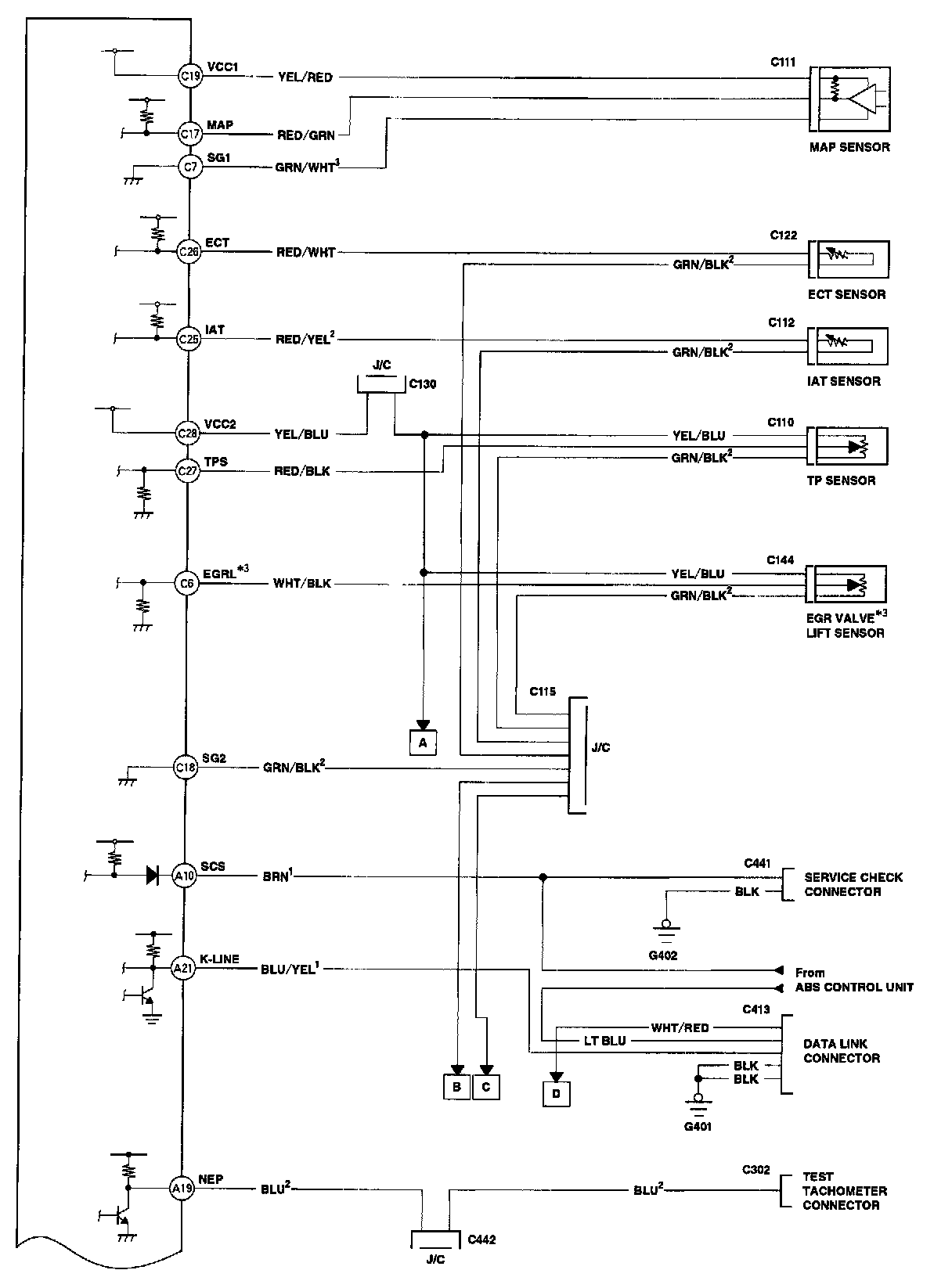

Part 3 Of 12 (except D16Y5 Engine With M/T):

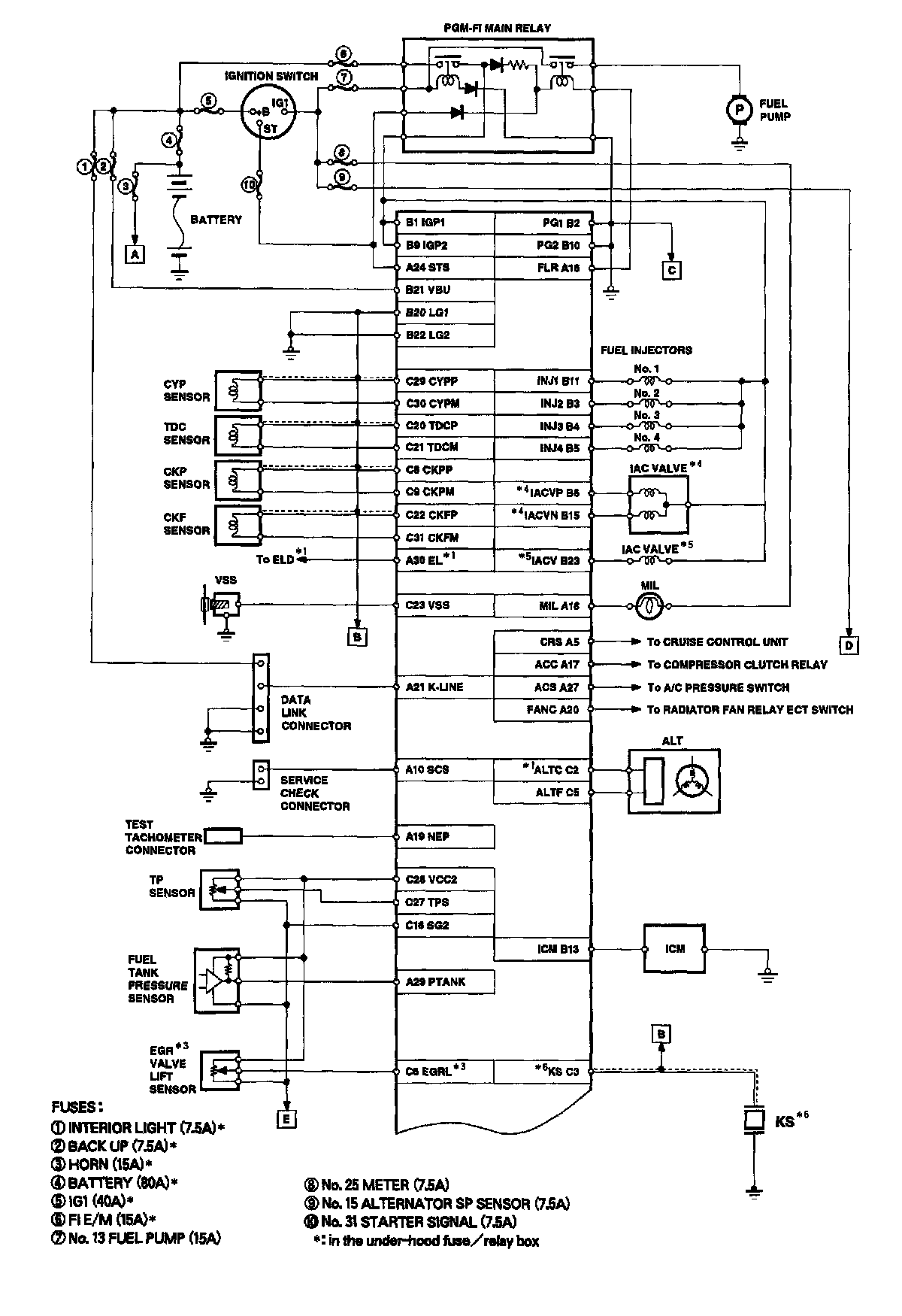

Part 4 Of 12 (except D16Y5 Engine With M/T):

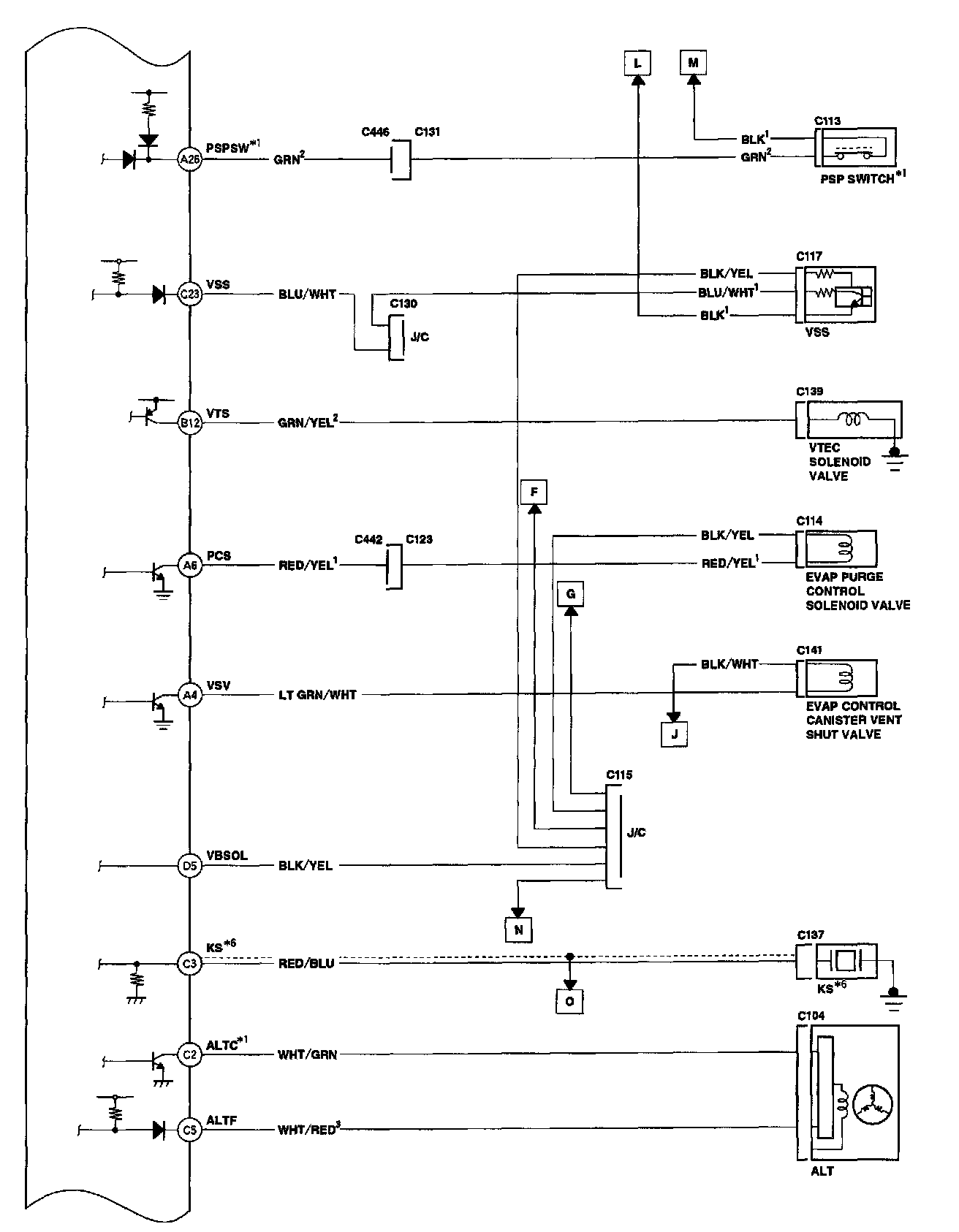

Part 5 Of 12 (except D16Y5 Engine With M/T):

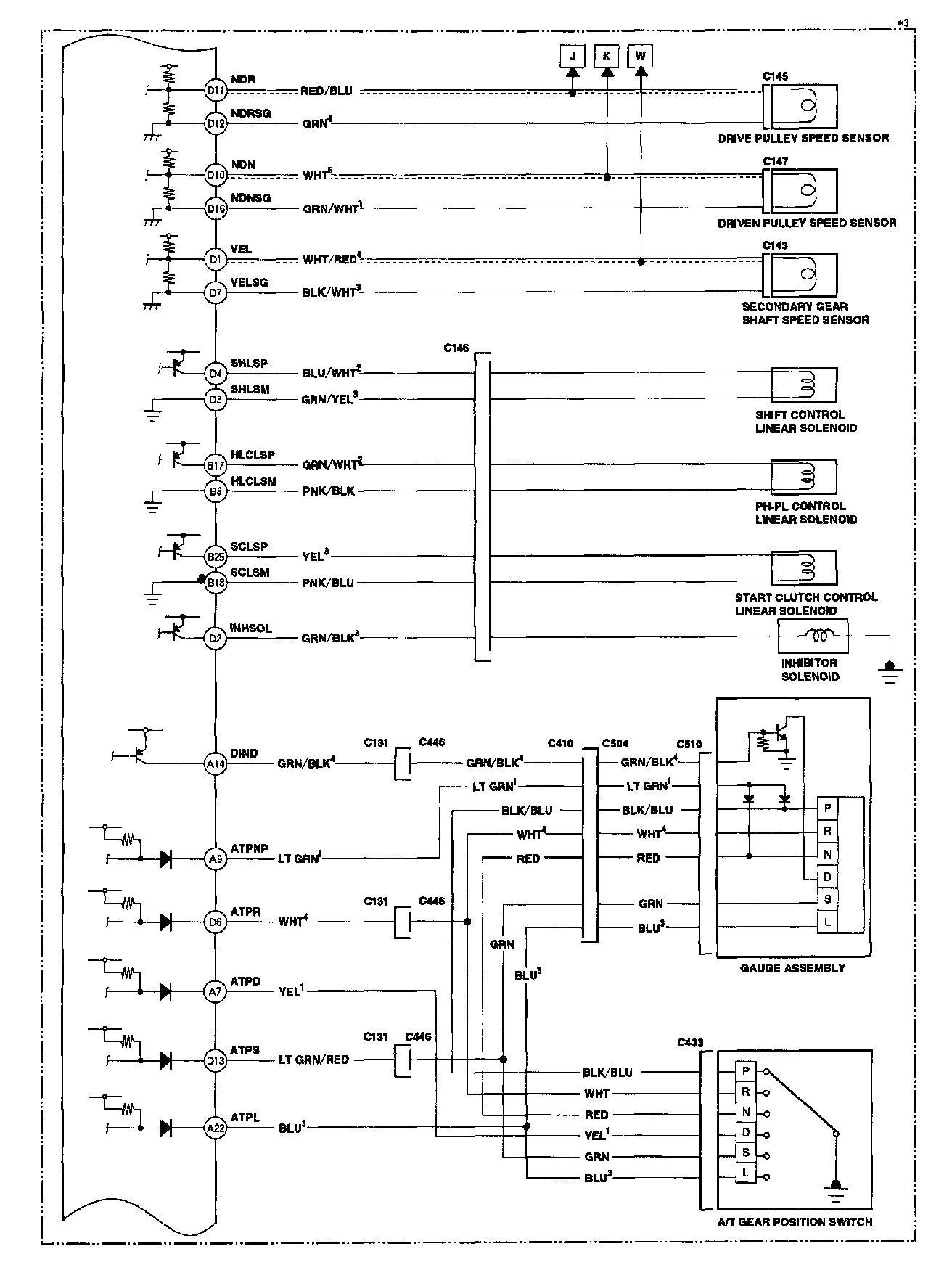

Part 6 Of 12 (except D16Y5 Engine With M/T):

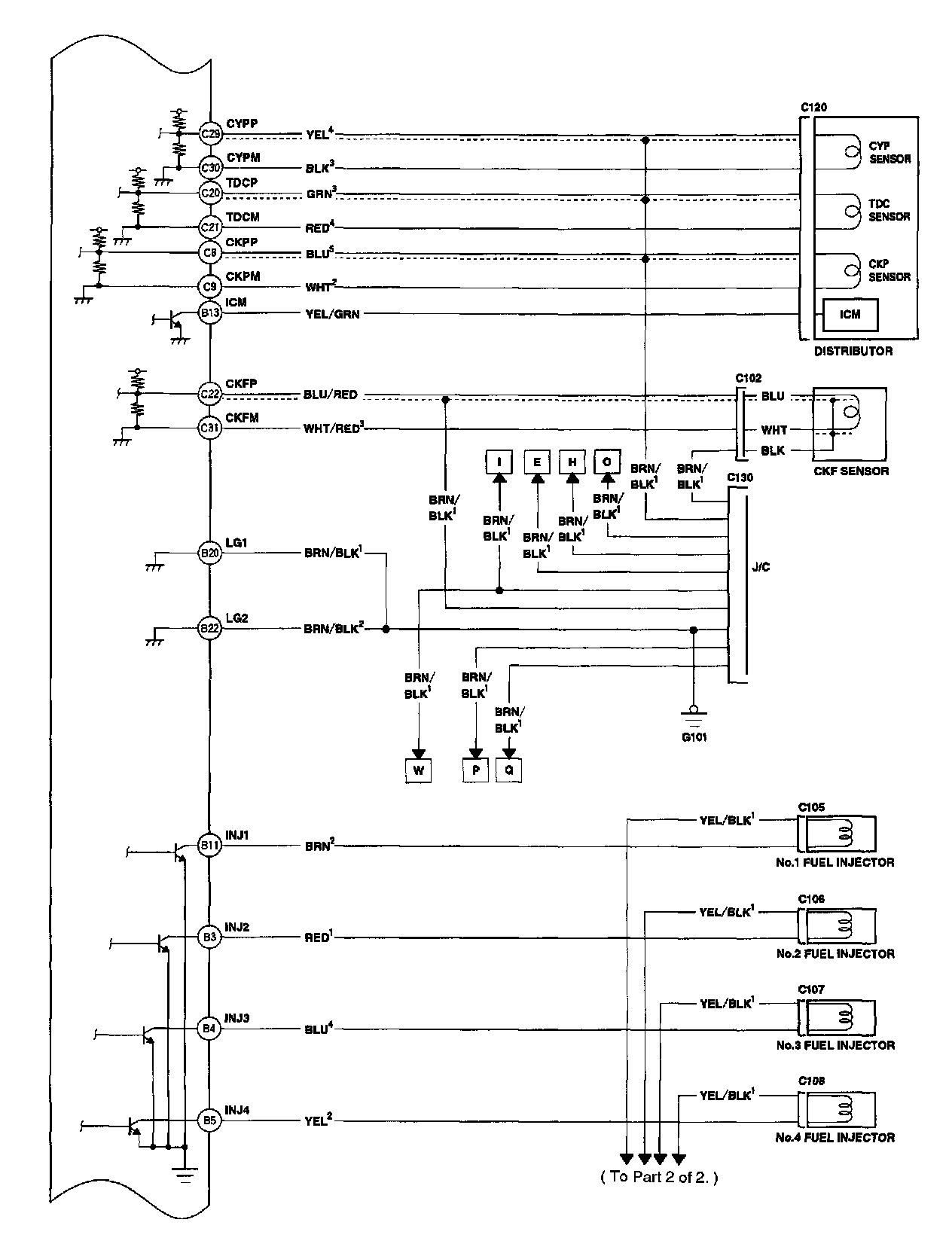

Part 7 Of 12 (except D16Y5 Engine With M/T):

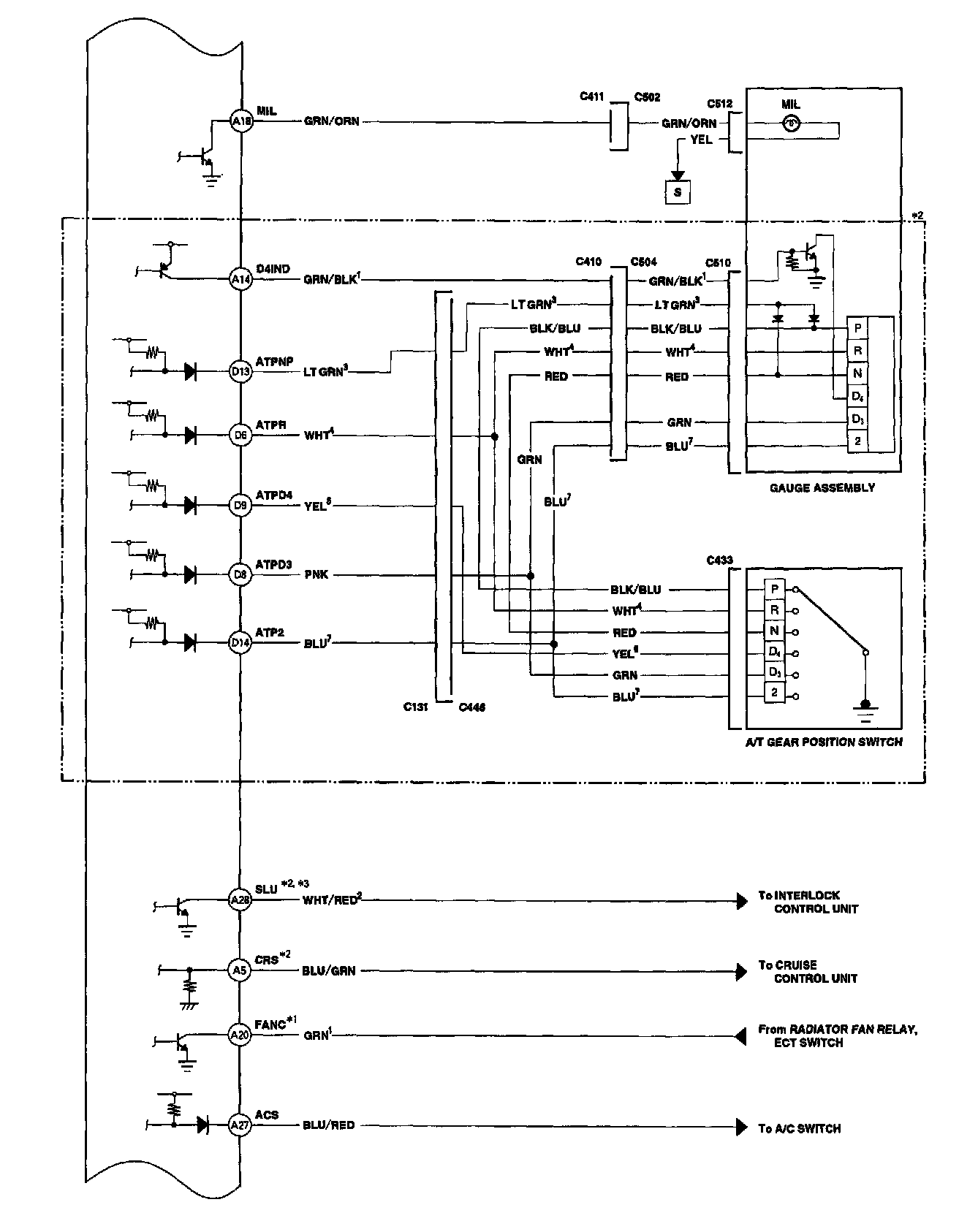

Part 8 Of 12 (except D16Y5 Engine With M/T):





Part 9 Of 12 (except D16Y5 Engine With M/T):





Part 10 Of 12 (except D16Y5 Engine With M/T):





Part 11 Of 12(except D16Y5 Engine With M/T):





Part 12 Of 12(except D16Y5 Engine With M/T):
