Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Schematic Diagrams >> With M/T

With M/T

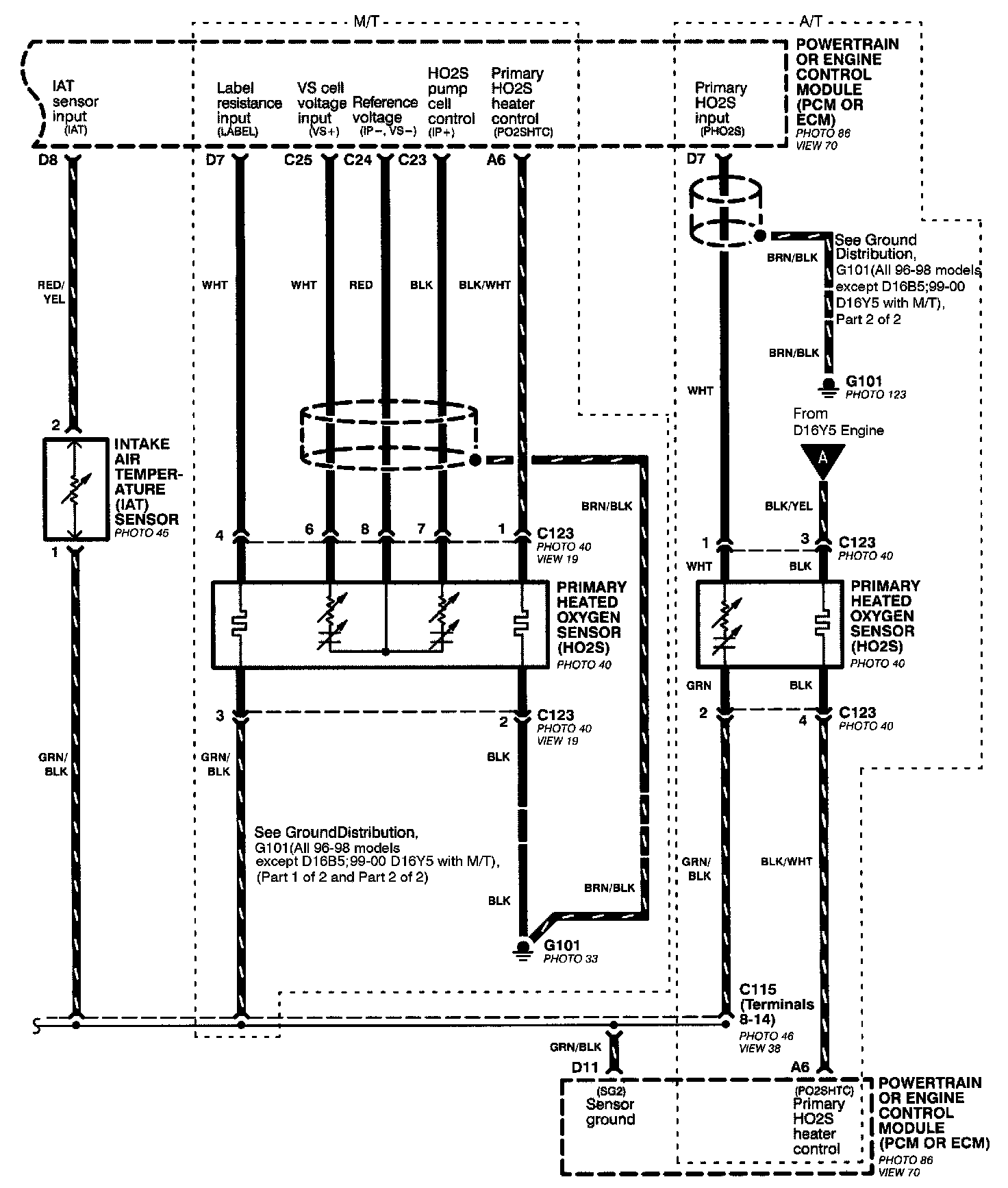

Part 1 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

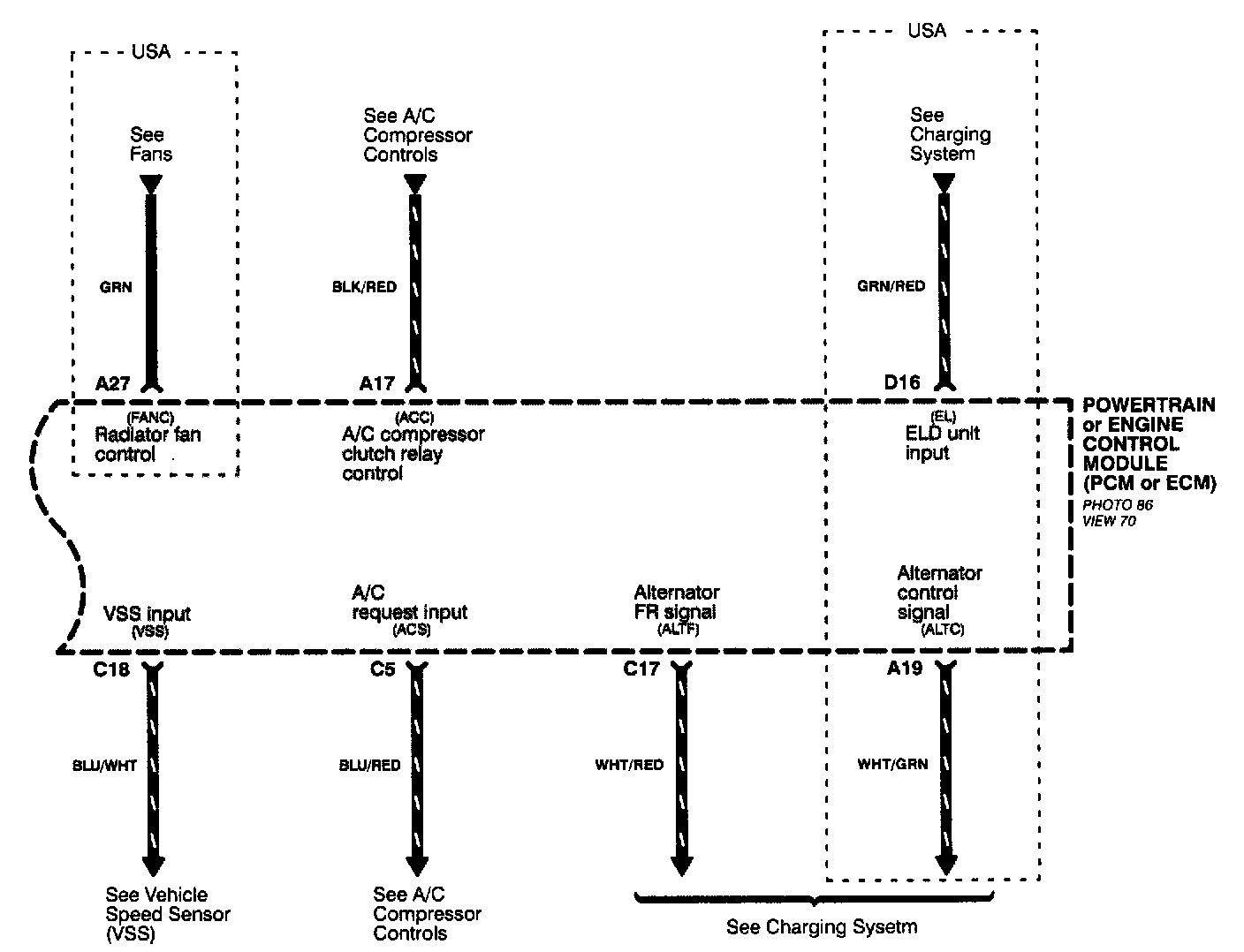

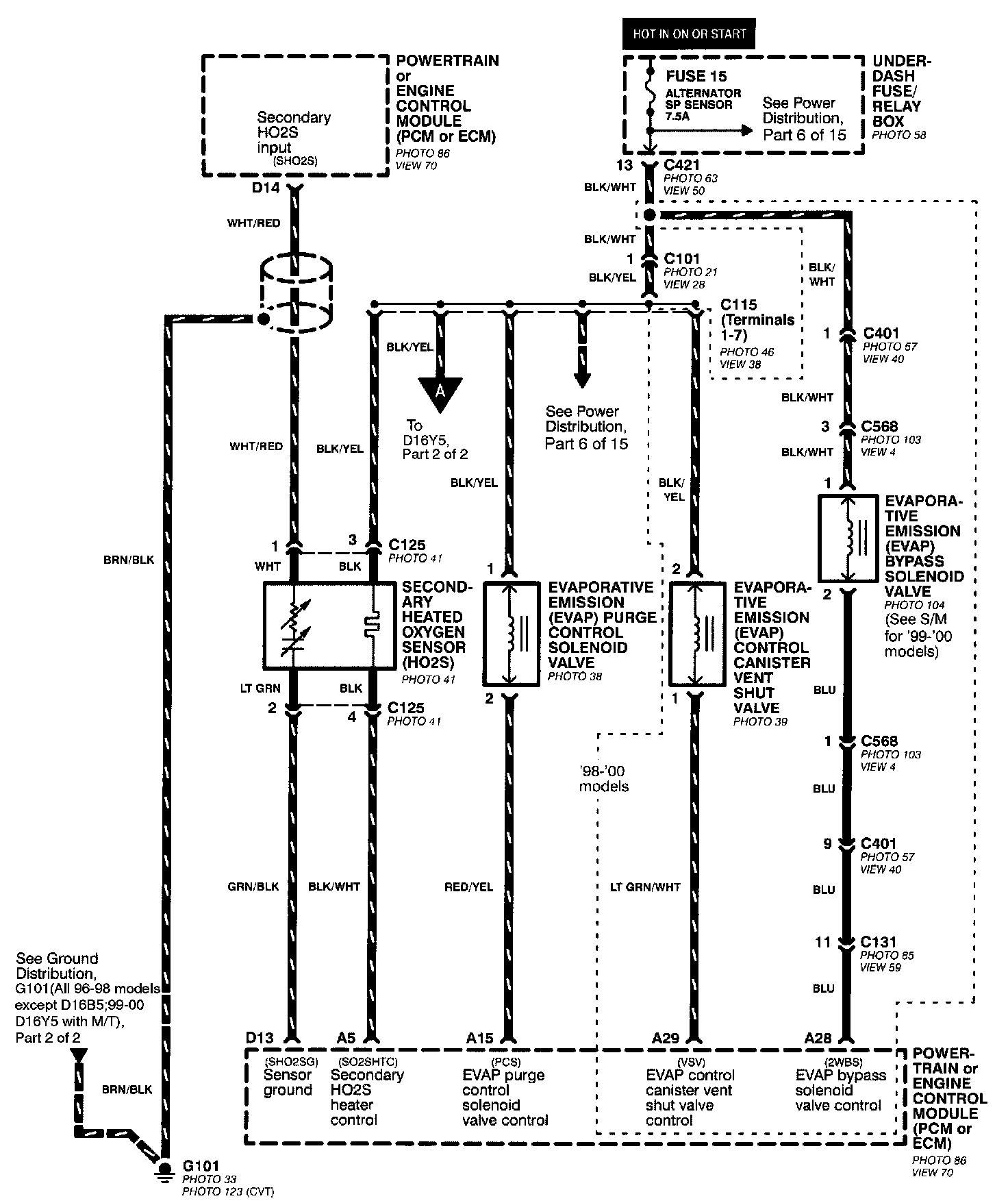

Part 2 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

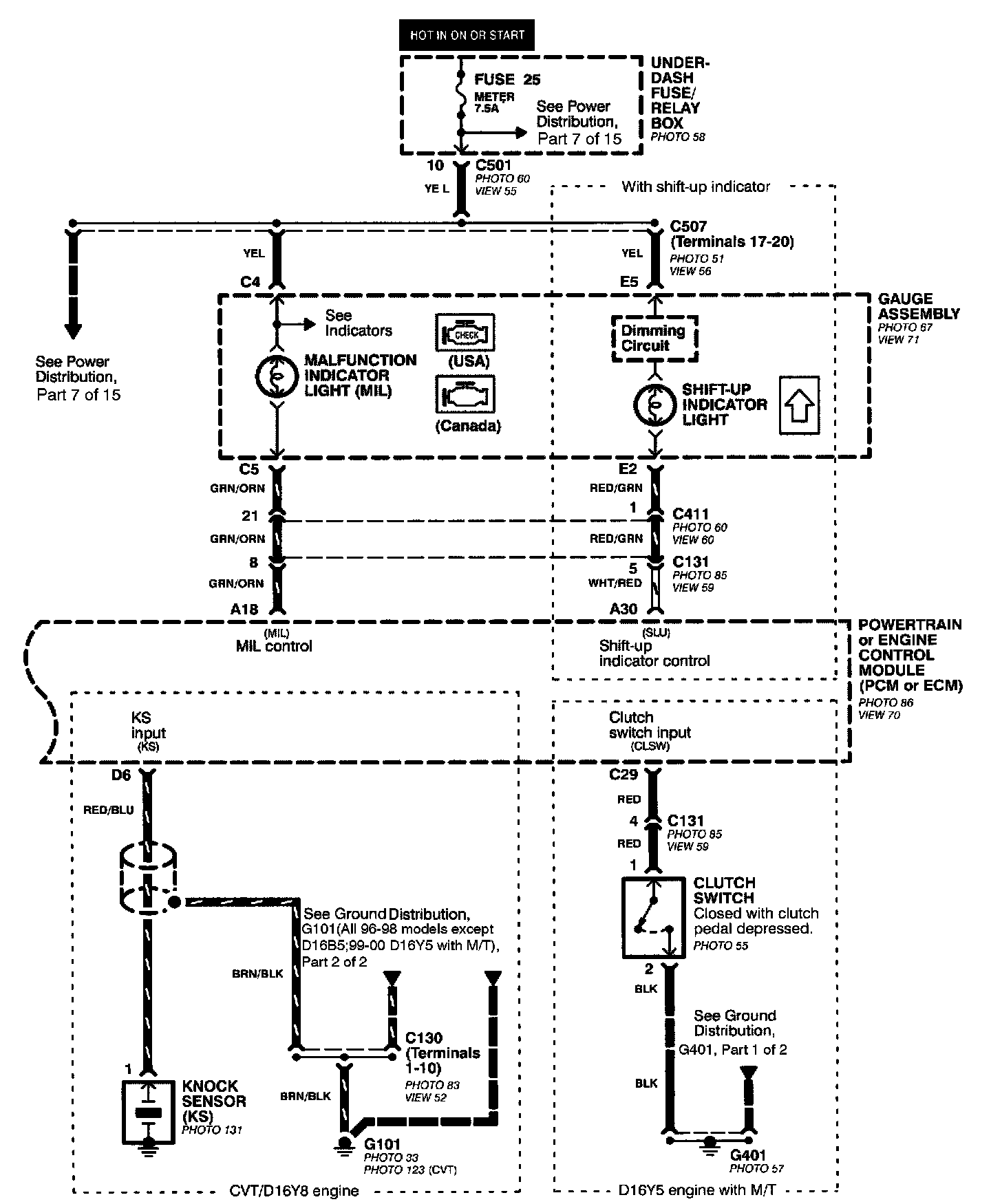

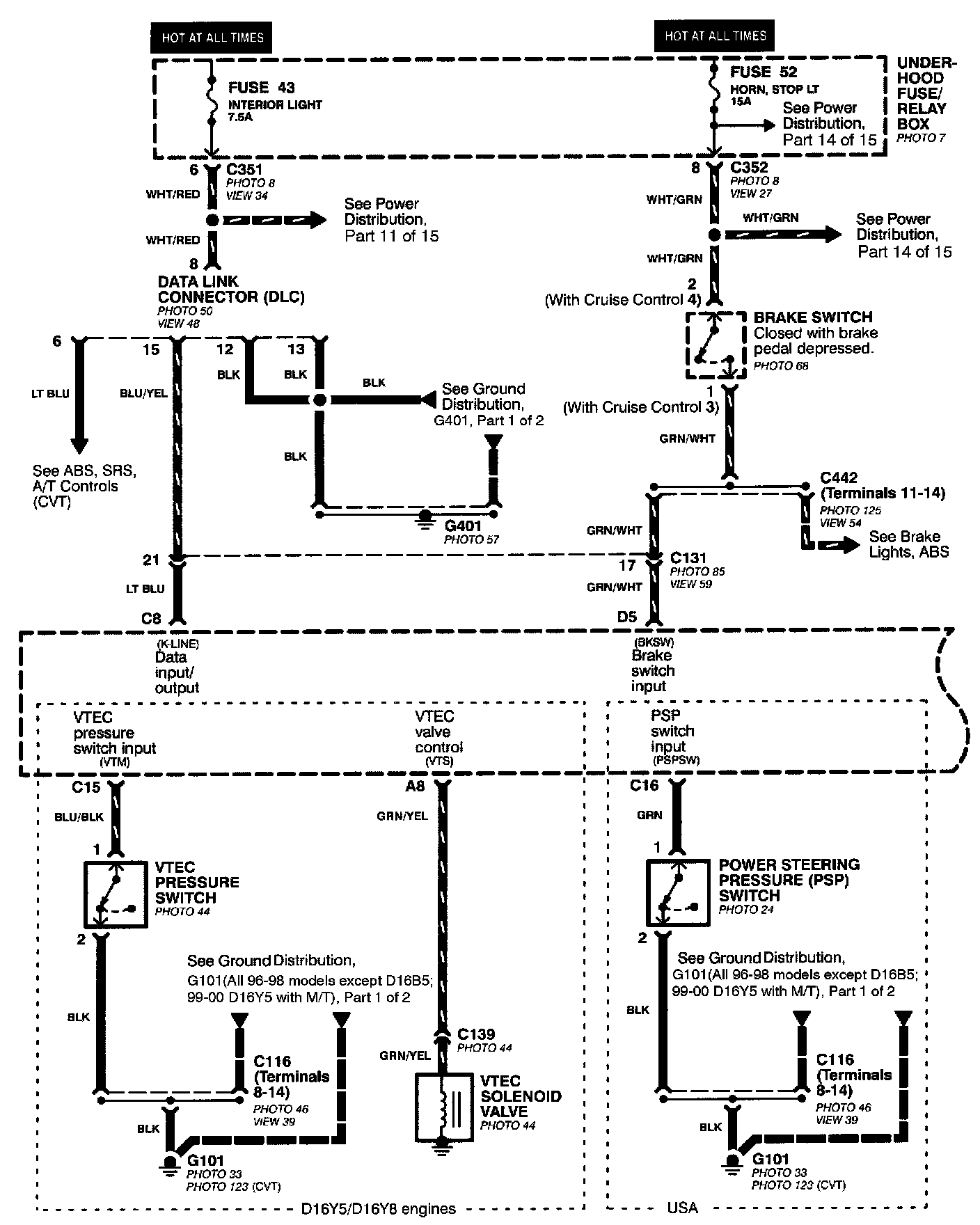

Part 3 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

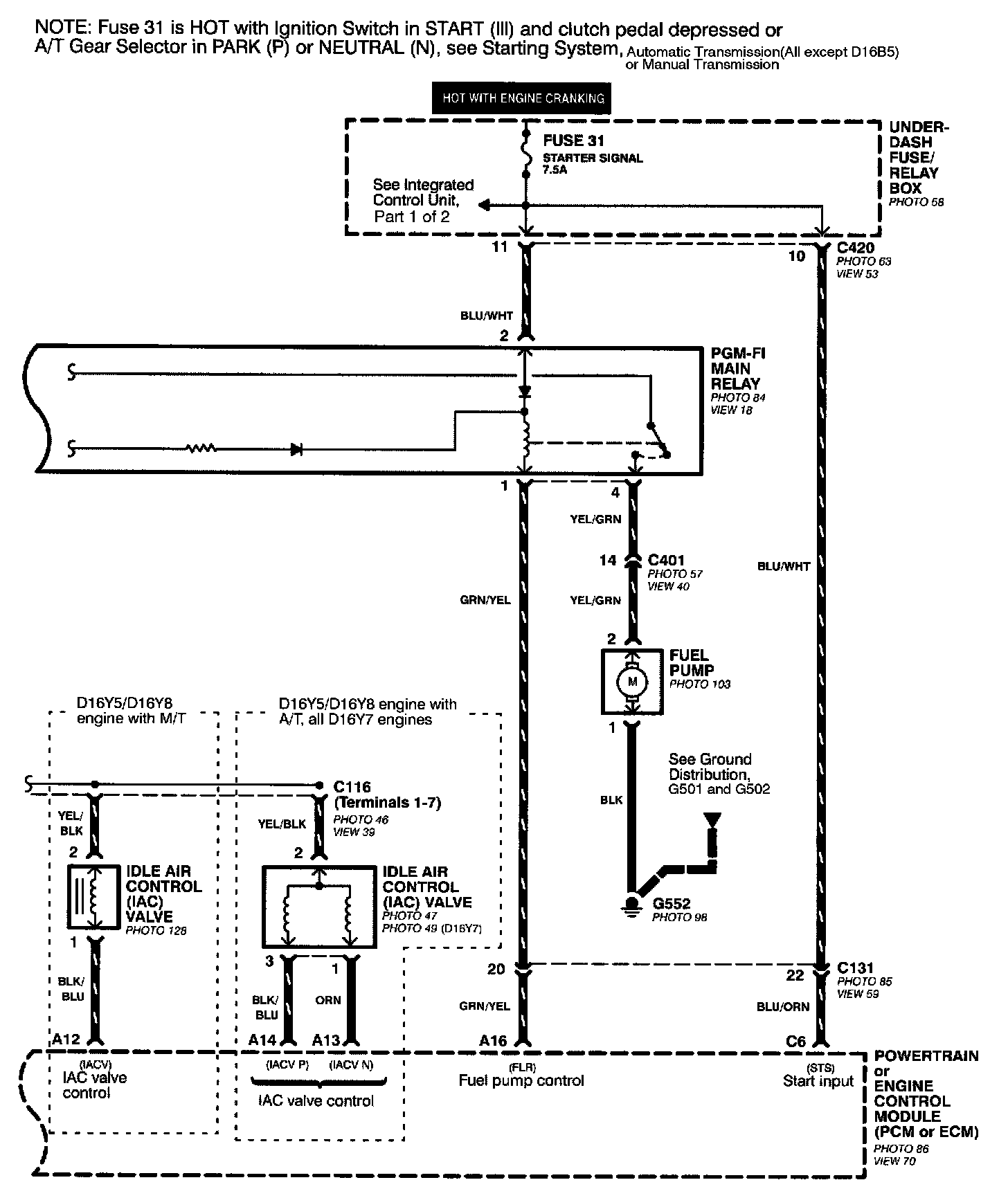

Part 4 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

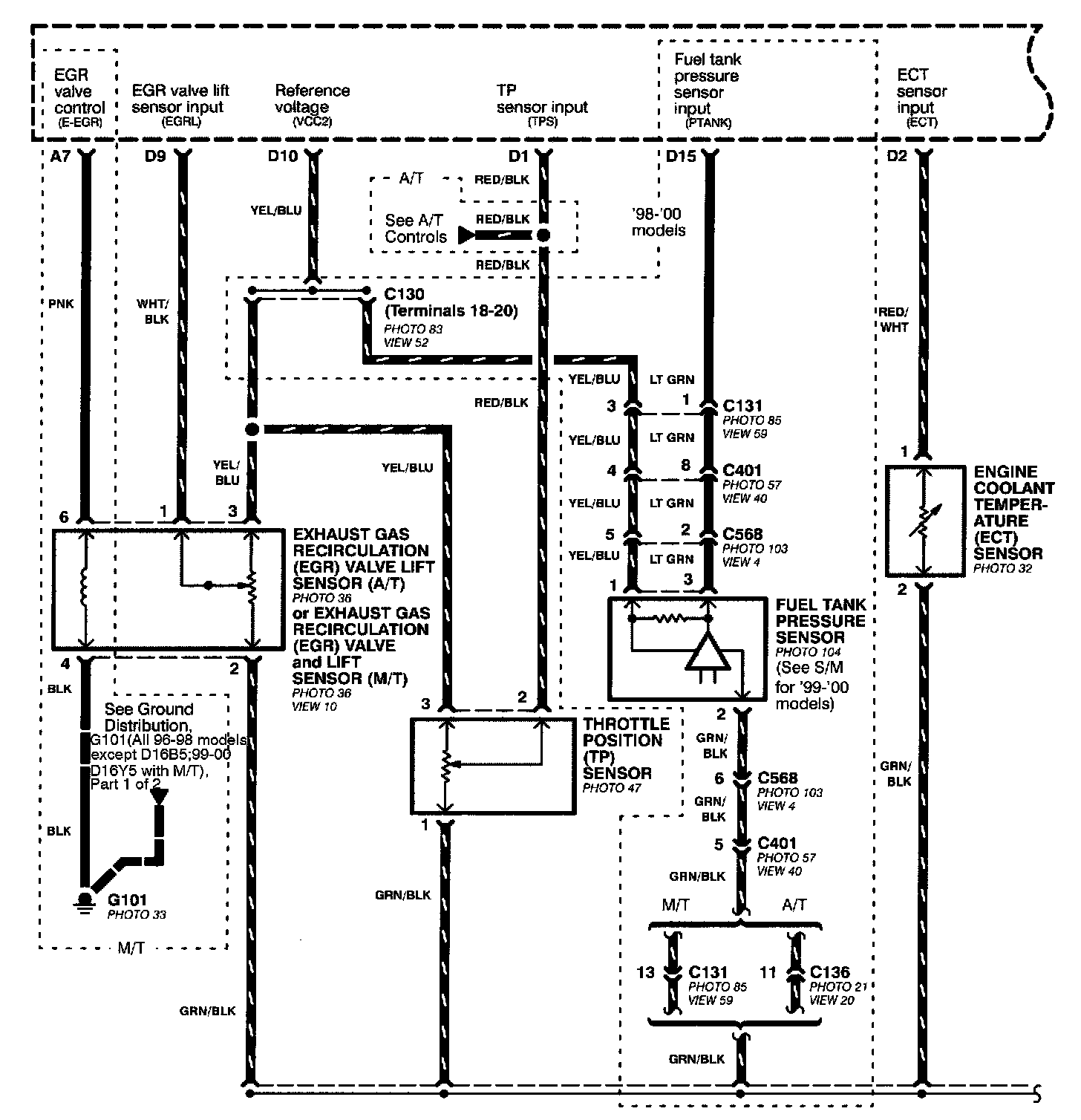

Part 5 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

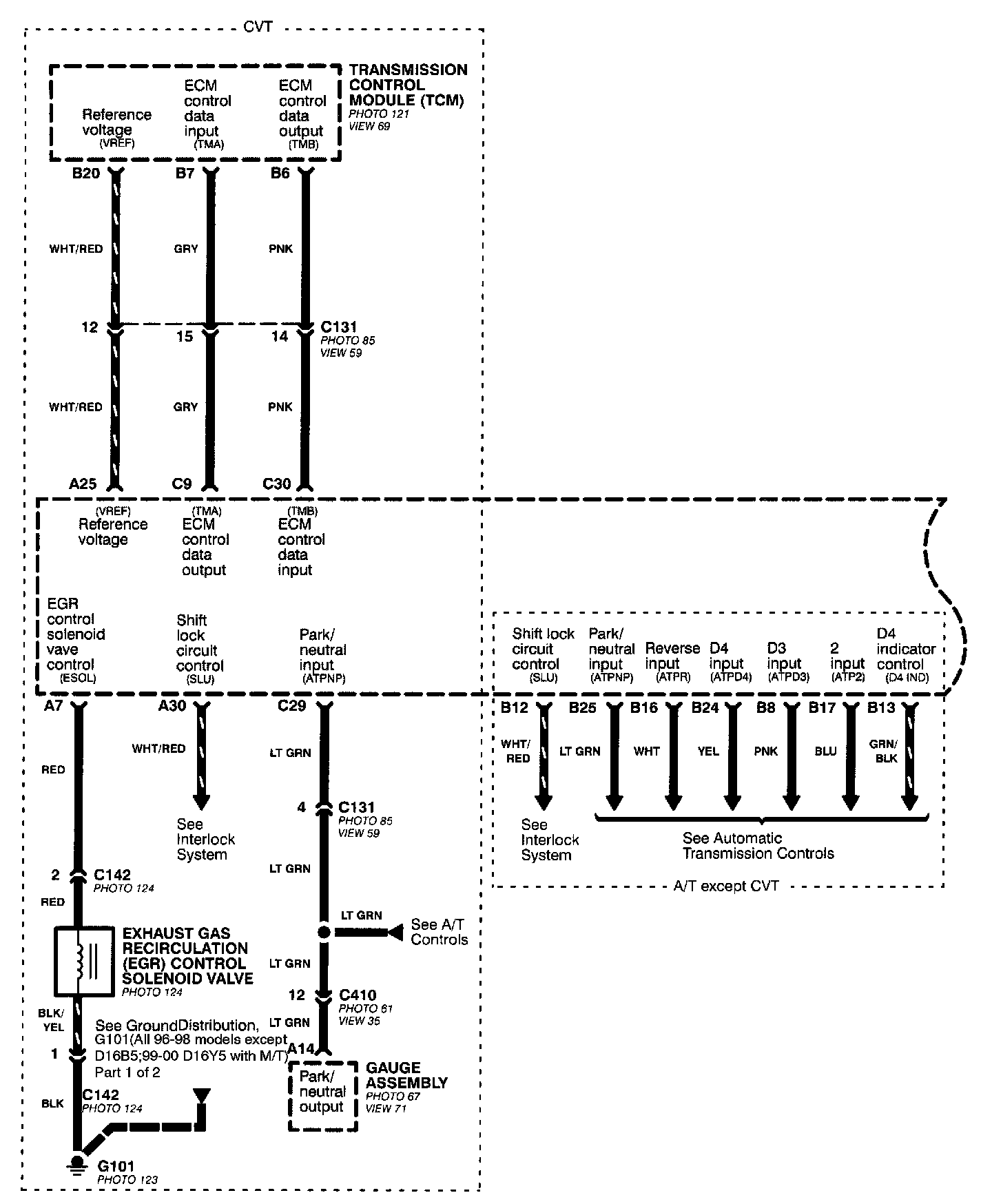

Part 6 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

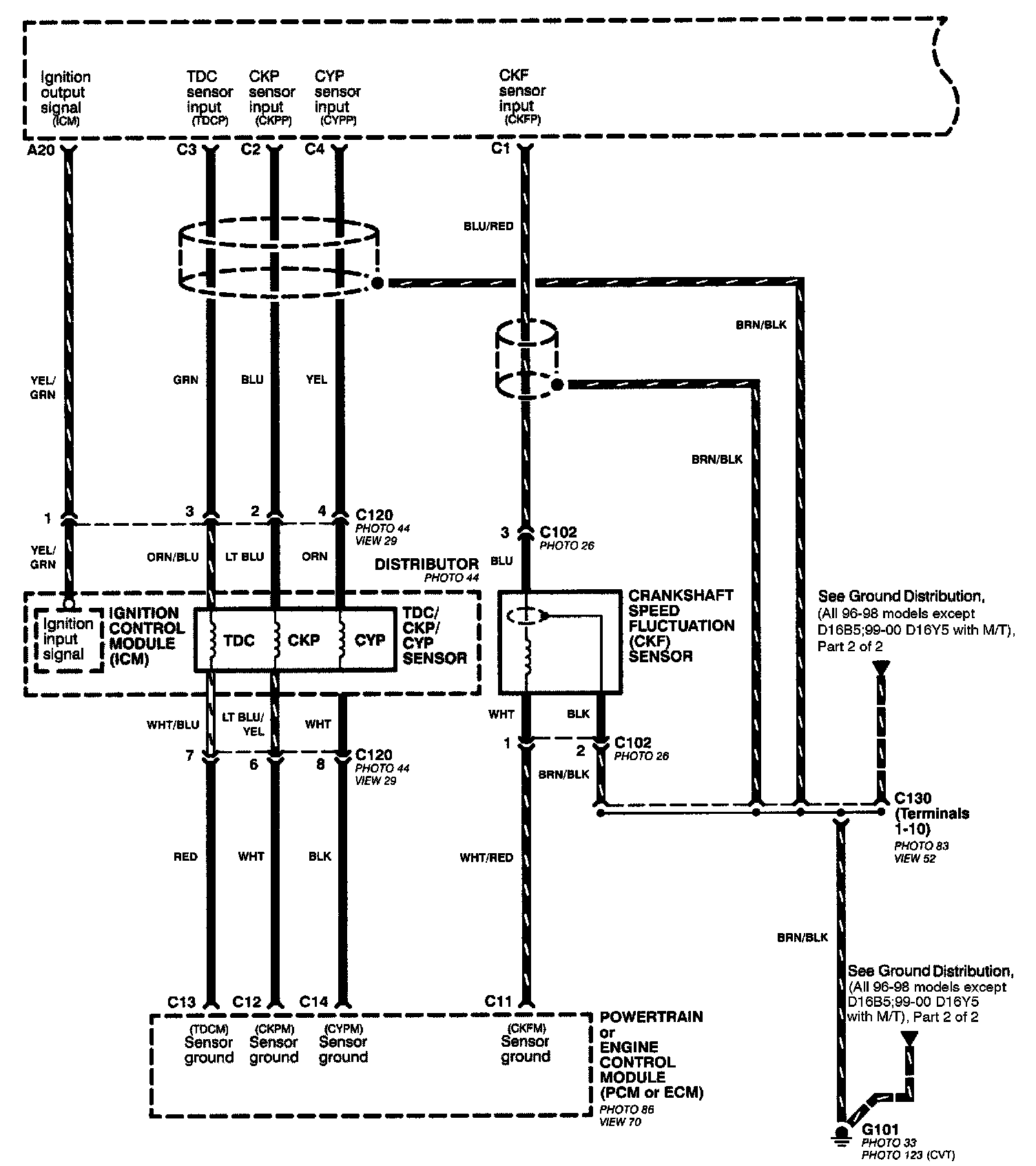

Part 7 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):

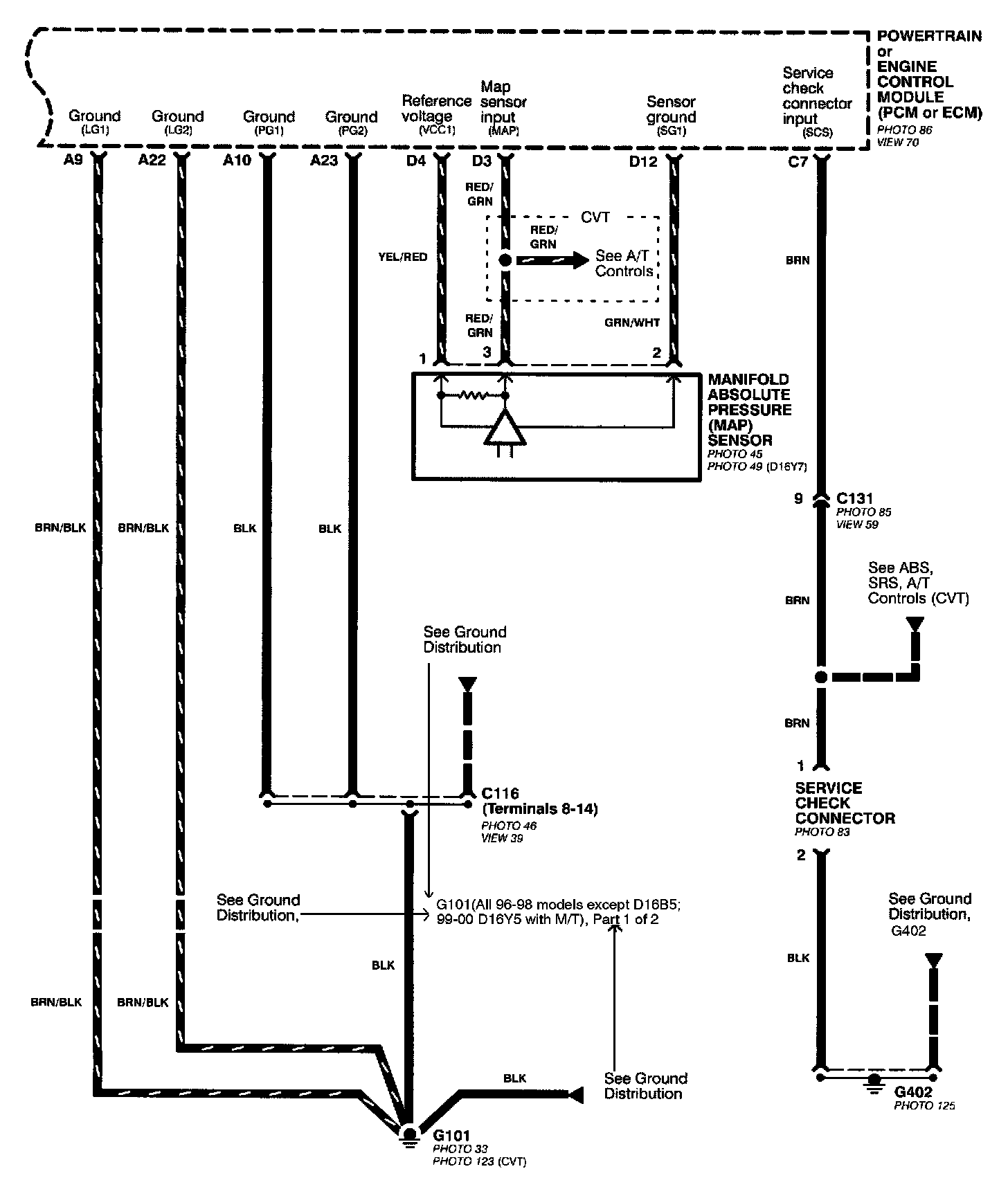

Part 8 (All 96-98 Models Except D16B5; 99-00 D16Y5 With M/T):





Part 9 D16Y5:





Part 10 D16Y5:





Part 11 D16Y5:
