Schematic Diagrams

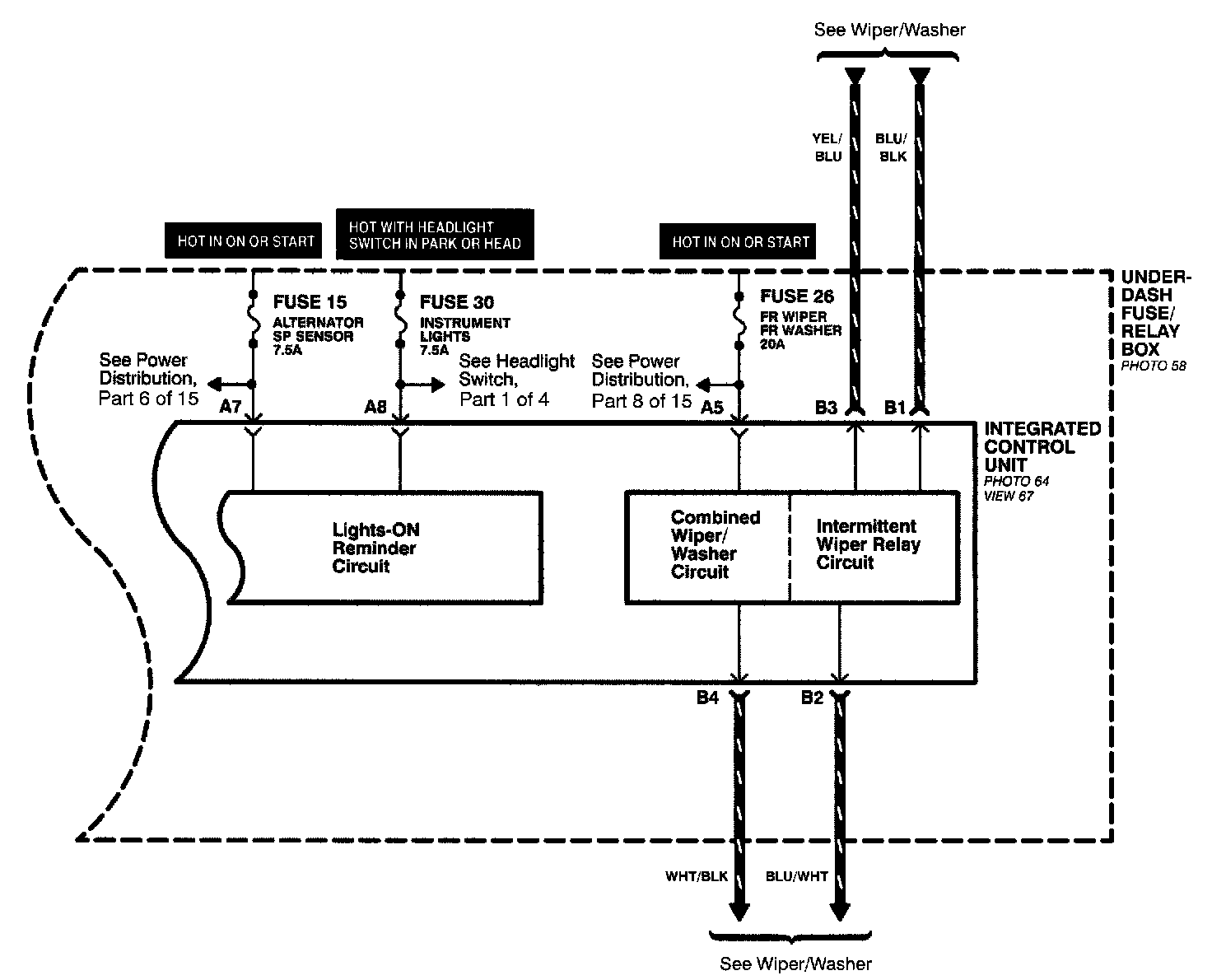

Integrated Control Unit Part 1 0f 2:

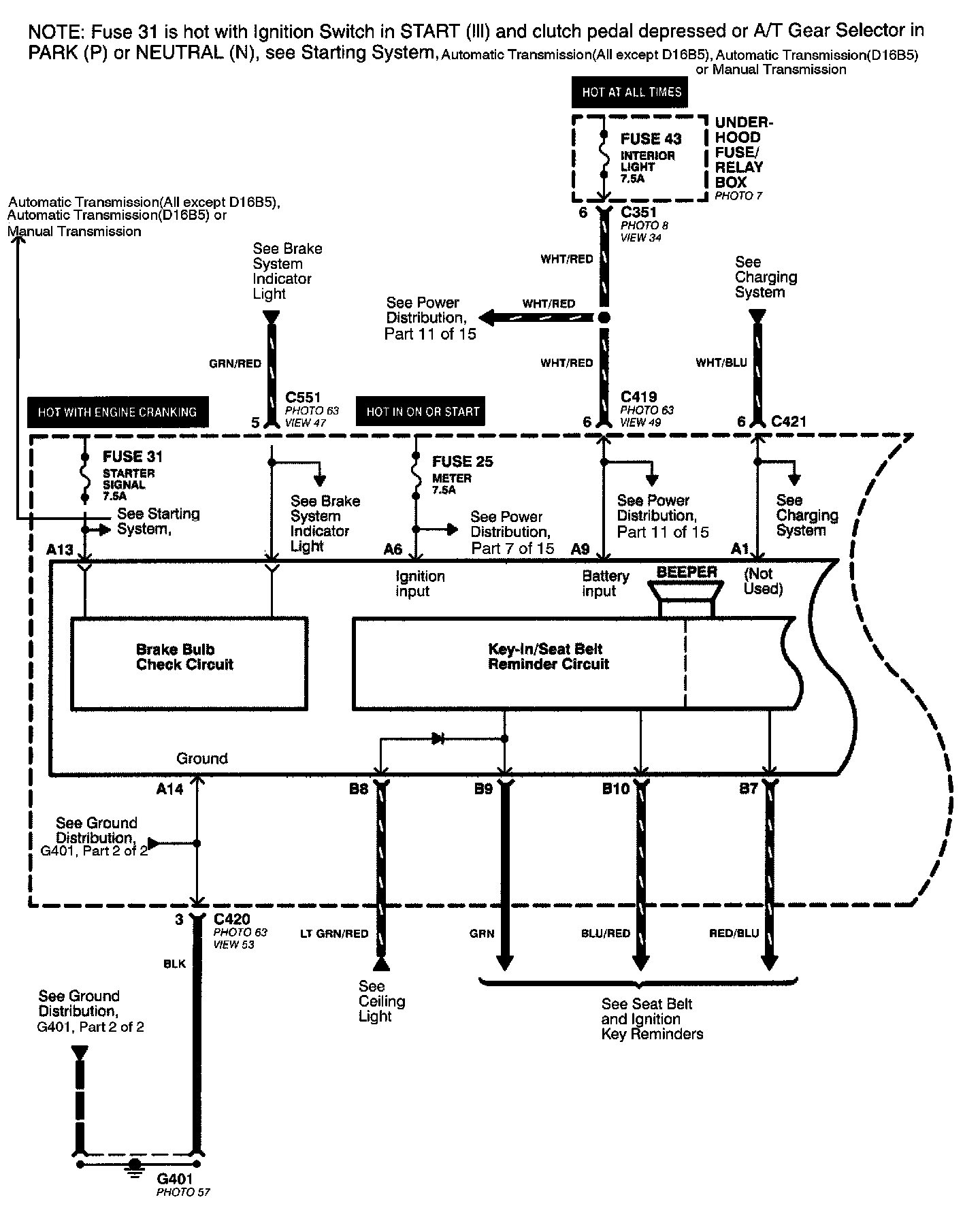

Integrated Control Unit Part 2 0f 2:

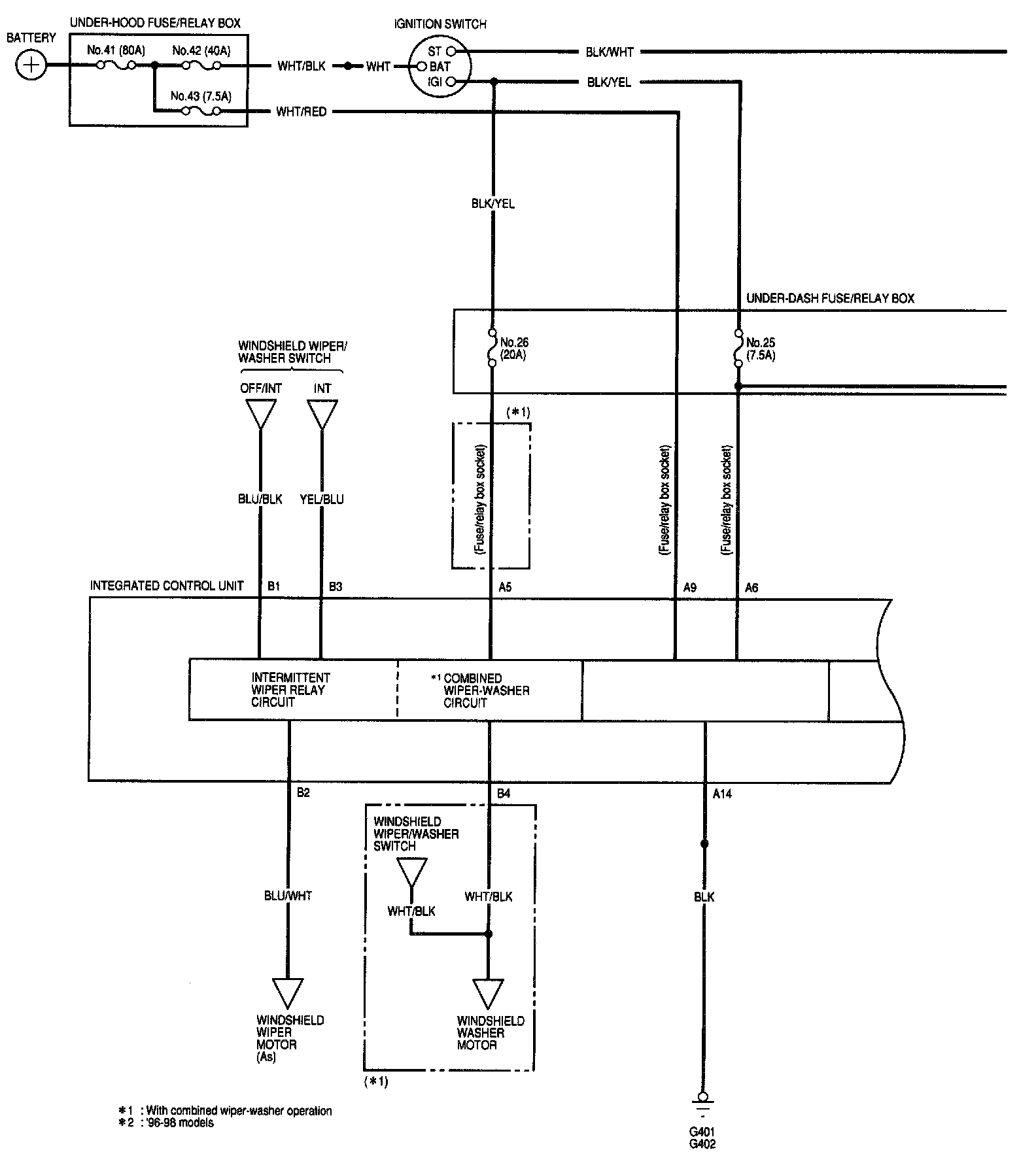

Integrated Control Unit (Part 1 Of 2):

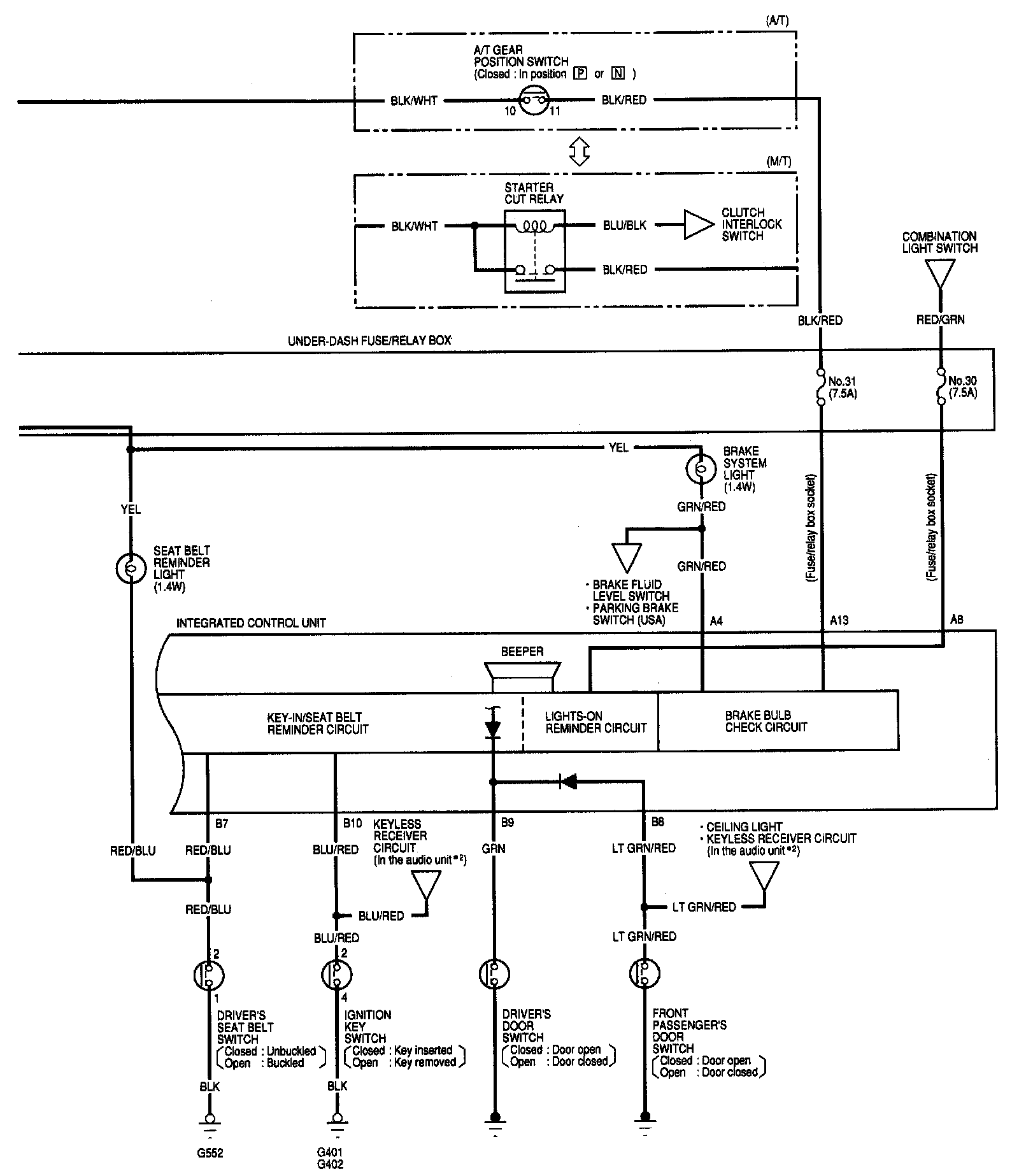

Integrated Control Unit (Part 2 Of 2):
