Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Schematics

Schematics

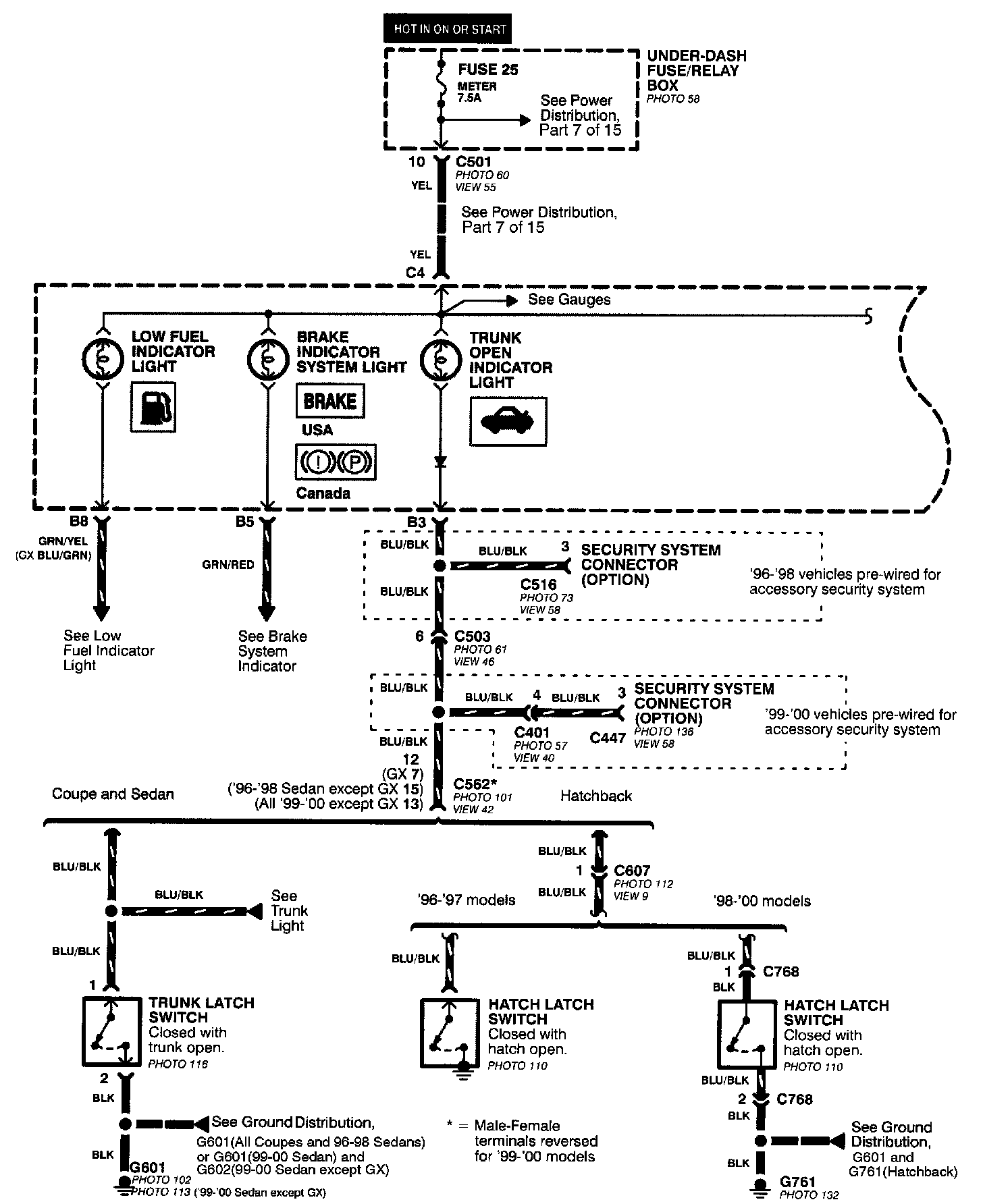

Part 1 0f 4:

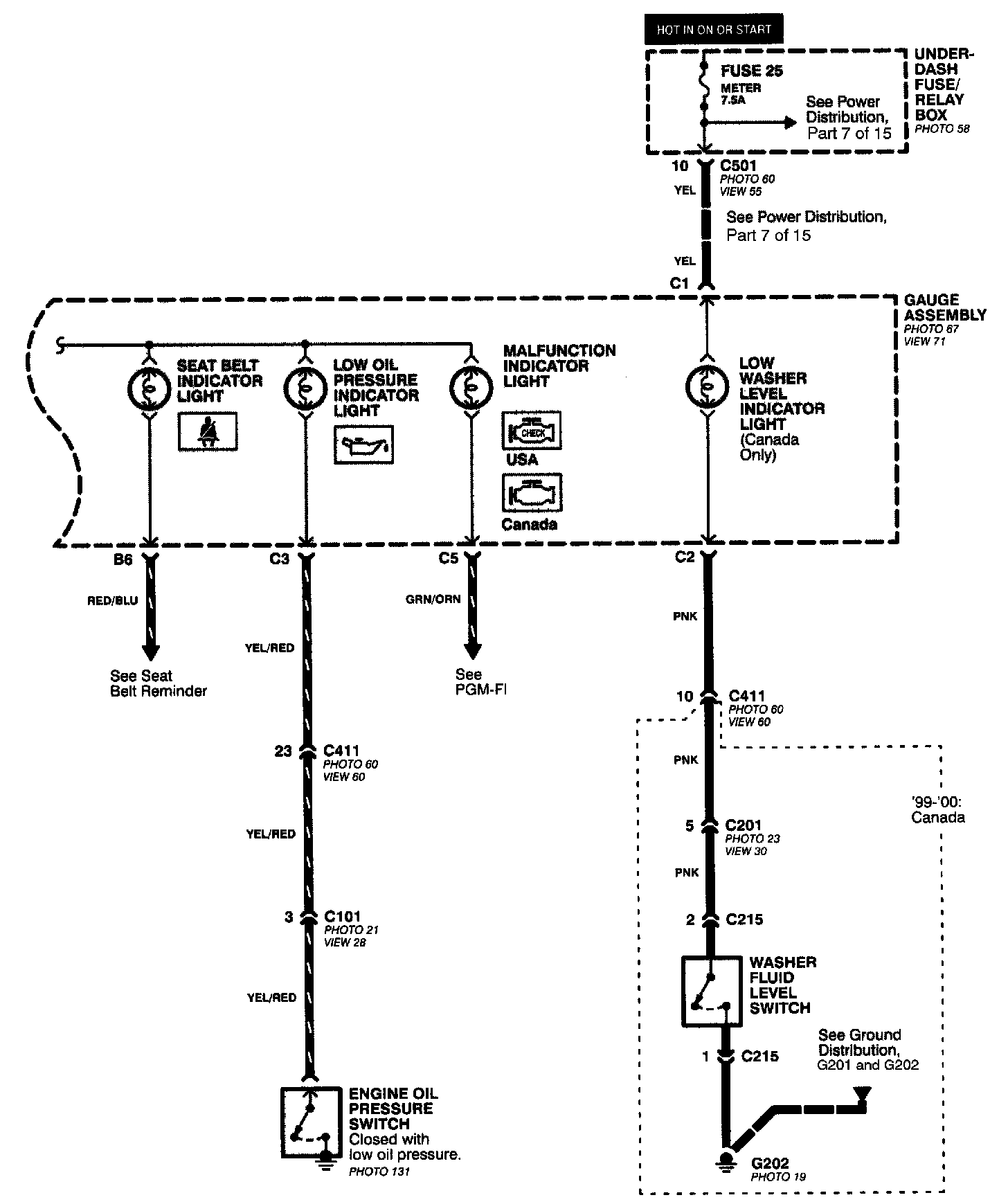

Part 2 0f 4:

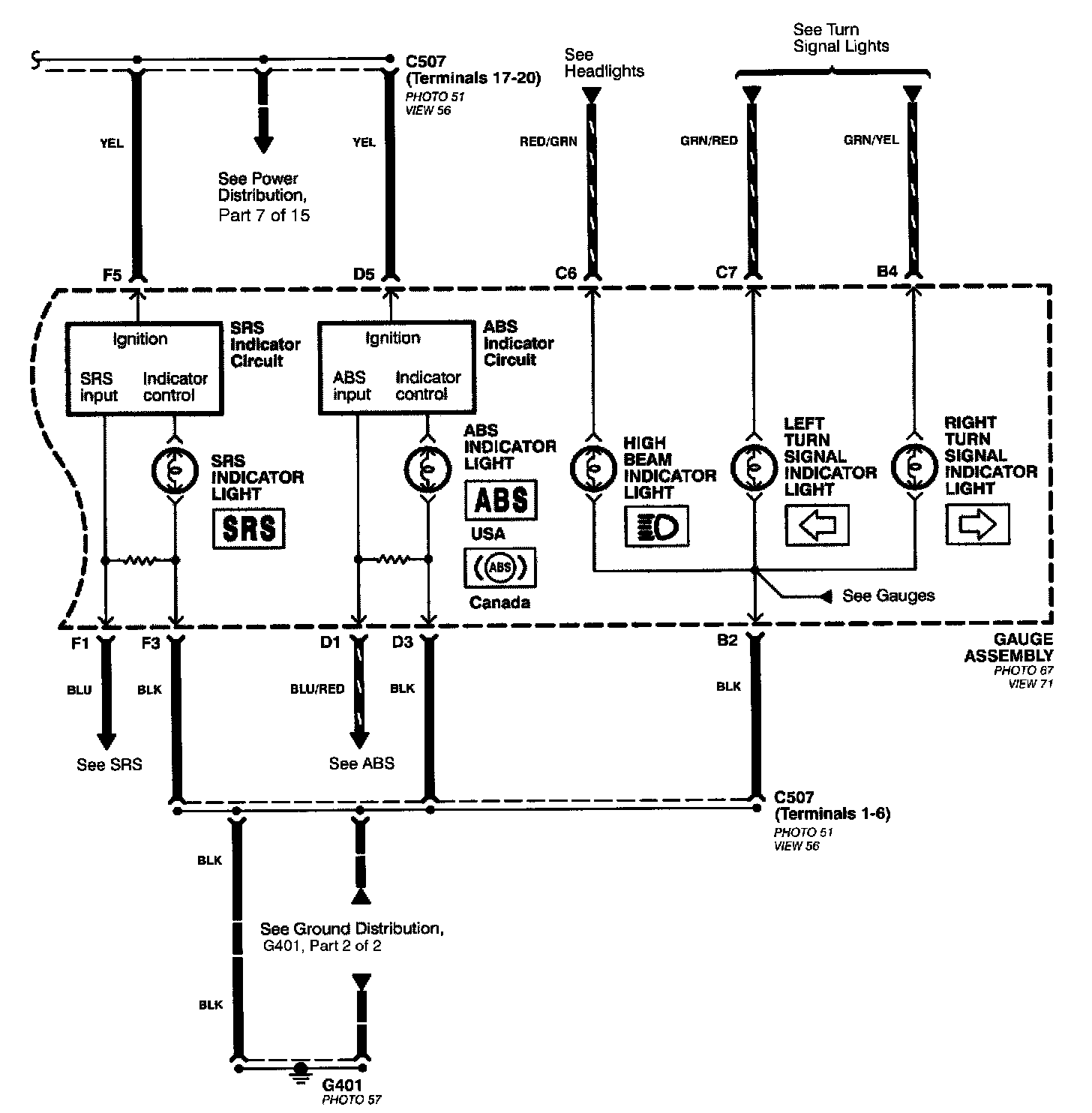

Part 3 0f 4:

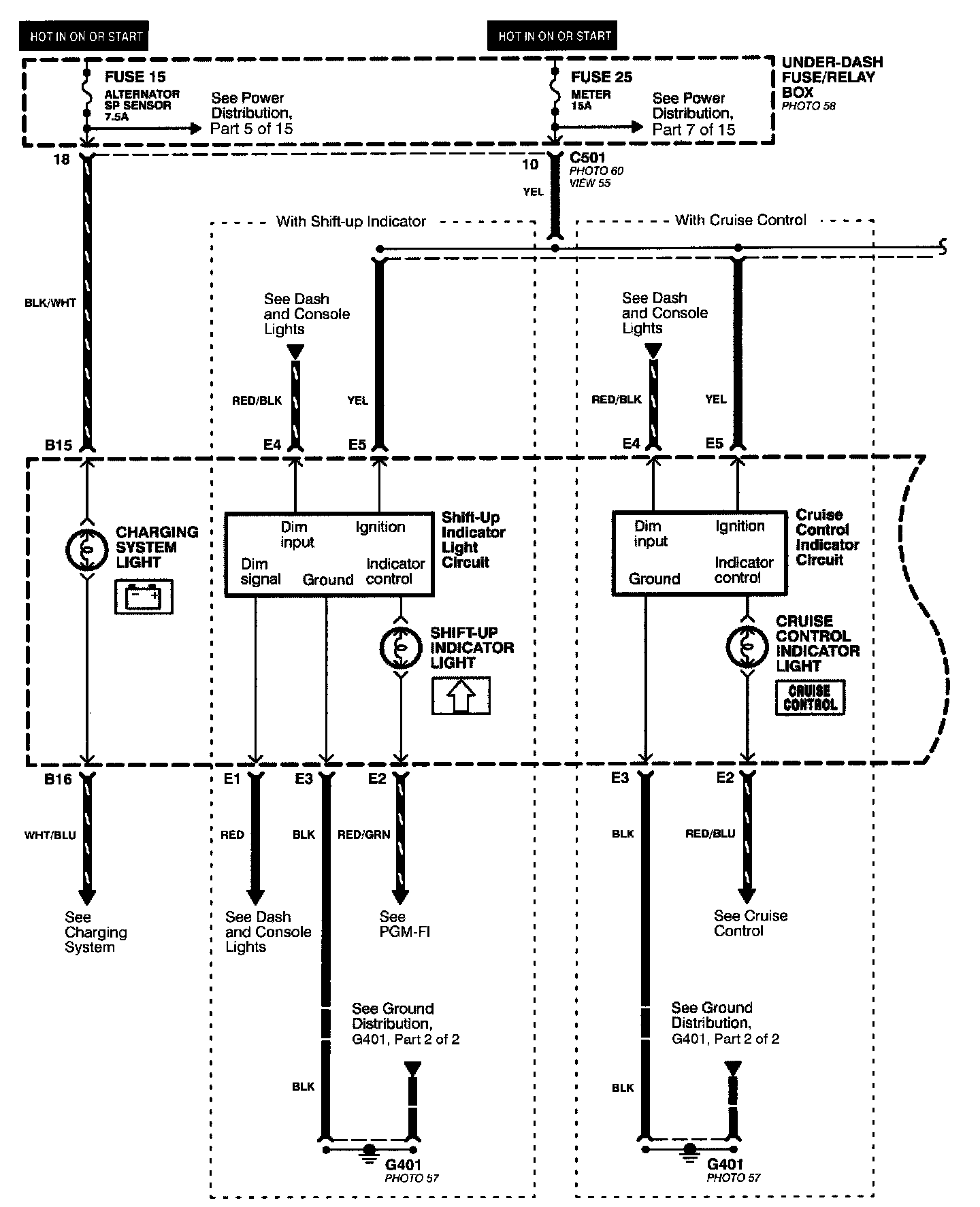

Part 4 0f 4:
