Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> System Diagram >> All 96-98 models except D16B5

All 96-98 models except D16B5

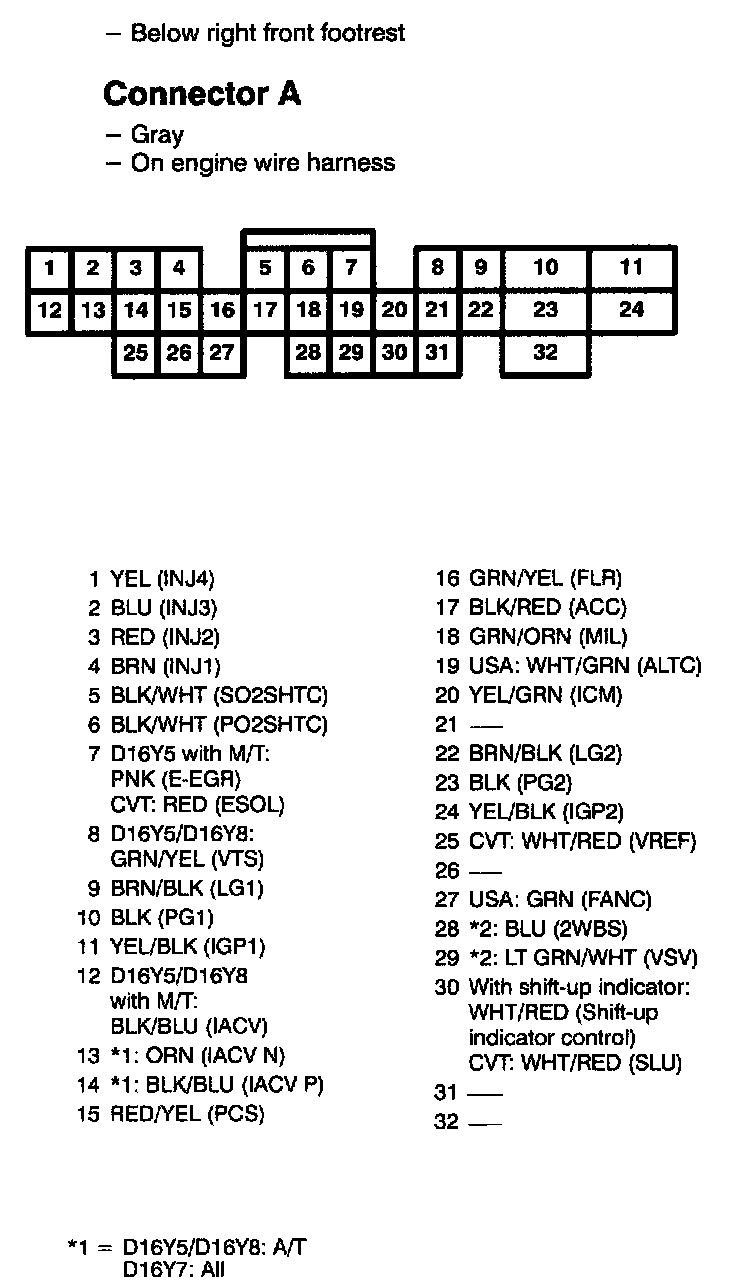

Part 1 Of 4:

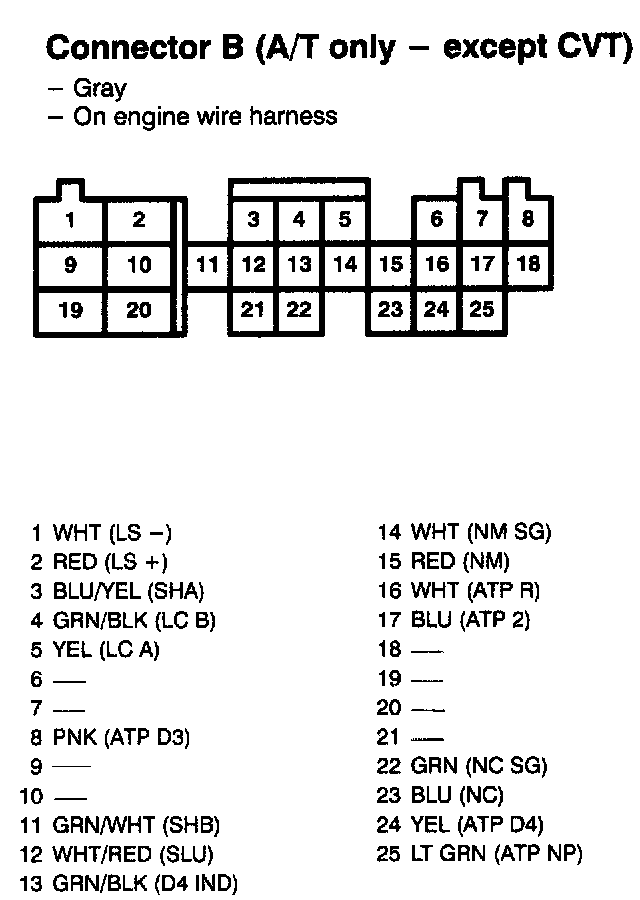

Part 2 Of 4:





Part 3 Of 4:





Part 4 Of 4:
