Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Control Module >> Keyless Door Lock Control Unit (USA Only)

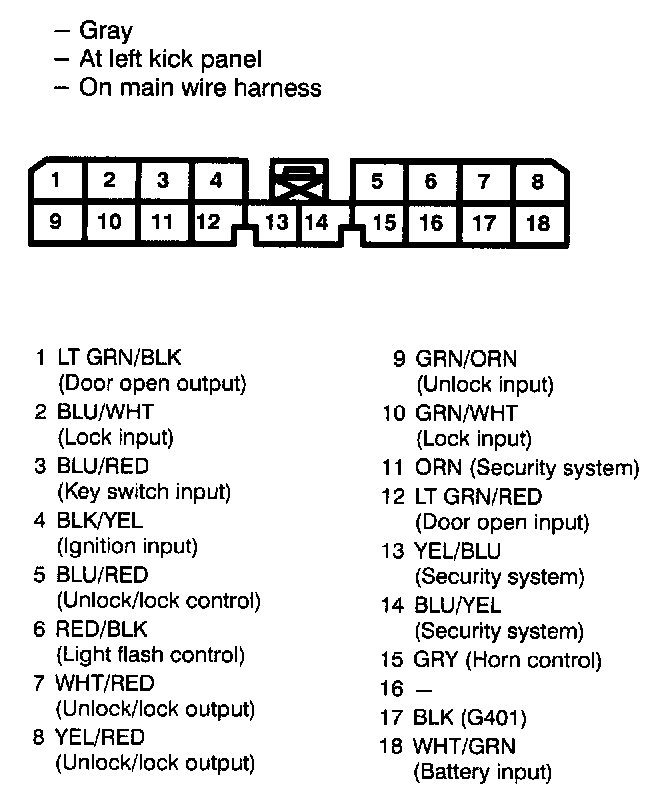

Keyless Door Lock Control Unit (USA Only)

Keyless Door Lock Control Unit (USA Only):
