Replacement

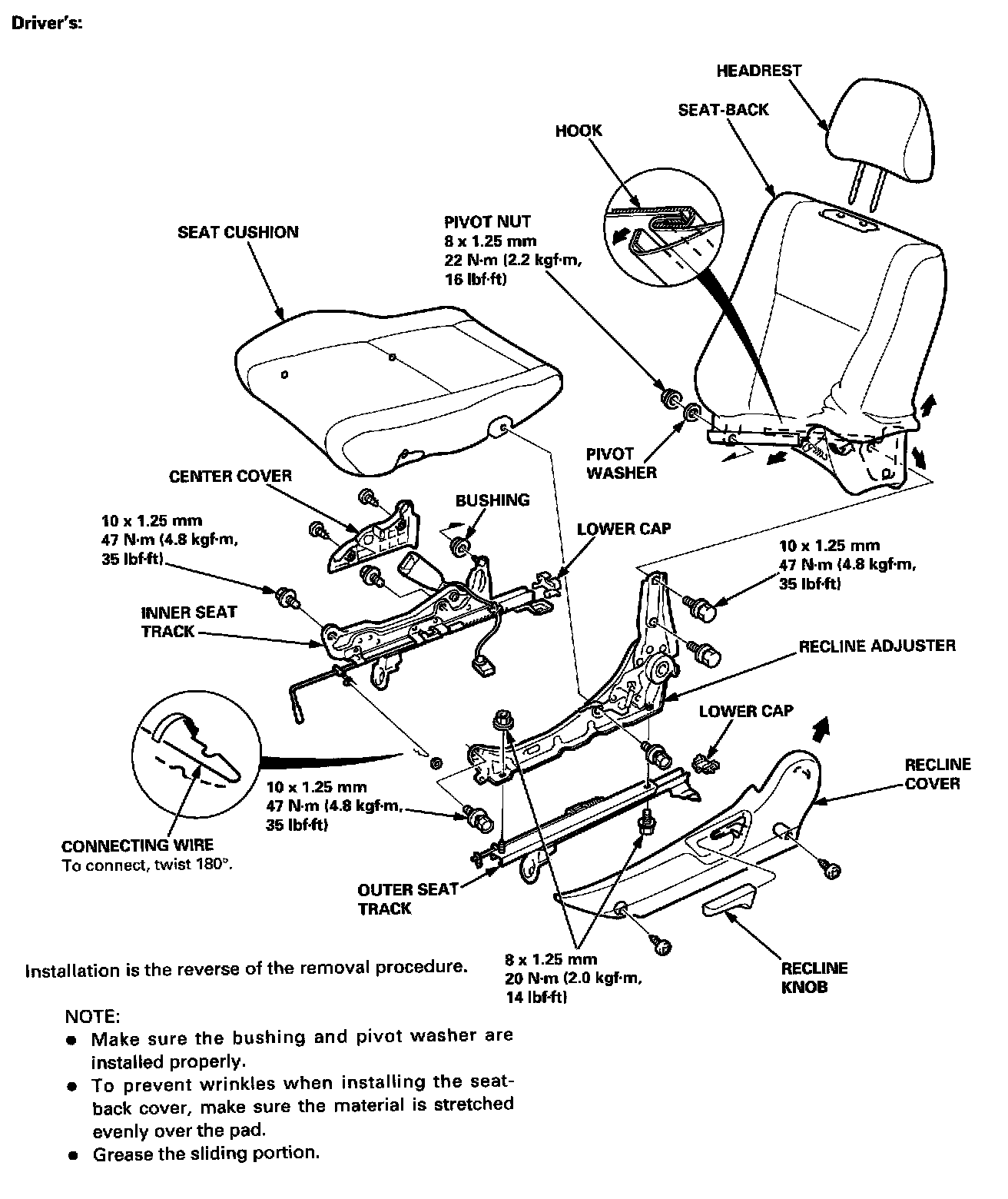

Driver's:

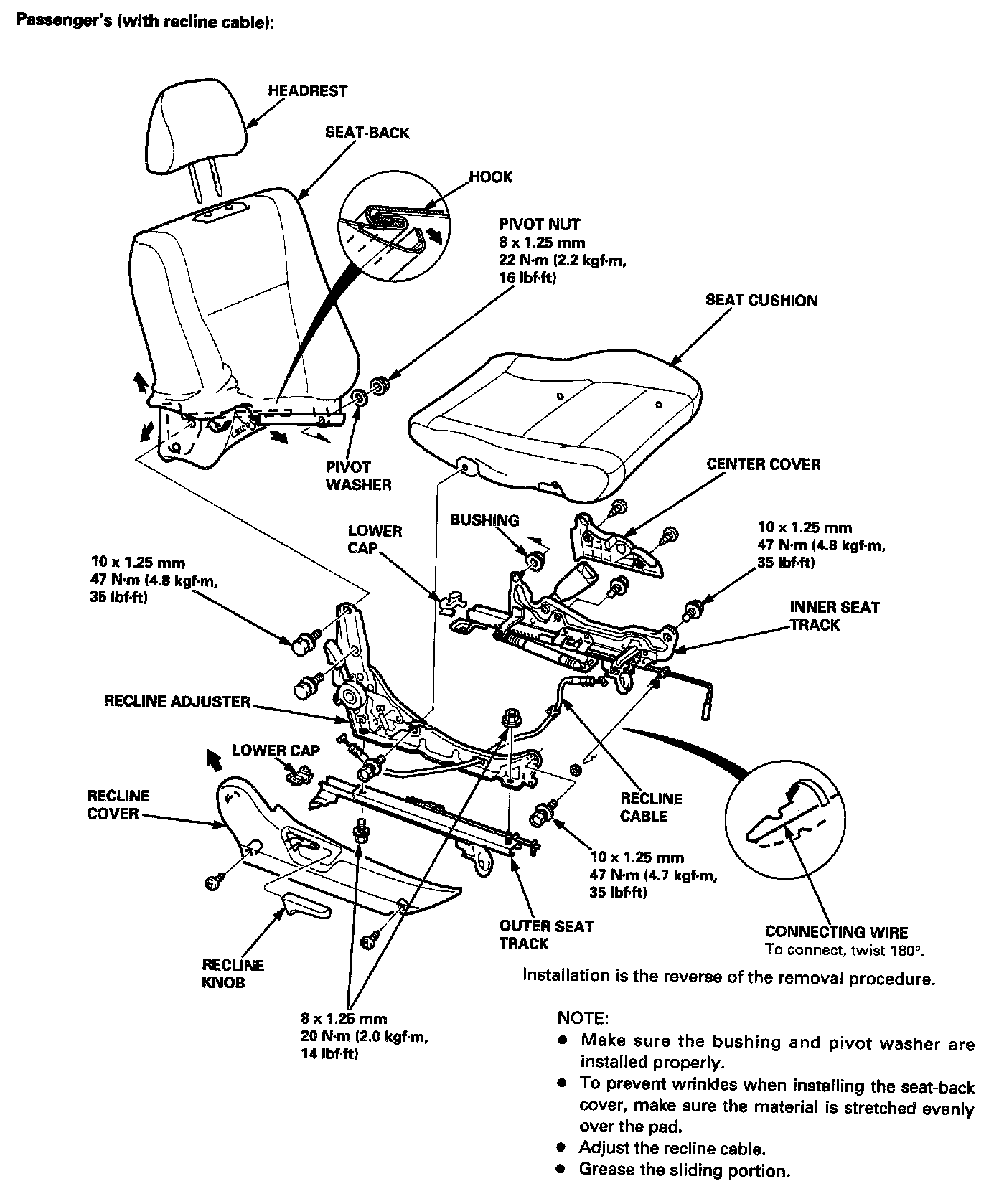

Passenger's (With Recline Cable):






CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

NOTE:
- Take care not to scratch the seat covers and body.
- Remove the front seat through the door opening.
