Front Seat

CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

NOTE: Take care not to scratch the seat covers and body.

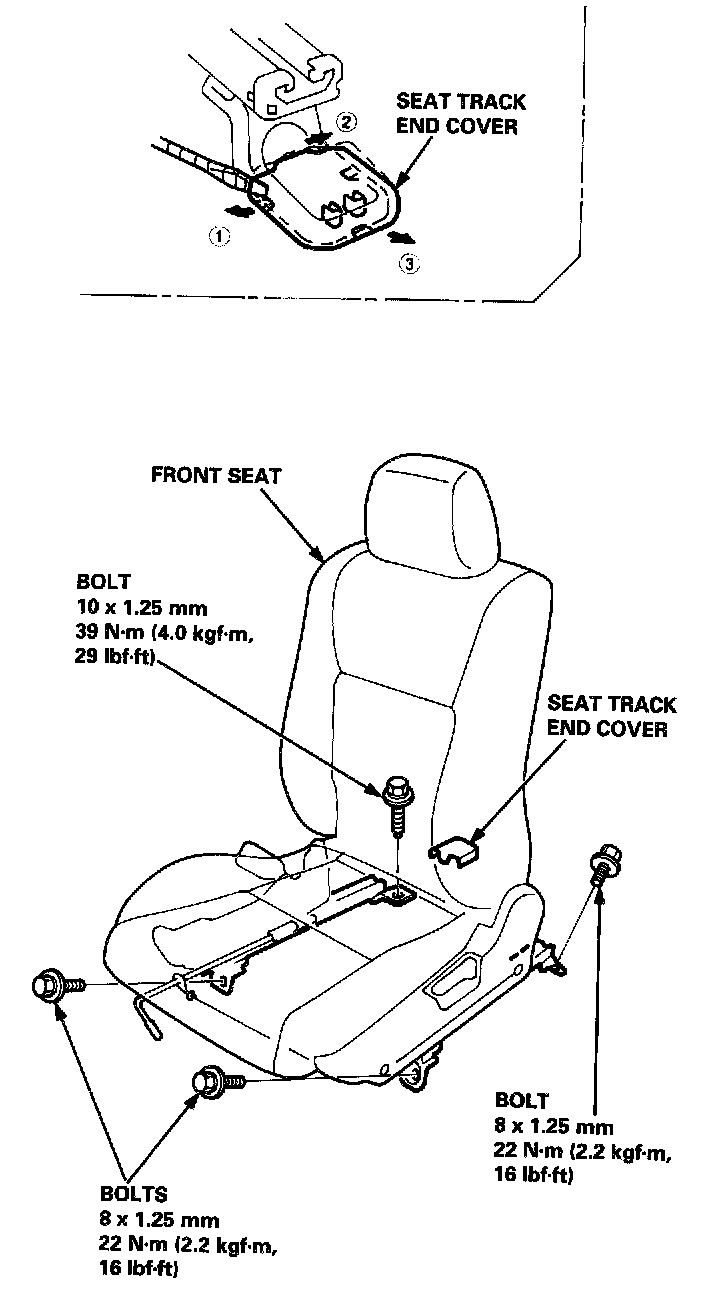

1. Remove the seat track end cover, then remove the bolts.

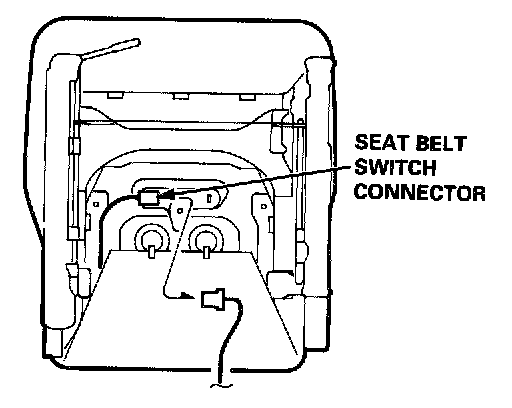

2. Lift the driver's front seat, then disconnect the seat belt switch connector.
3. Remove the headrest.
4. Carefully remove the front seat through the door opening.
5. Installation is the reverse of the removal procedure.

NOTE: Make sure the connector is connected properly.
