Power Mirror Motor: Testing and Inspection

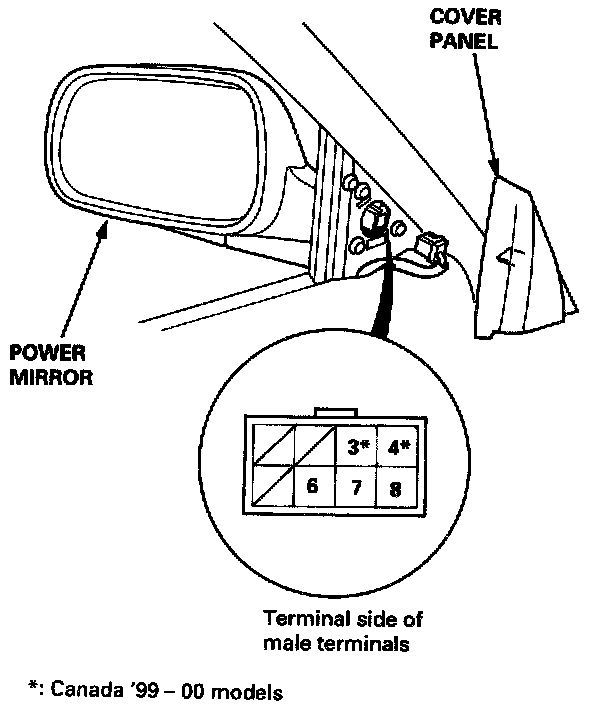

1. Pry out the cover panel.
2. Disconnect the 8P connector from the power mirror.

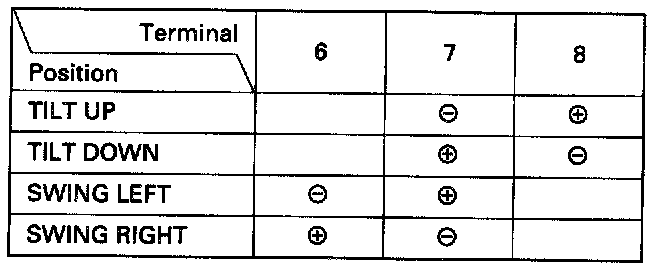

3. Check actuator operation by connecting power and ground according to the tables.

Defogger Test:
4. Check for continuity between the No.3 and No.4 terminals of the 8P connector.
There should be continuity.
