Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Without Defogger

Without Defogger

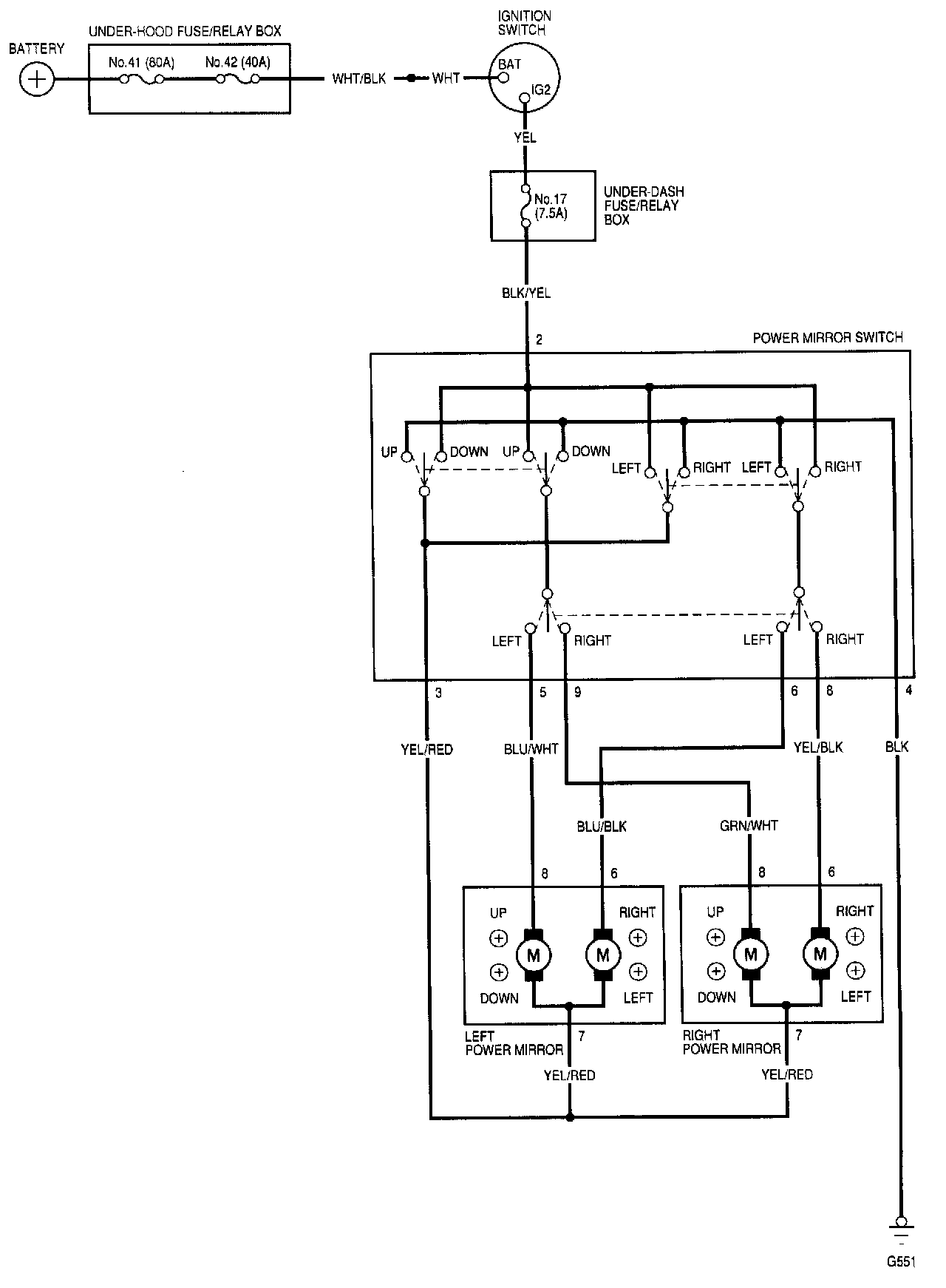

Power Mirrors (Without Defogger):

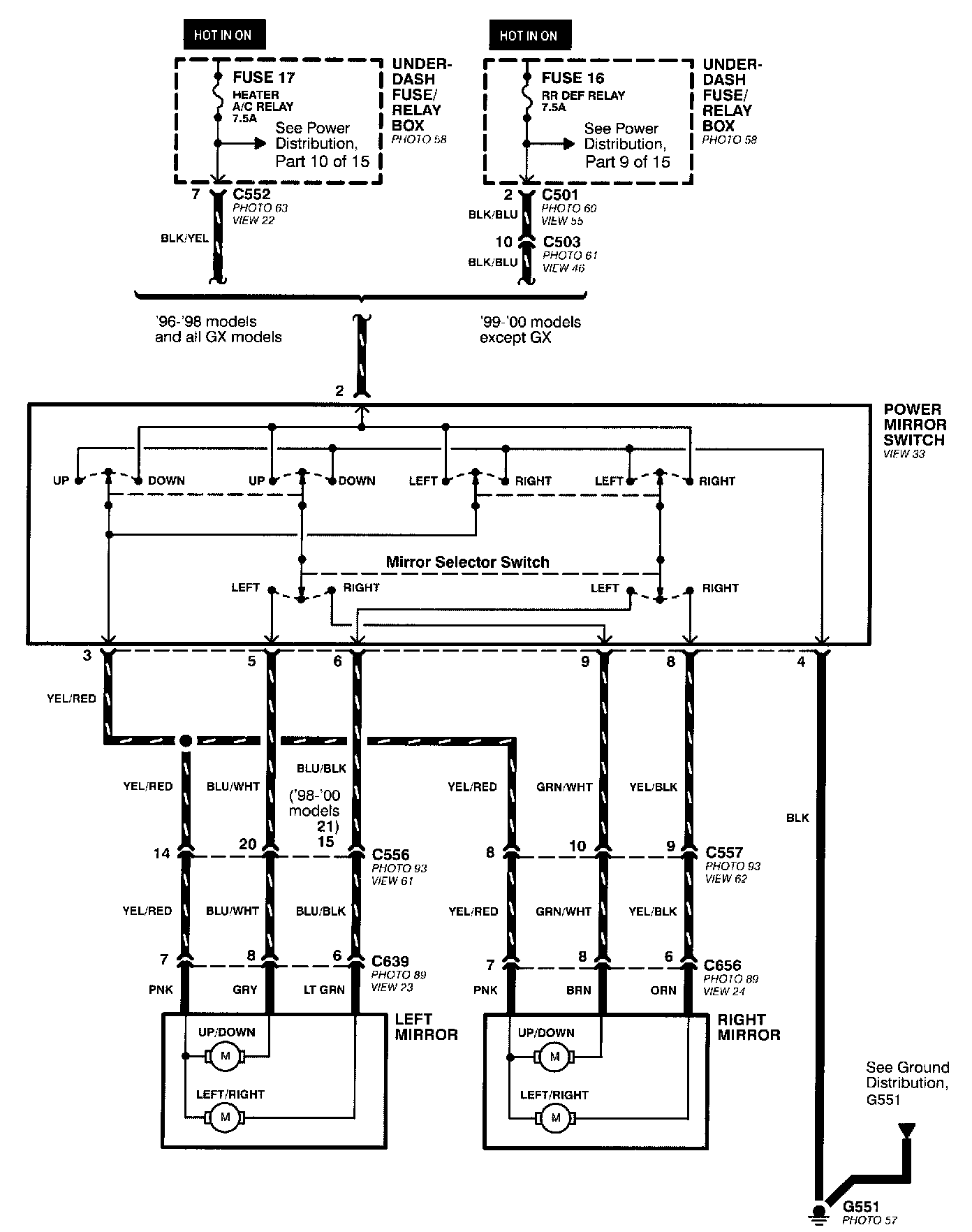

Power Mirrors (Without Defogger):
