Component Tests and General Diagnostics

Keyless Receiver Unit Input Test

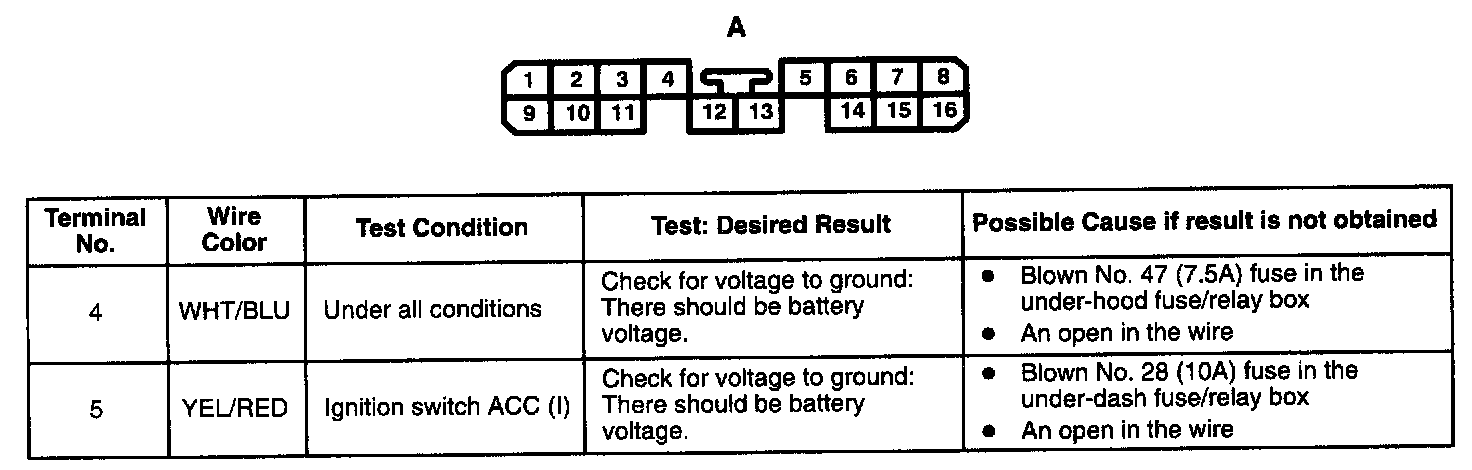

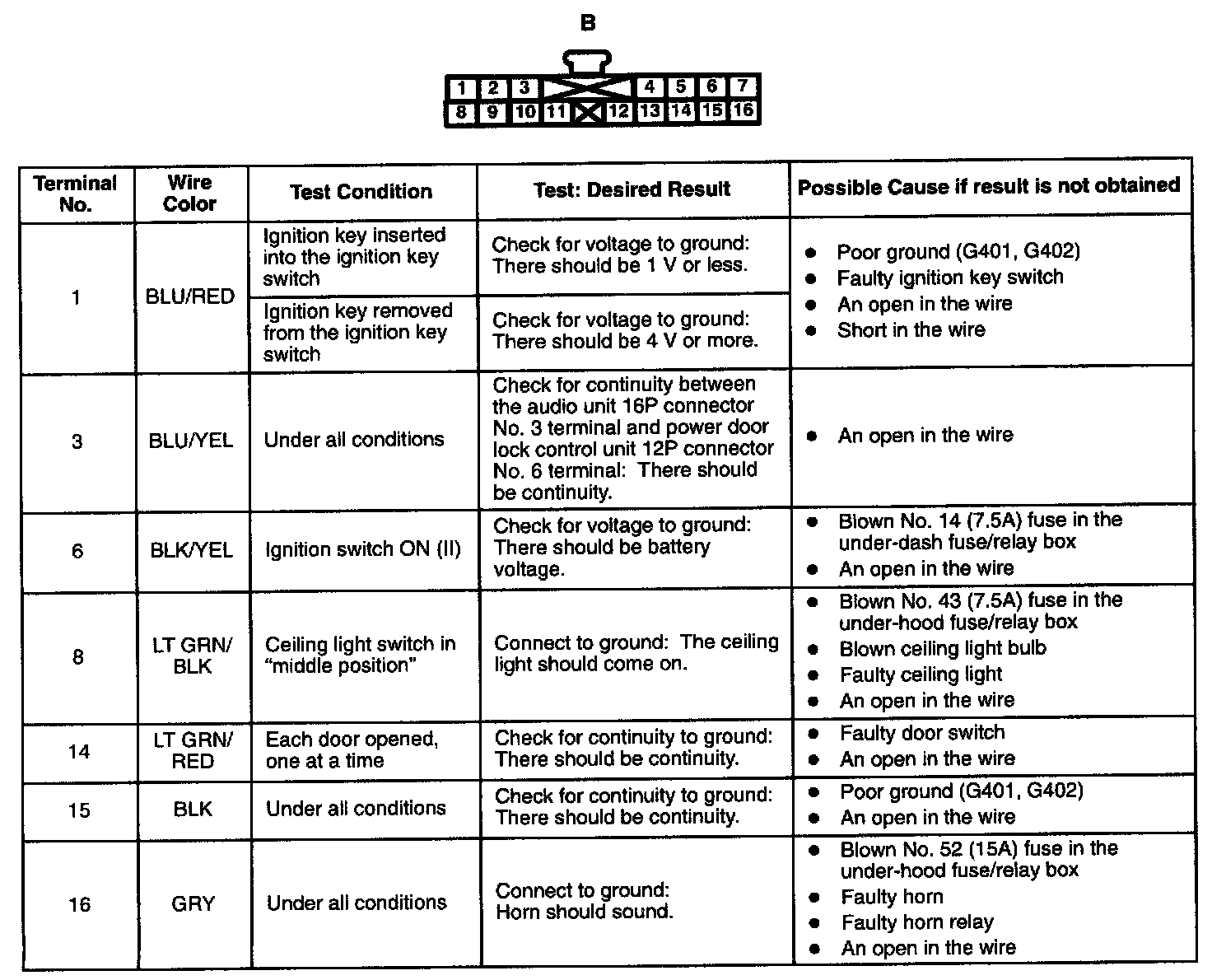

The following tests are performed with A (Main) and B (Keyless) disconnected from the audio unit.

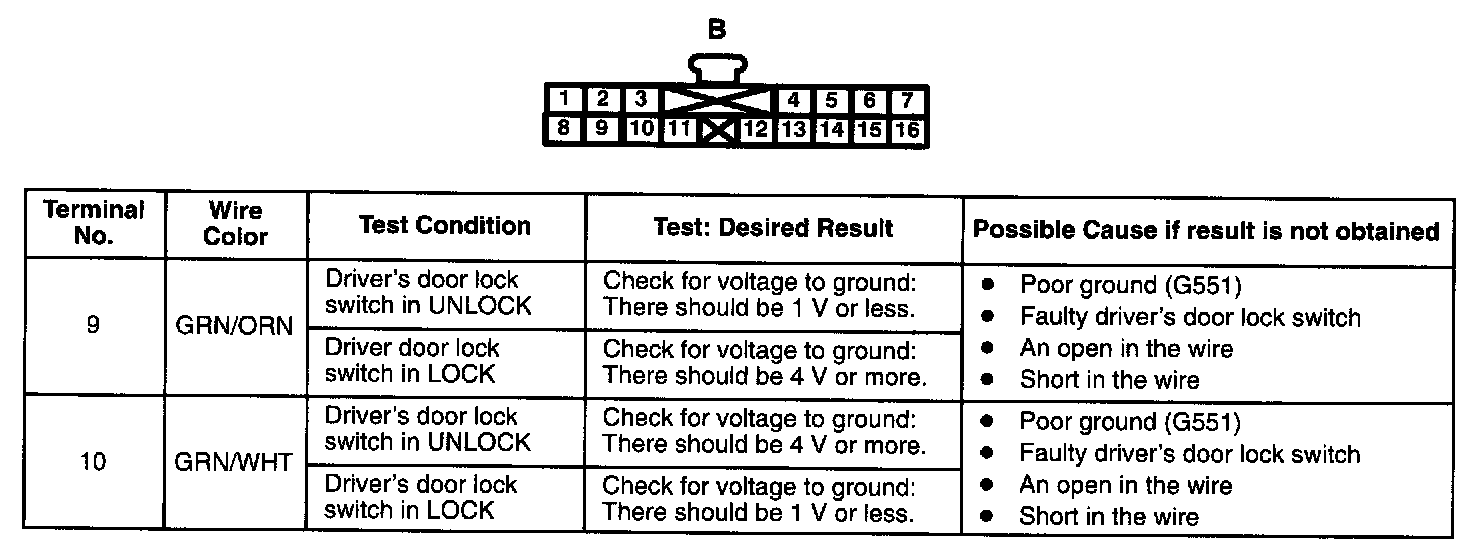

The following tests are performed with A (Main) reconnected to the audio unit.

Keyless Door Lock Control Unit Input Test

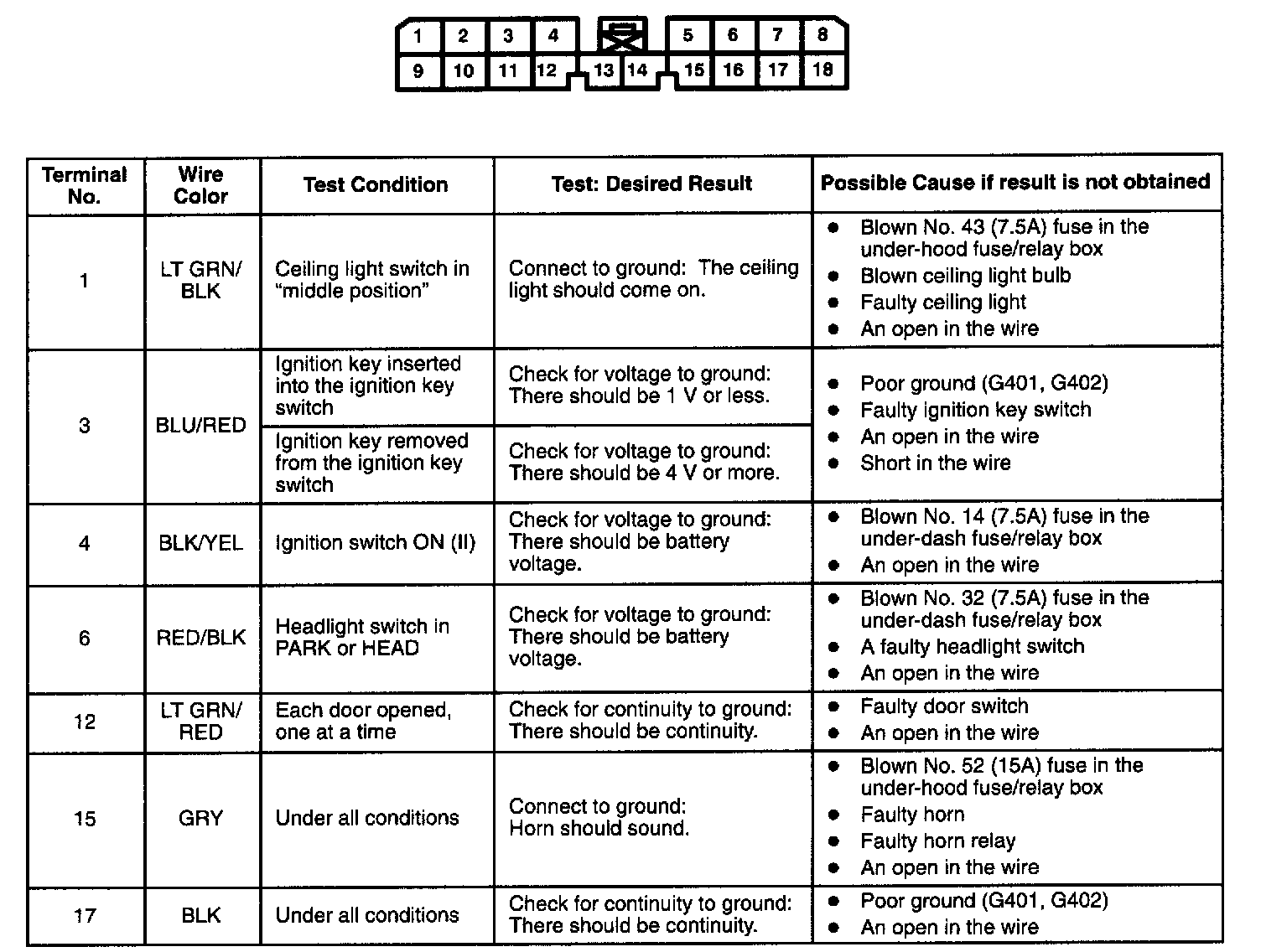

The following tests are performed with the keyless door lock control unit connector disconnected.
