Civic Coupe L4-1.6L SOHC (VTEC-E)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
With Keyless Entry
With Keyless Entry

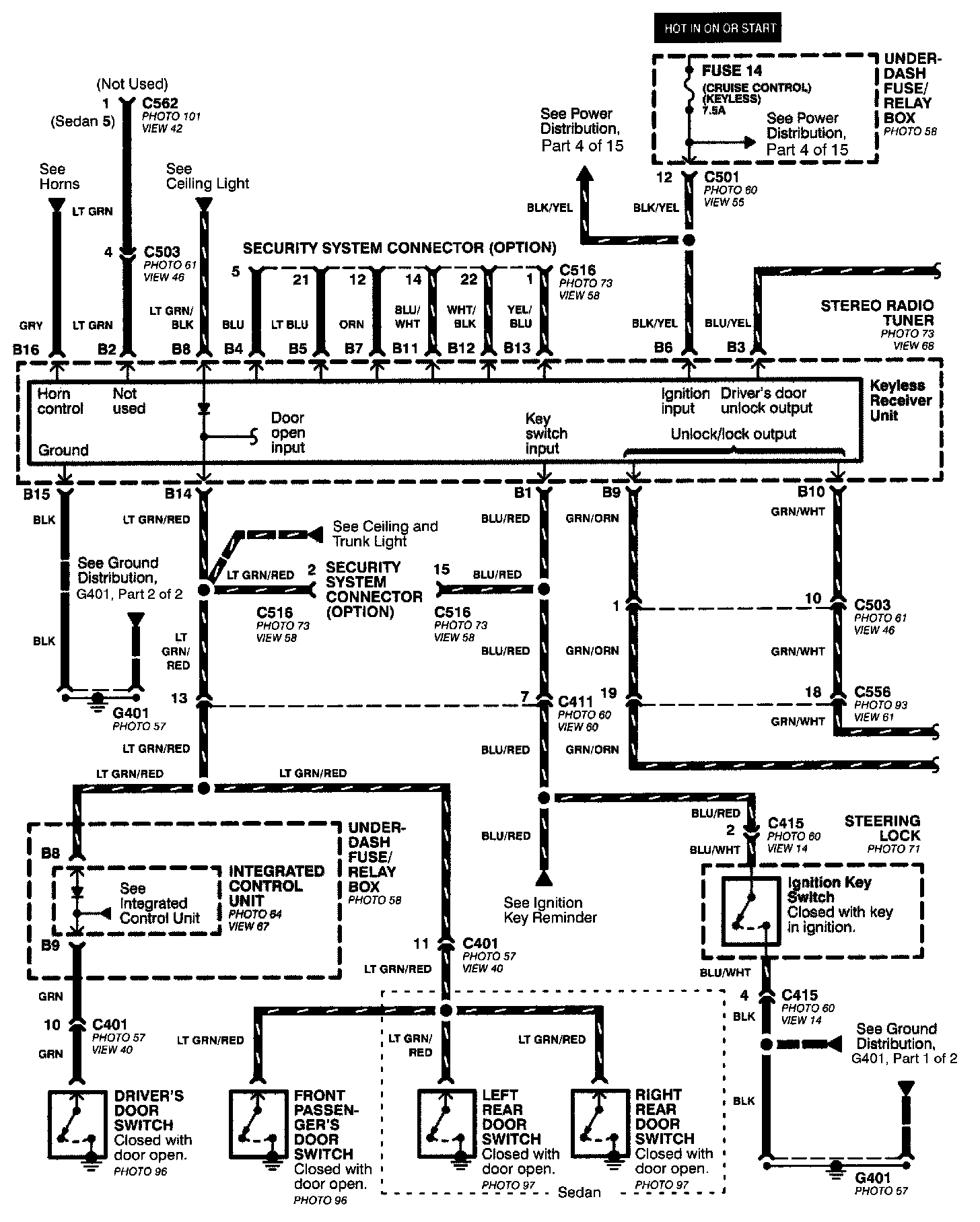

Part 1 of 2:

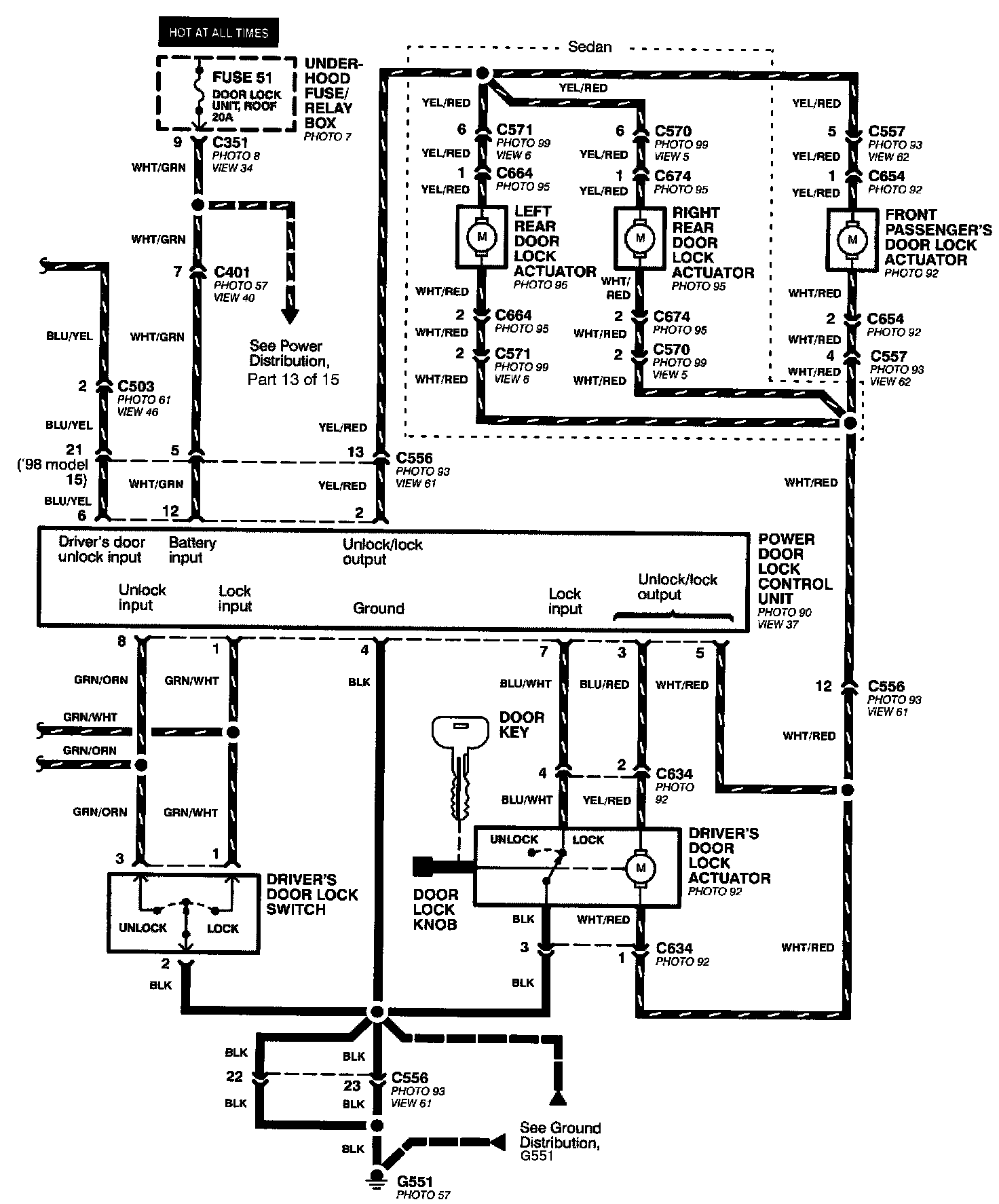

Part 2 of 2:

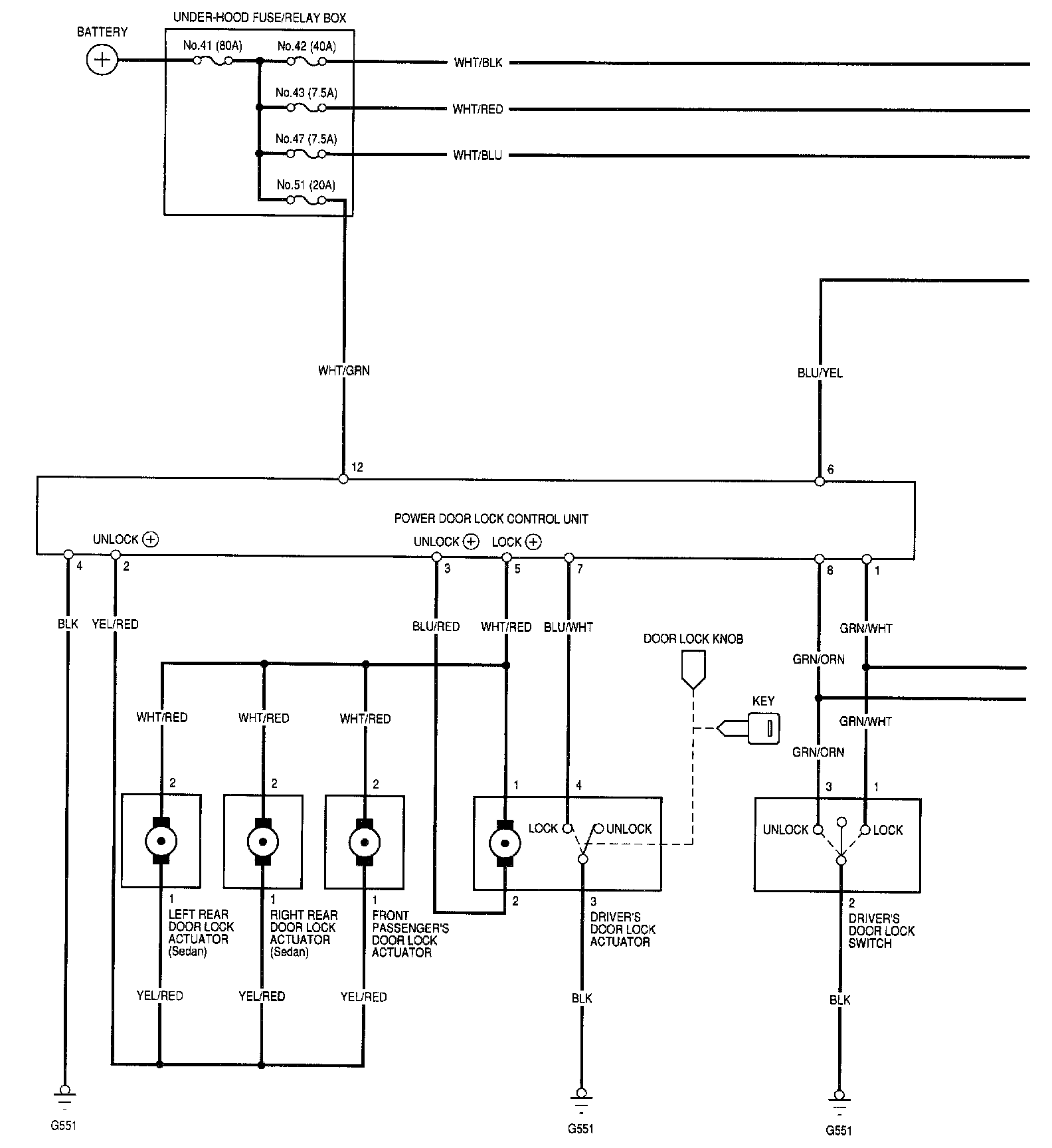

Power Door Locks (With Keyless Entry System) - Part 1 Of 2:
Power Door Locks (With Keyless Entry System) - Part 2 Of 2:
