Interior Moulding / Trim: Service and Repair

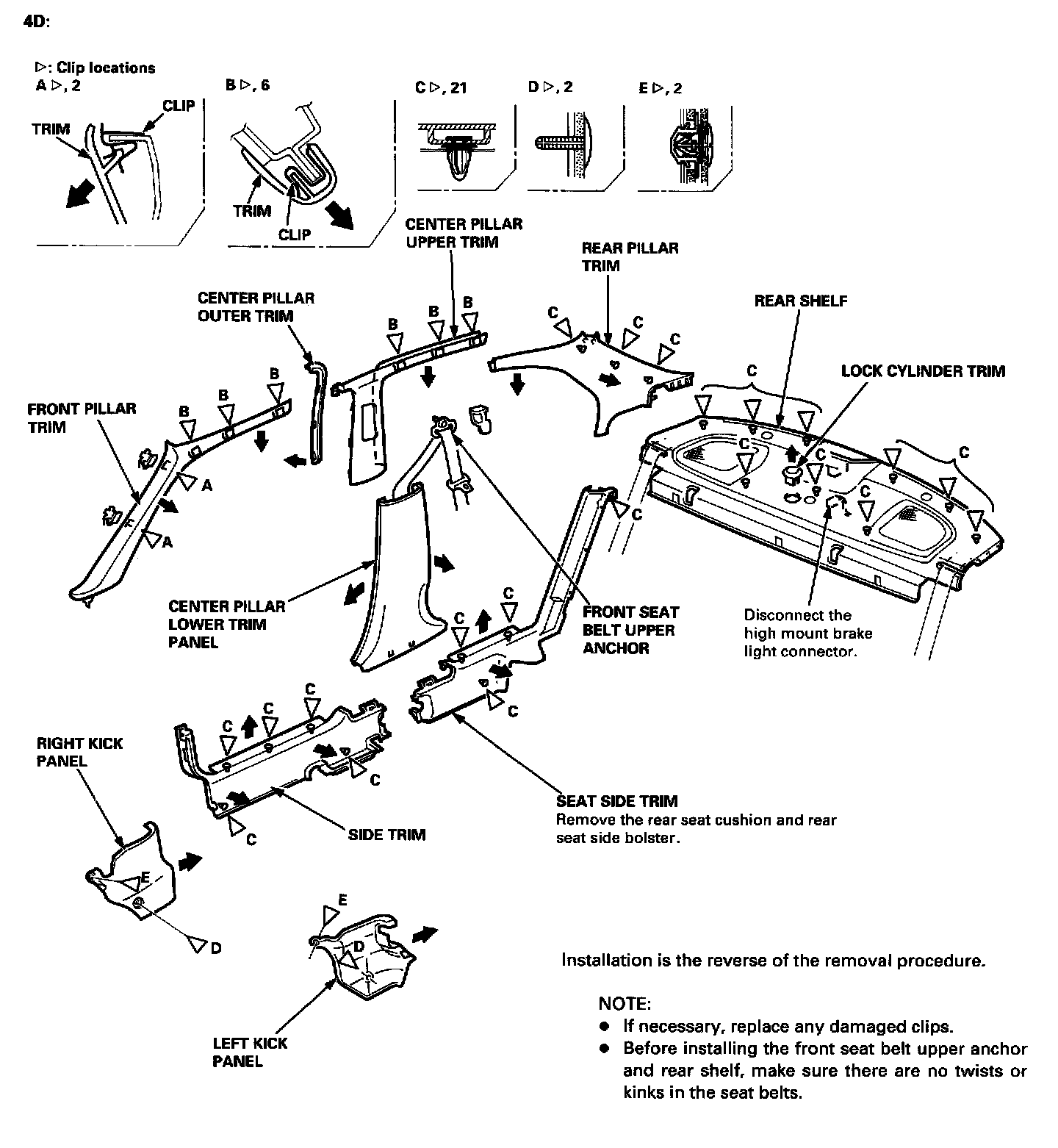

4 Door:

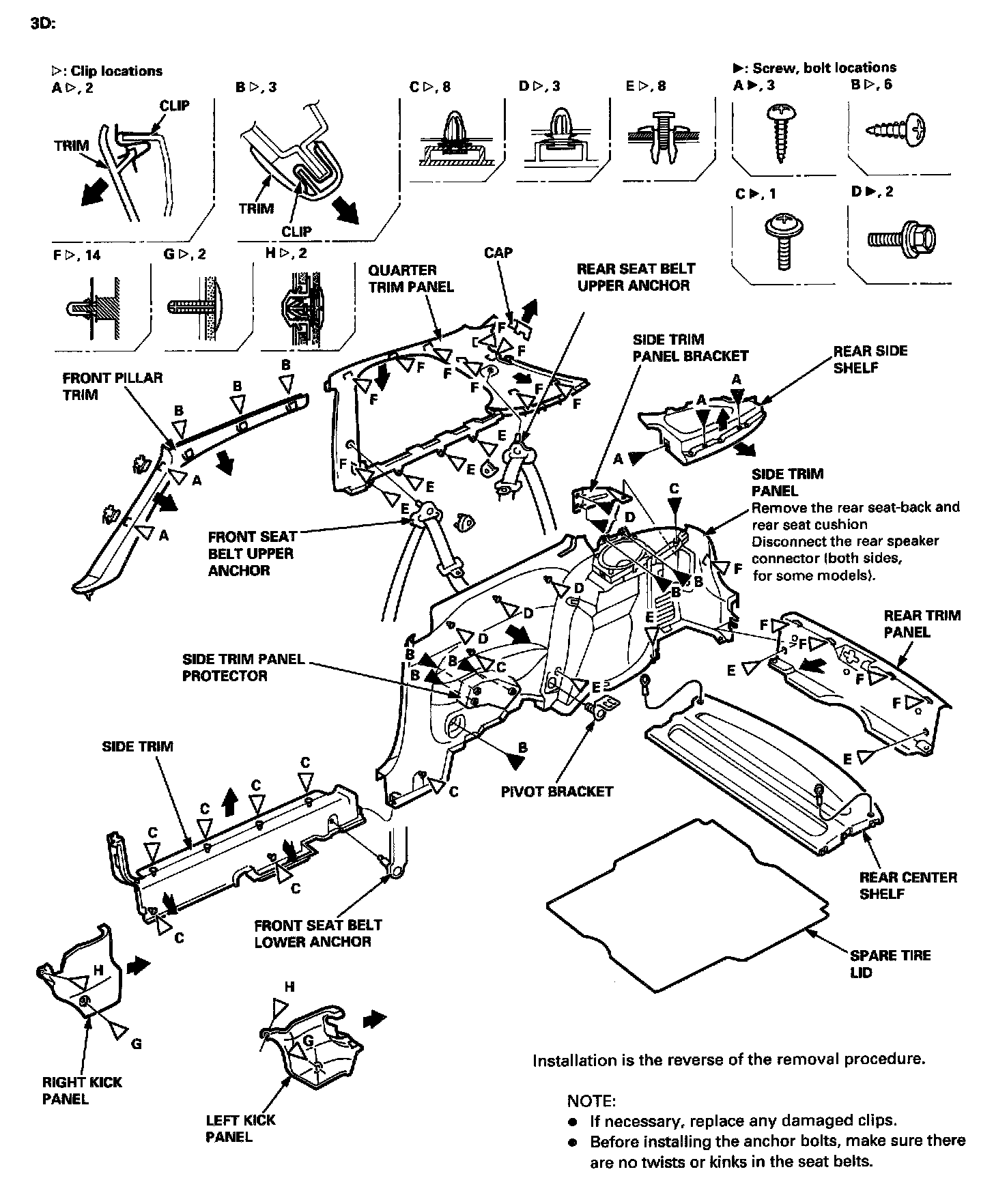

3 Door:

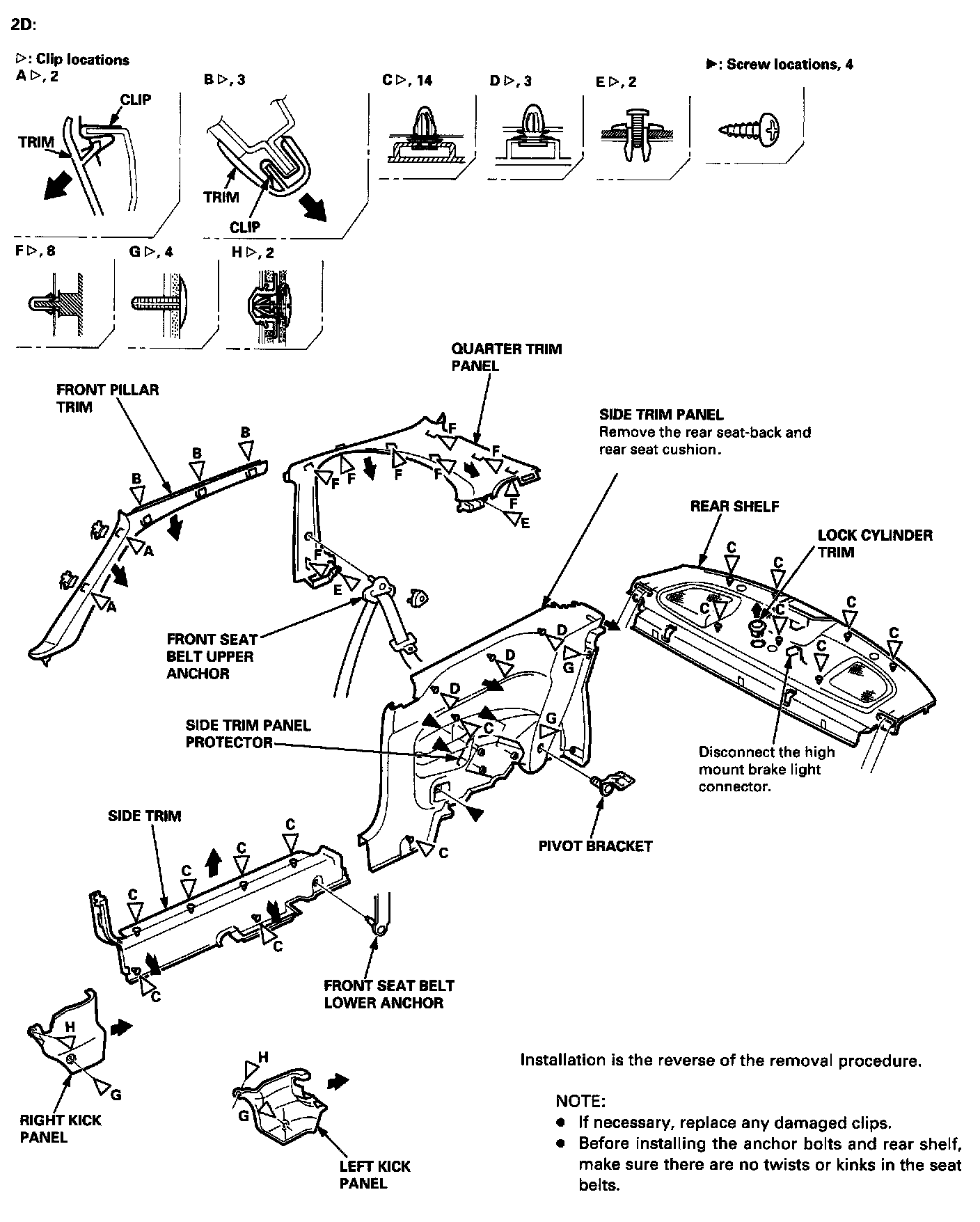

2 Door:






CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

NOTE: Take care not to bend or scratch the trim and panels.
