Exterior Moulding / Trim: Service and Repair

CAUTION: Put on gloves to protect your hands.

NOTE: Take care not to scratch the trunk lid/hatch.

1. Remove the license plate.
2. 3D: Remove the hatch trim panel.

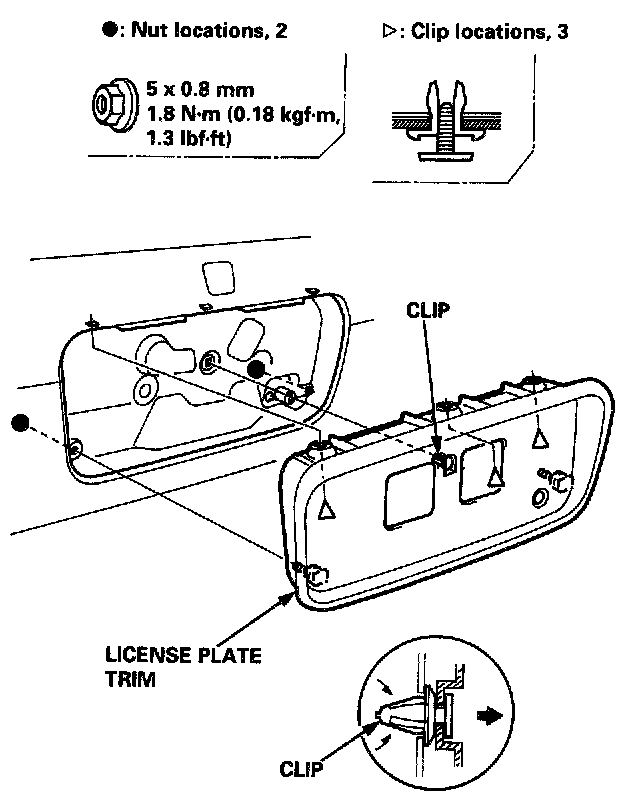

3. Remove the nuts and clips, and detach the clip, then remove the license plate trim.

NOTE: Take care not to drop the nuts inside the trunk lid/hatch.

4. Installation is the reverse of the removal procedure.

NOTE: If necessary, replace any damaged clips.
