Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Service and Repair

Hood: Service and Repair

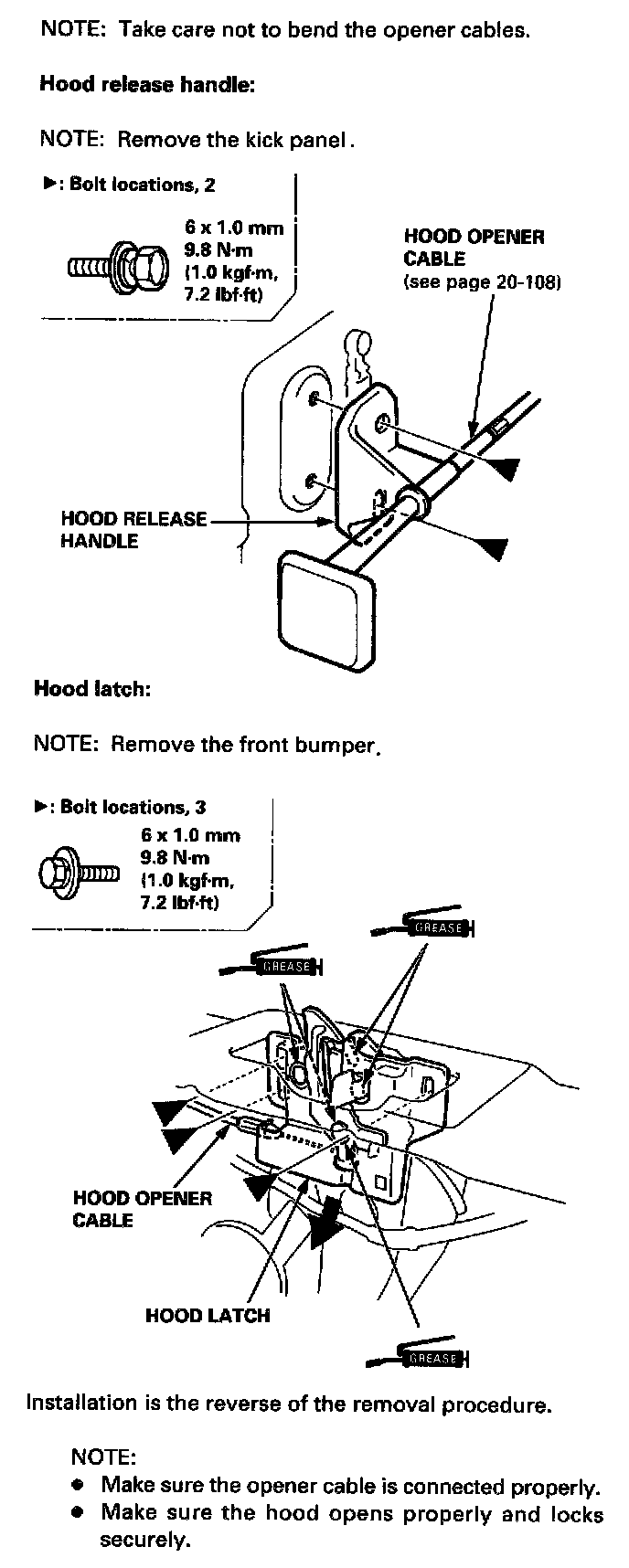

Hood Release Handle/Hood Latch:

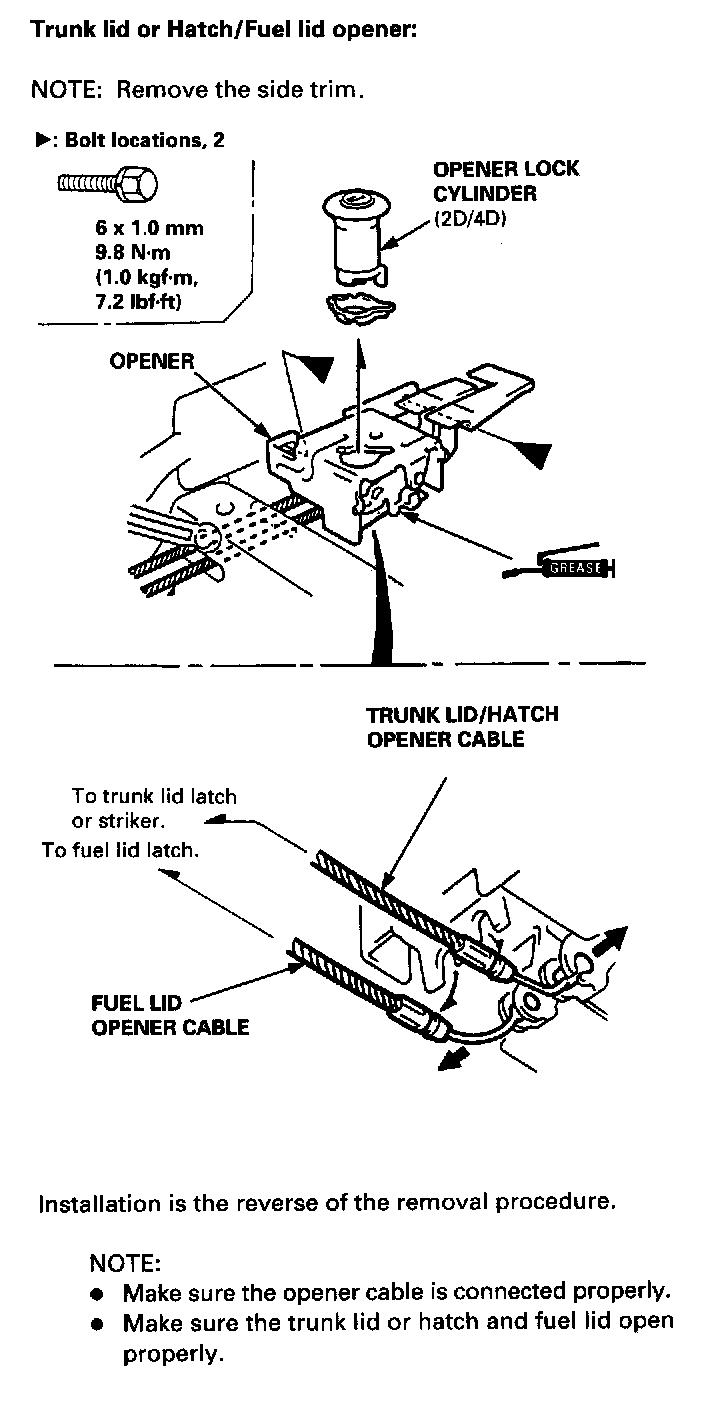

Trunk Lid Of Hatch/Fuel Lid Opener:

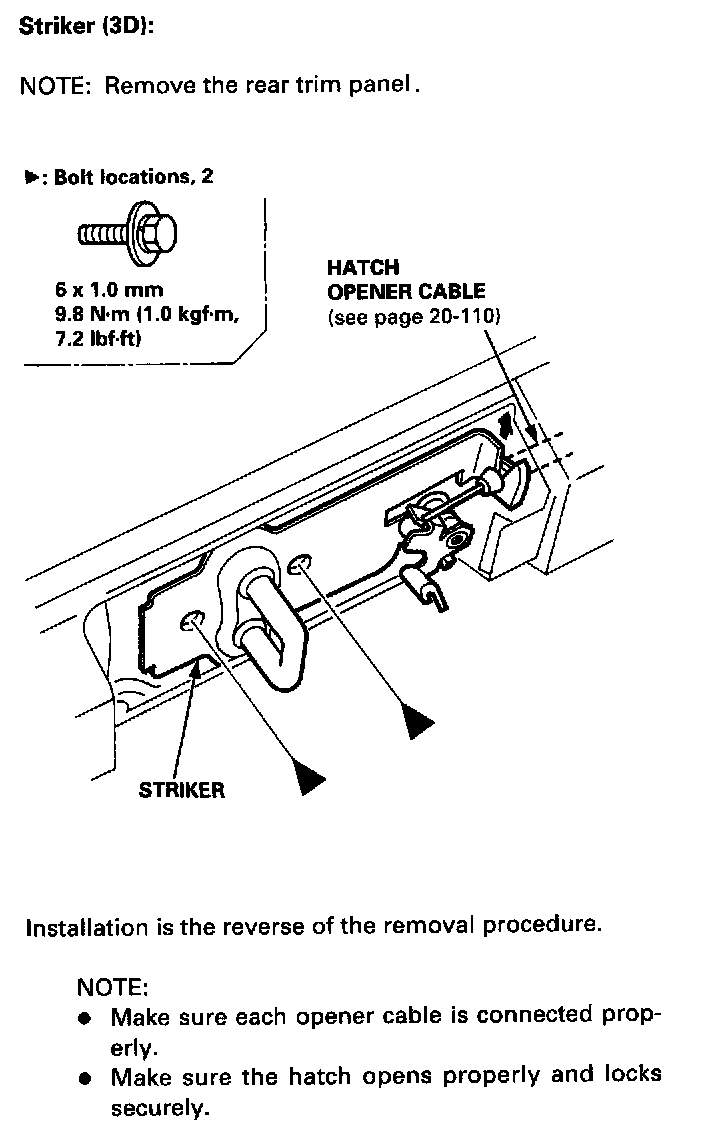

Striker (3D):

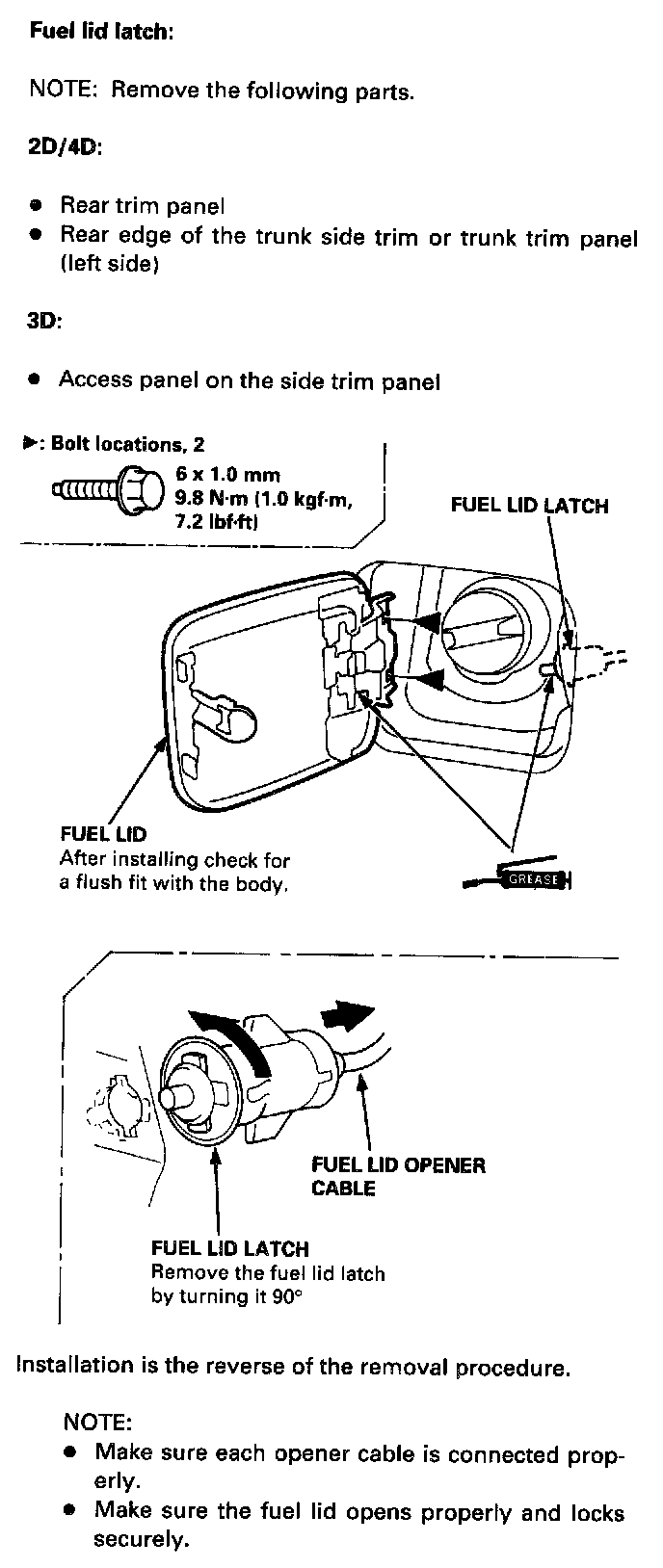

Fuel Lid Latch:

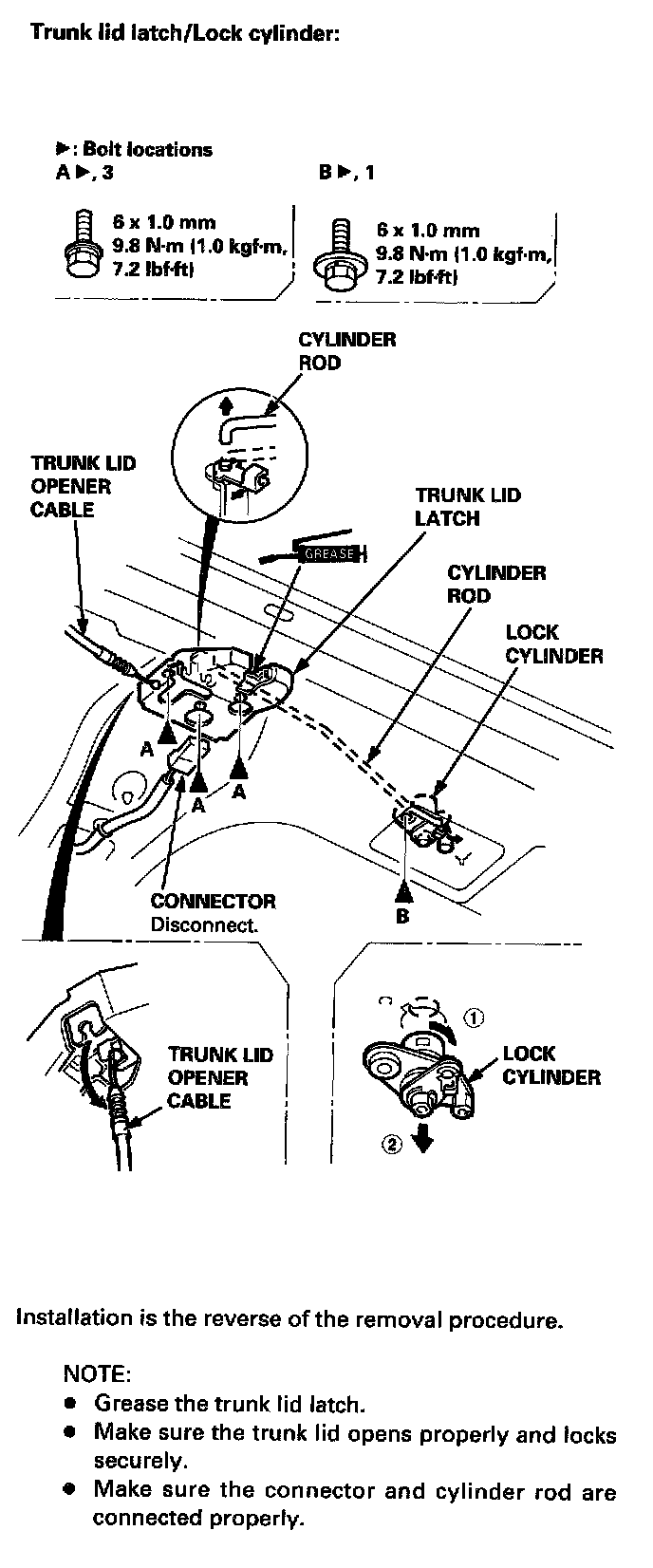

Trunk Lid Latch/Lock Cylinder:

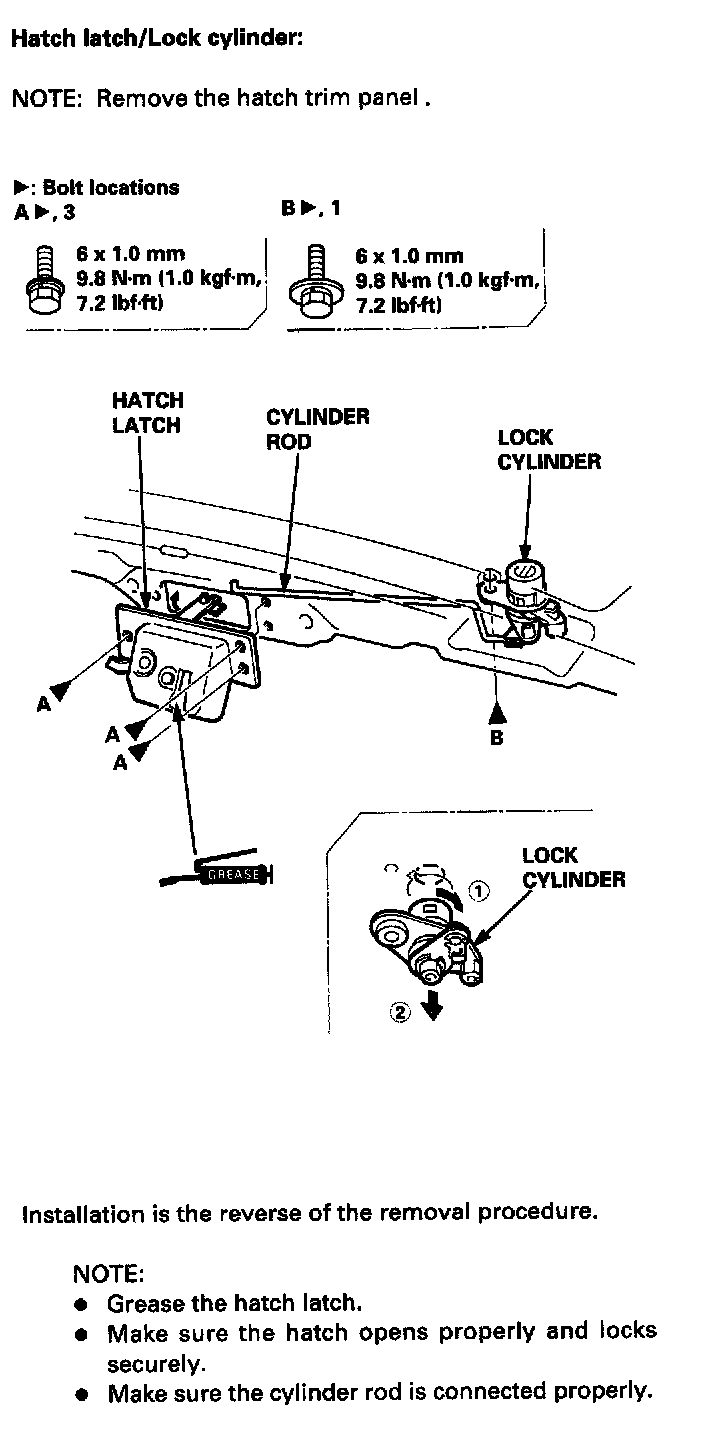

Hatch Latch/Lock Cylinder:
