Starter Cut Does Not Work Properly

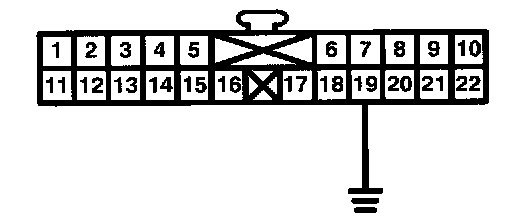

1. With the security system connector disconnected, run a jumper wire from terminal 19 to ground.
Does the starter motor operate when the ignition switch is turned to START (III)?

Yes - Replace the security control unit.
No - Go to the next step.

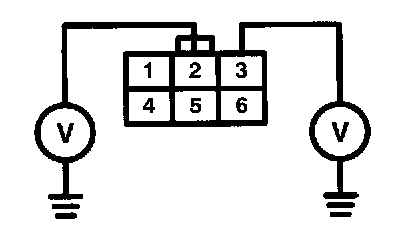

2. Is there battery voltage at terminals 2 and 3 of the security starter cut relay connector, when the ignition switch is in the START (III) position?

Yes - Go to the next step.
No - Repair the open in the BLK/YEL wire between the ignition switch and the security starter cut relay.




3. Is there battery voltage at terminal 6 of the security starter cut relay?

Yes - Go to the next step.
No - Replace the security starter cut relay.




4. With the security starter cut relay connector disconnected, run a jumper wire from terminal 2 to terminal 4.
Does the starter motor operate when the ignition switch is turned to START (III)?

Yes - Go to the next step.
No - Repair the starting system.




5. With the security starter cut relay connector reconnected, does the voltage at terminal 6 change from battery voltage to 0 volts when the system is in the Alarm Triggered Mode?

Yes - Replace the security starter cut relay.
No - Repair the open in terminal 19 (RED/YEL) wire.
