Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1706 >> Continuously Variable Transmission

Continuously Variable Transmission

P1706

Note: Record all freeze data before you troubleshoot.

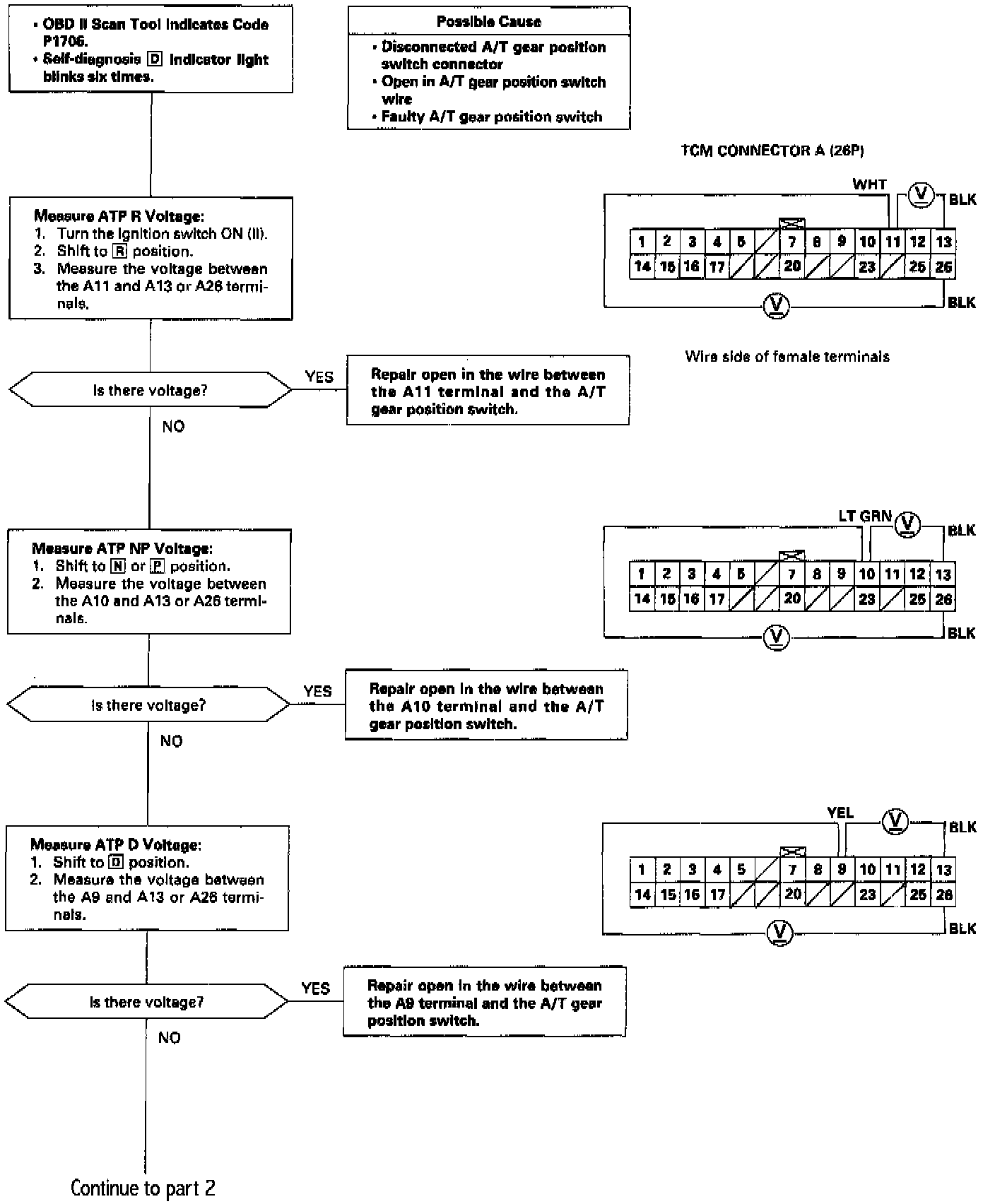

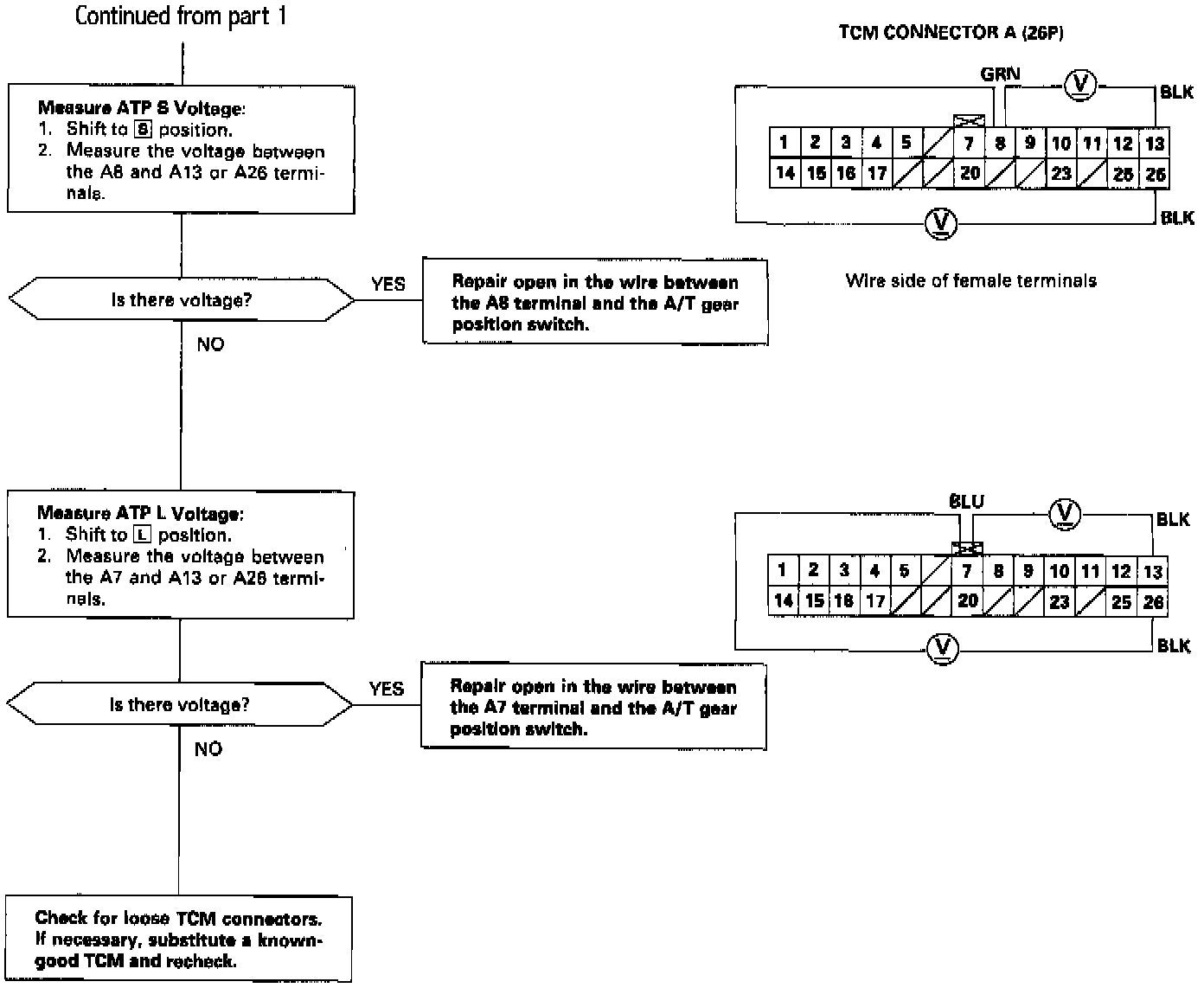

Flowchart









Advanced Diagnostics
