DTC 11

Troubleshooting/Wheel Sensor (Part 1 Of 2):

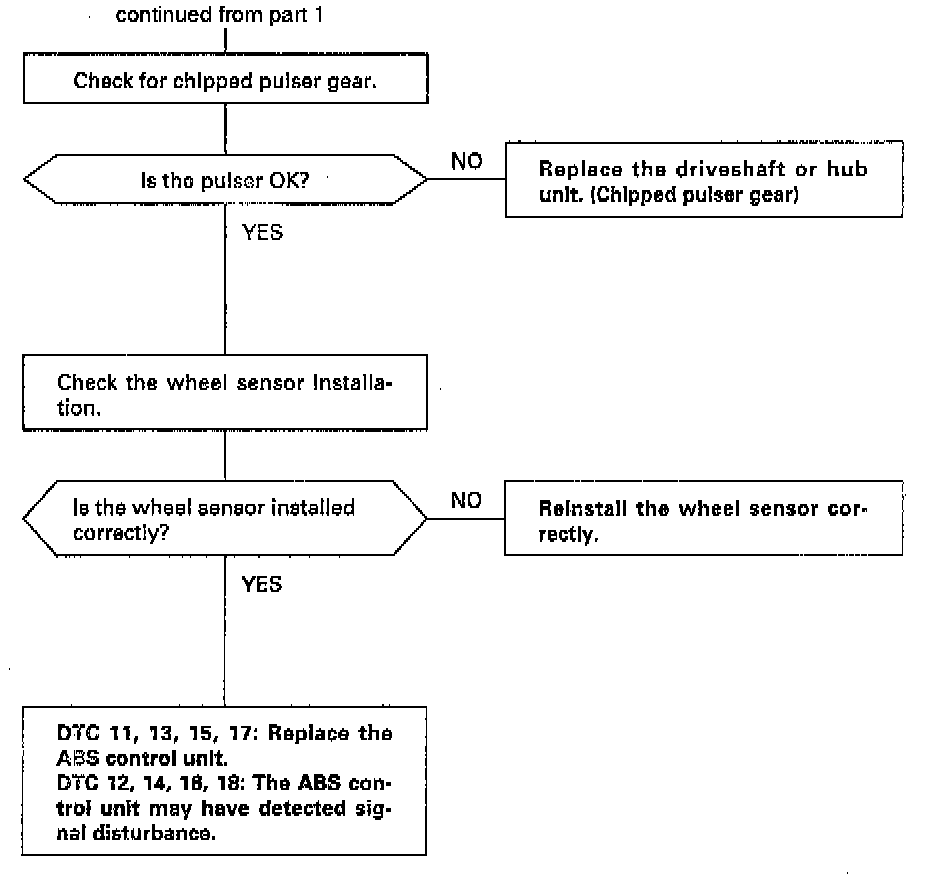

Troubleshooting/Wheel Sensor (Part 2 Of 2):

SYMPTOM - Open/short to body ground/short to power.

PROBABLE CAUSE
- Open, short to body ground and/or short to power in the wheel sensor circuit.
- Faulty wheel sensor.
- Faulty ABS control unit.

CONDITION FOR DETECTION
The ABS indicator light comes on when vehicle is stopped and wheel sensor a given voltage does not input.
