Home >> Honda >> 1995 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Key Reminder Switch >> Diagrams >> Electrical Diagrams >> Lights-on Reminder

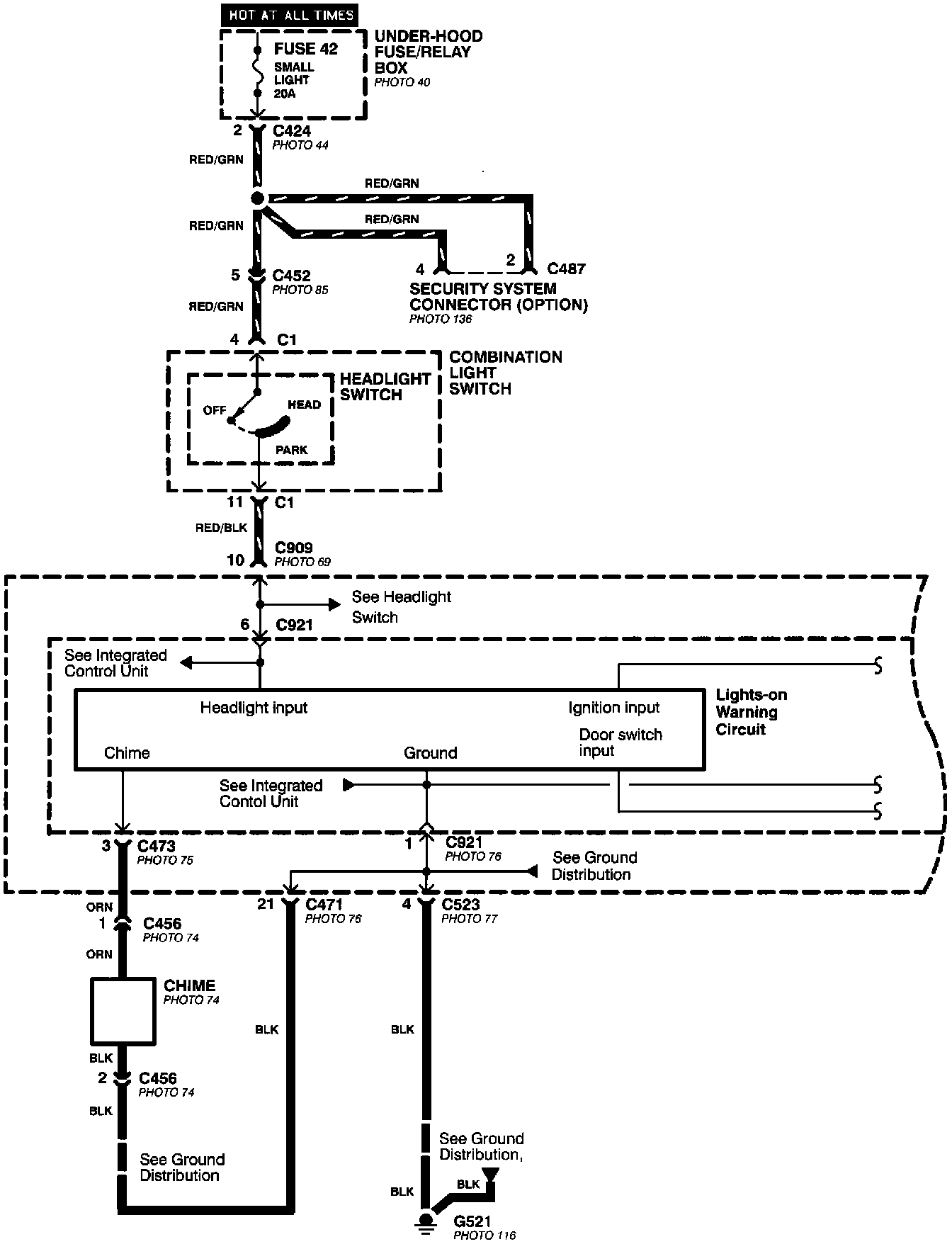

Lights-on Reminder

Seat Belt, Lights-on, And Ignition Key Reminders - Lights-on Reminder:
