Home >> Honda >> 1995 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Testing and Inspection >> Oxygen Sensor Heater

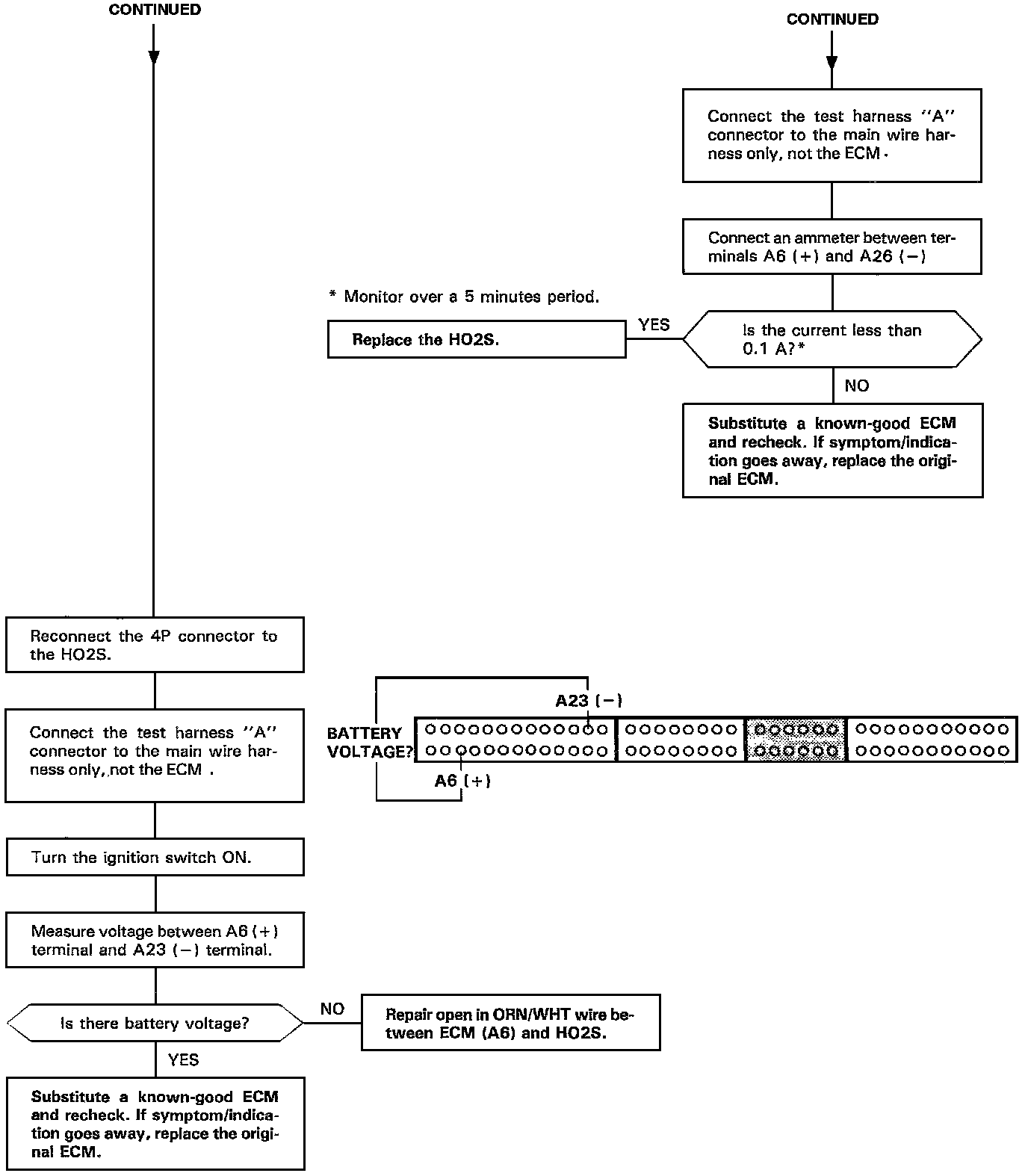

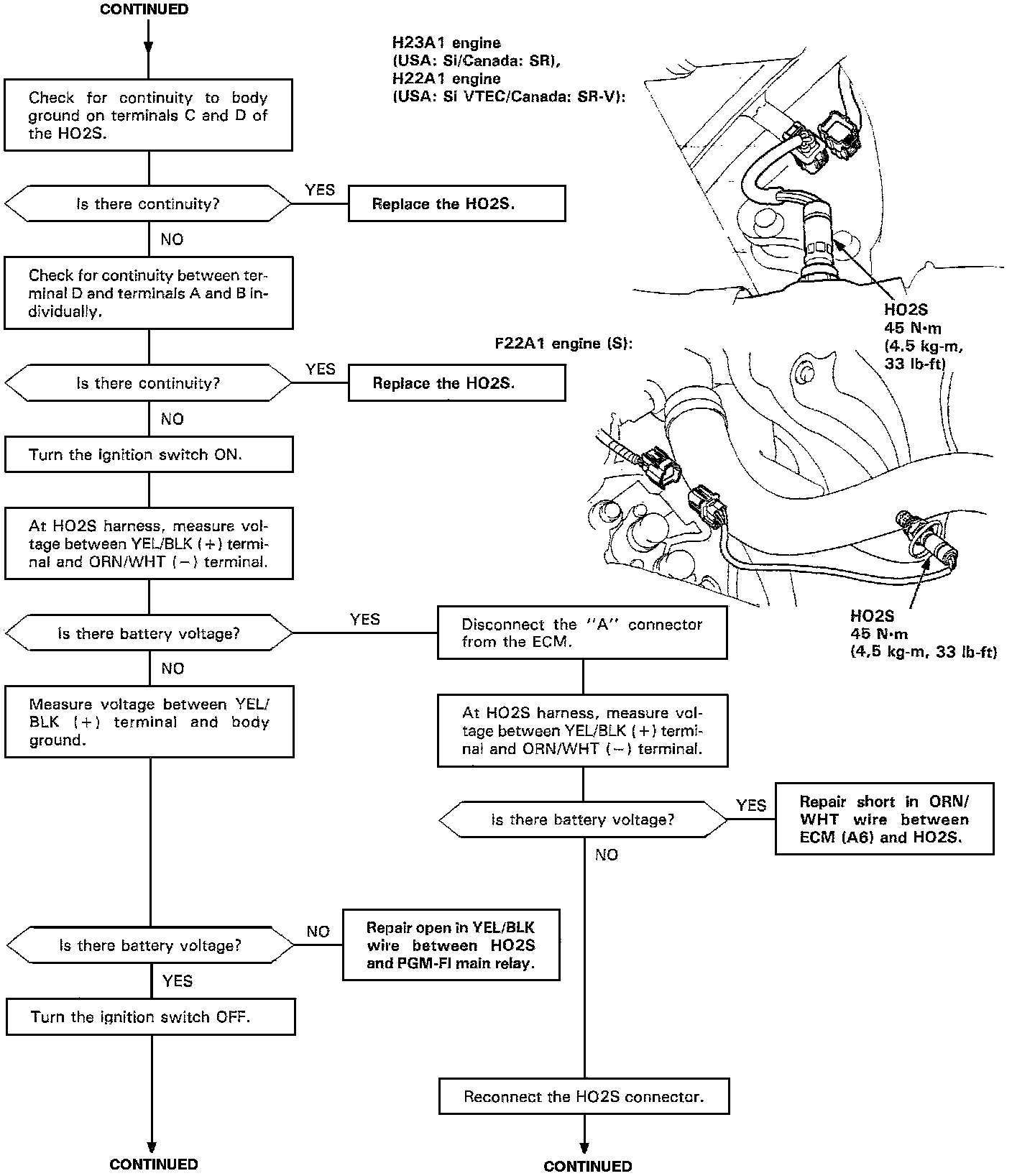

Oxygen Sensor Heater

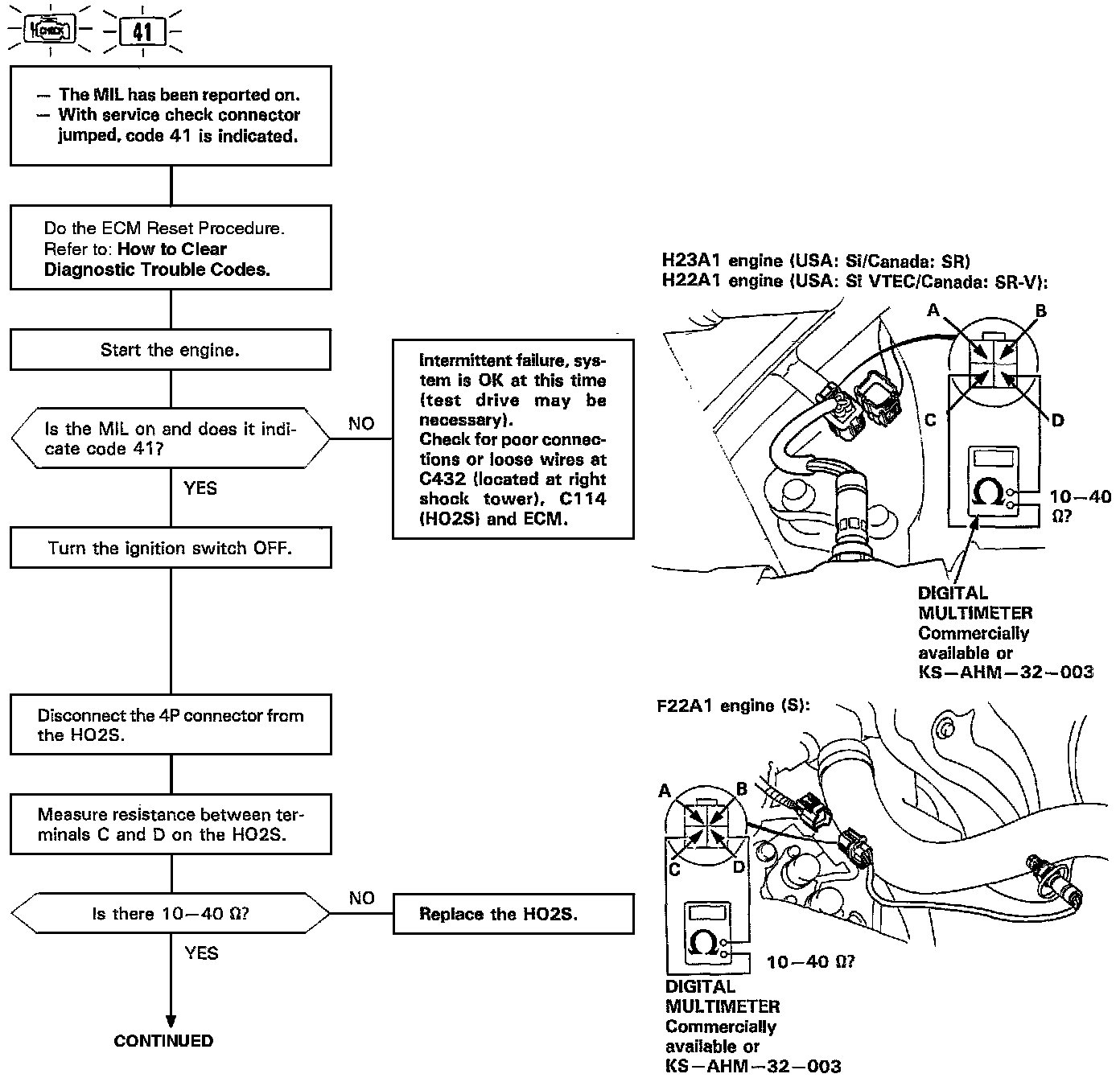

The Malfunction Indicator Lamp (MIL) indicates Diagnostic Trouble Code (DTC) 41 - A problem in the Heated Oxygen Sensor (HO2S) Heater circuit.
