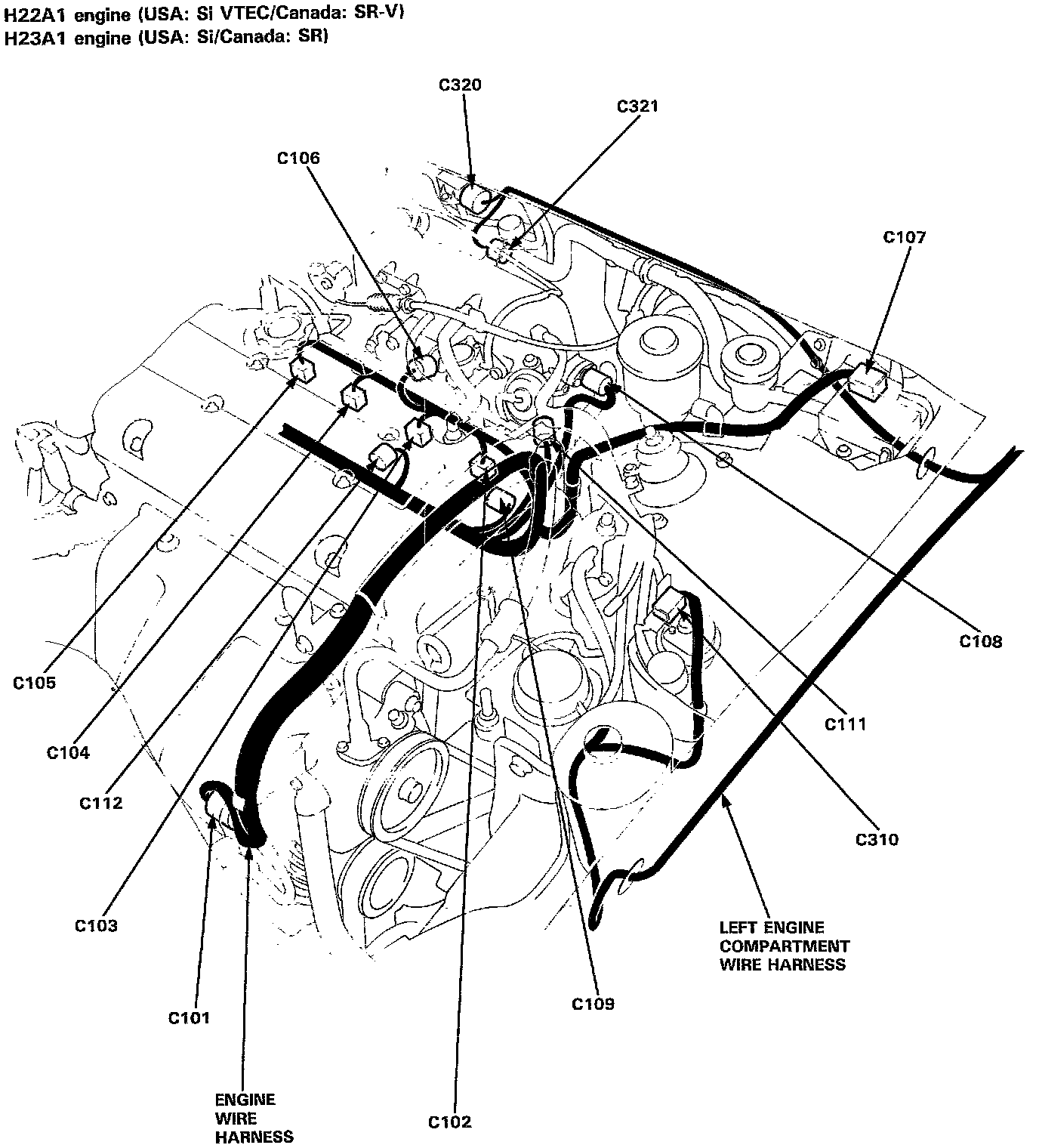

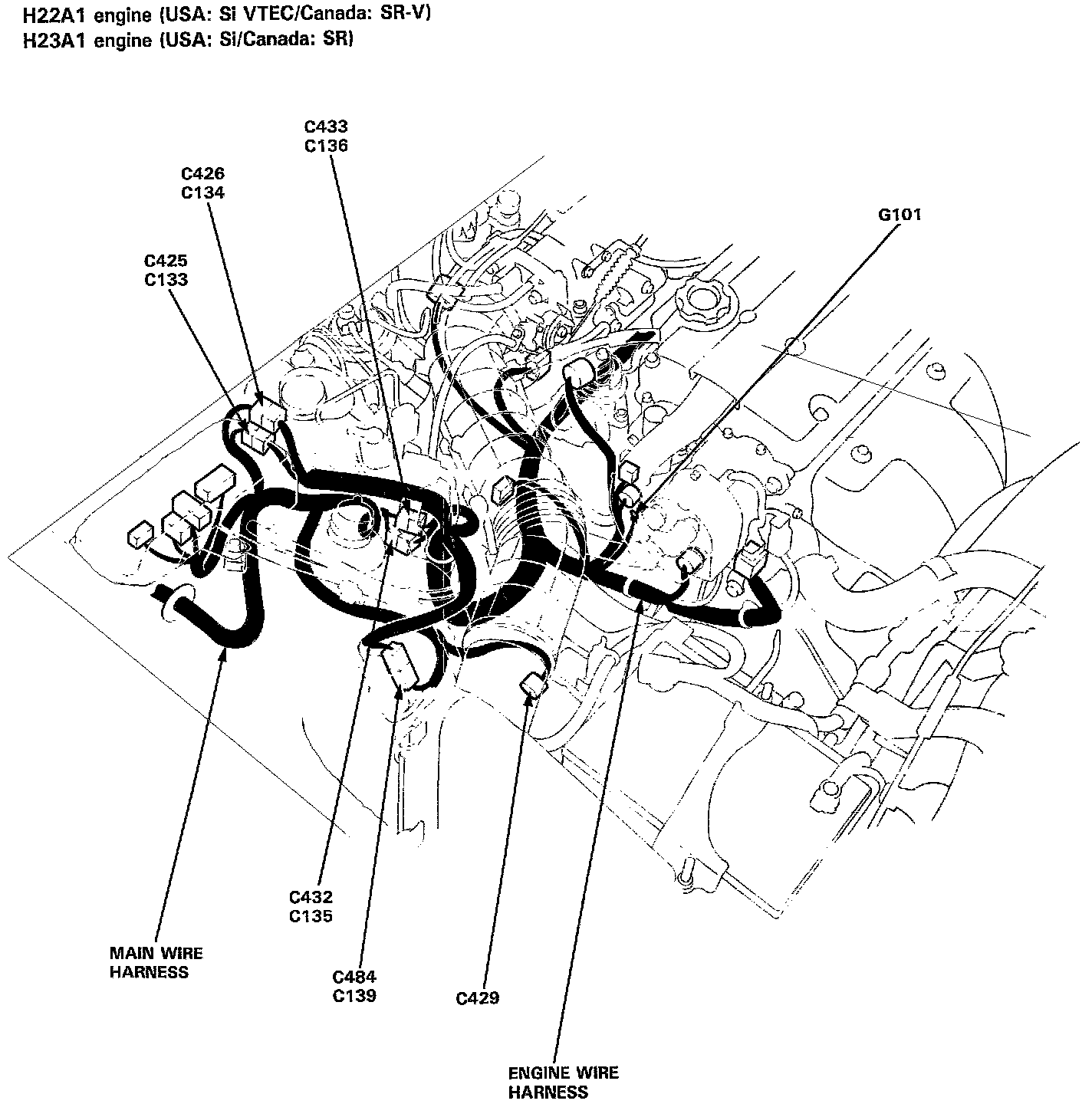

Engine Compartment
NOTE:
- Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).
0 Related to Fuel and Emissions System.
NOTE:
- Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).
0 Related to Fuel and Emissions System.
