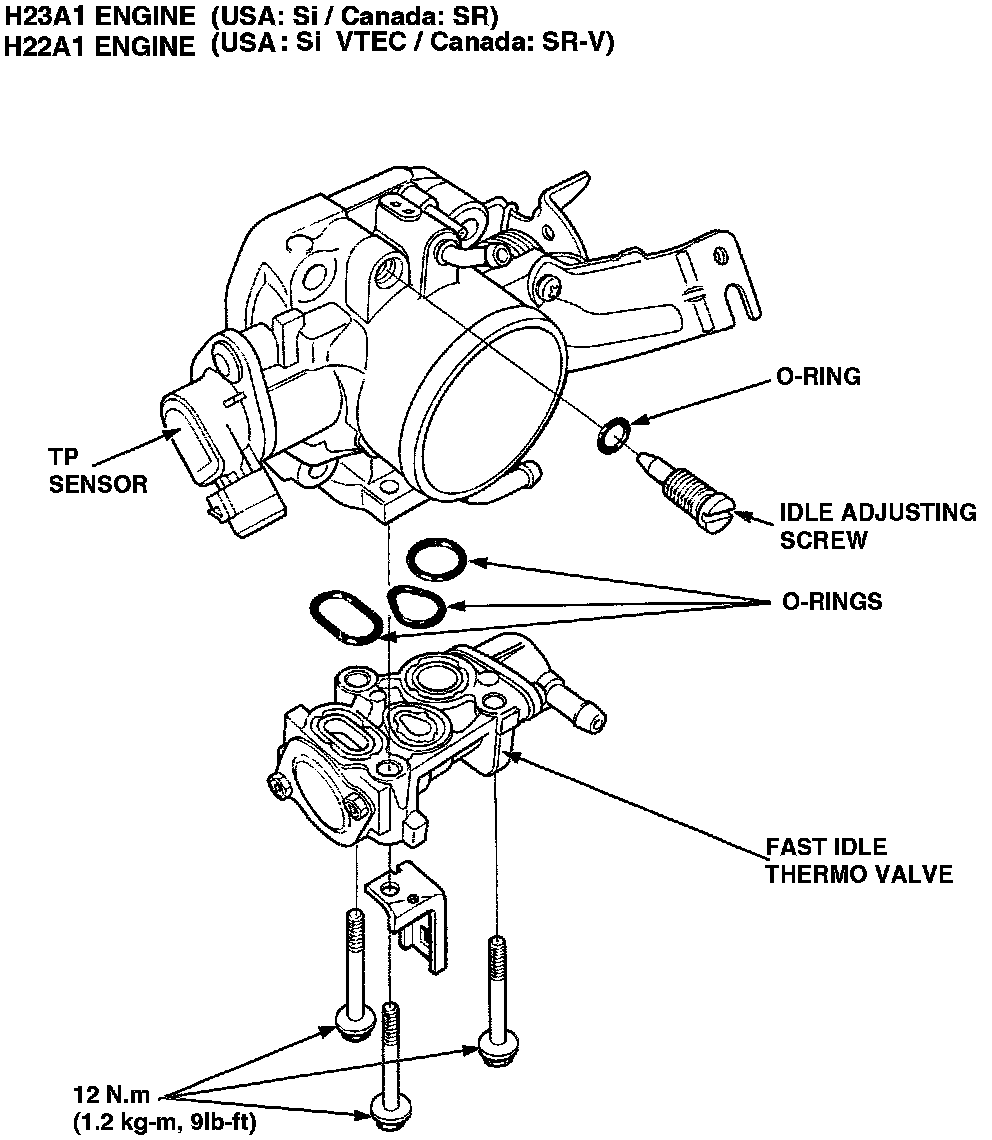

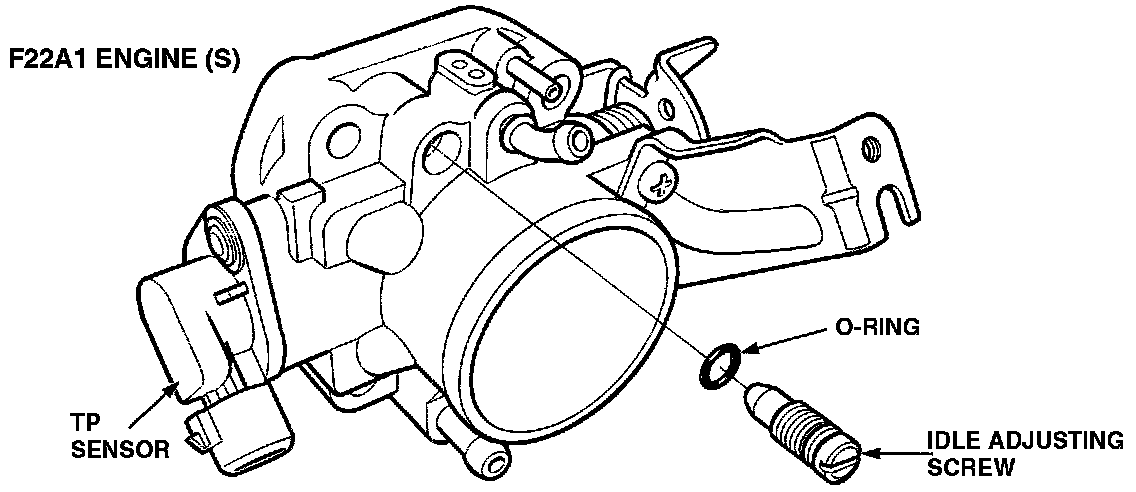

Throttle Body: Service and Repair











CAUTION:
- The Throttle Stop Screw is non-adjustable.

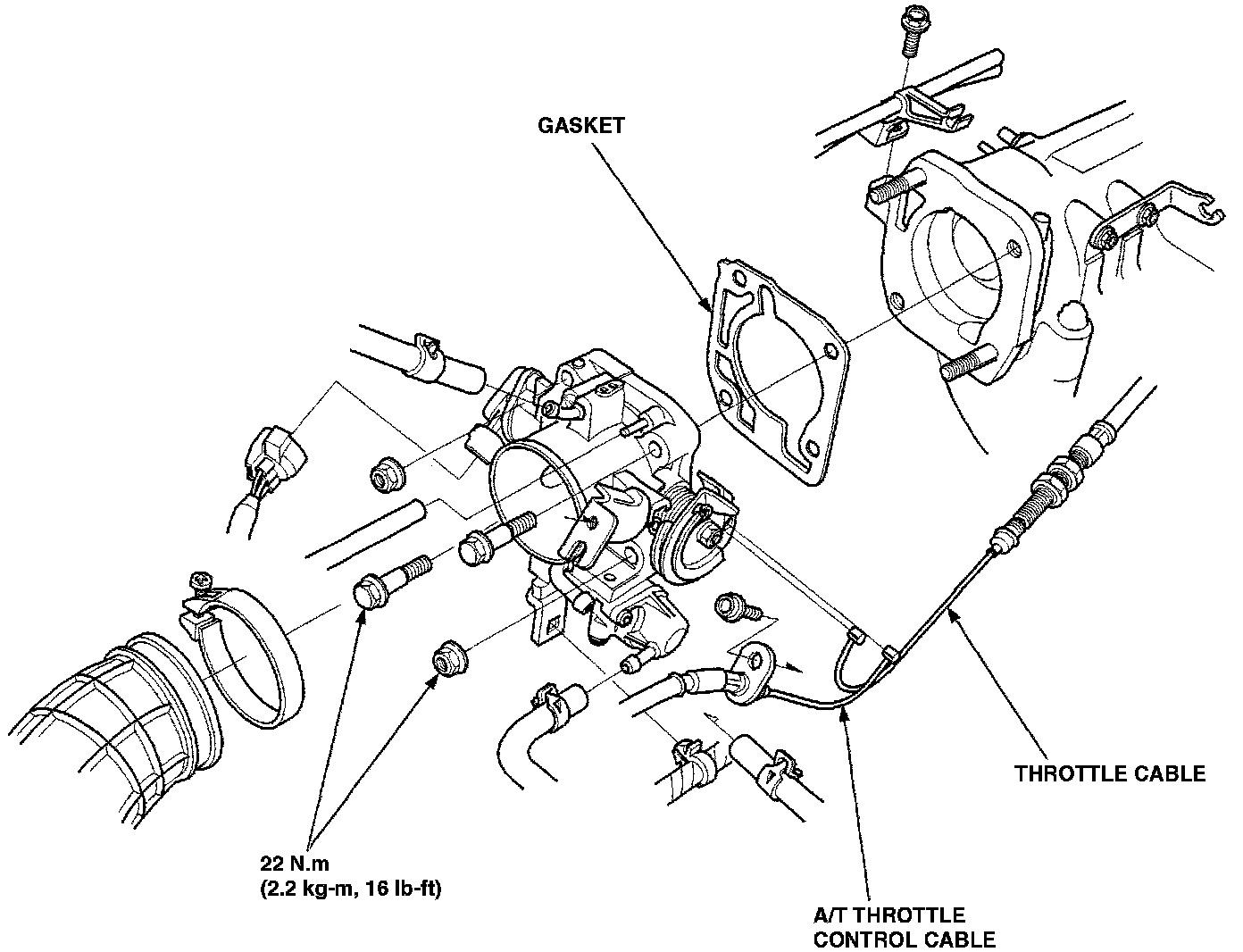

- After reassembly, adjust the Throttle Cable, and Automatic Transmission (A/T) Throttle Control Cable.
