Exhaust Gas Recirculation: Testing and Inspection

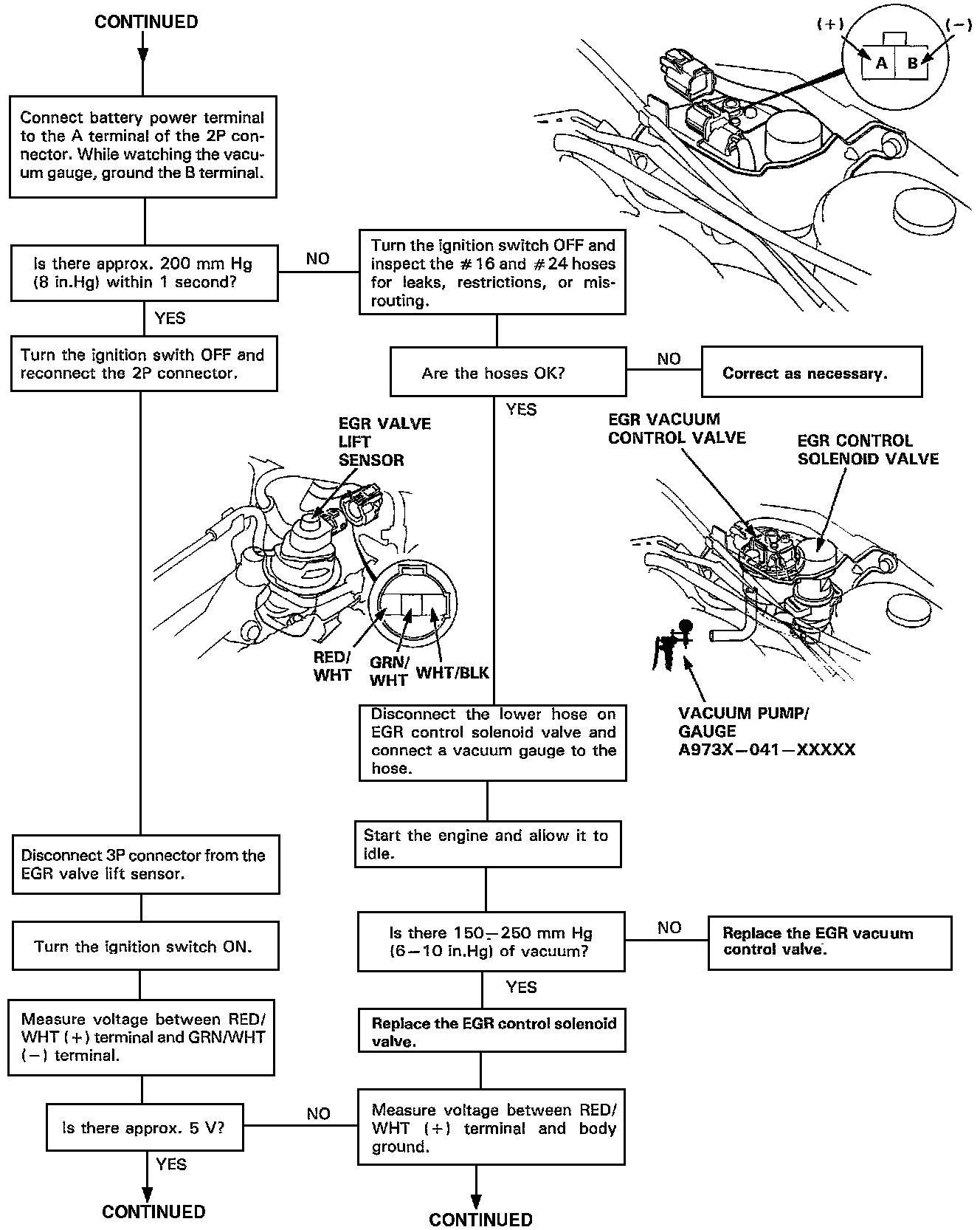

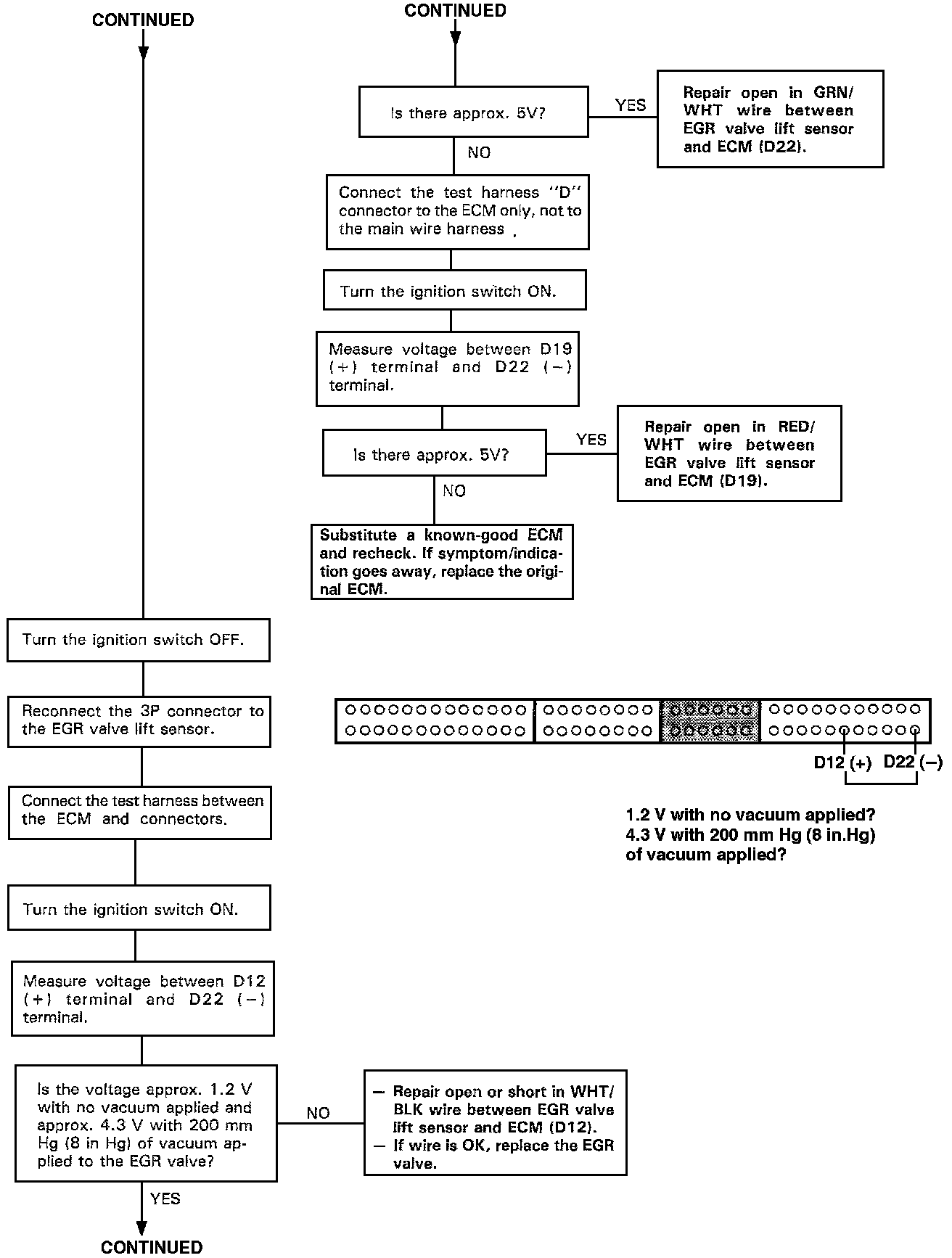

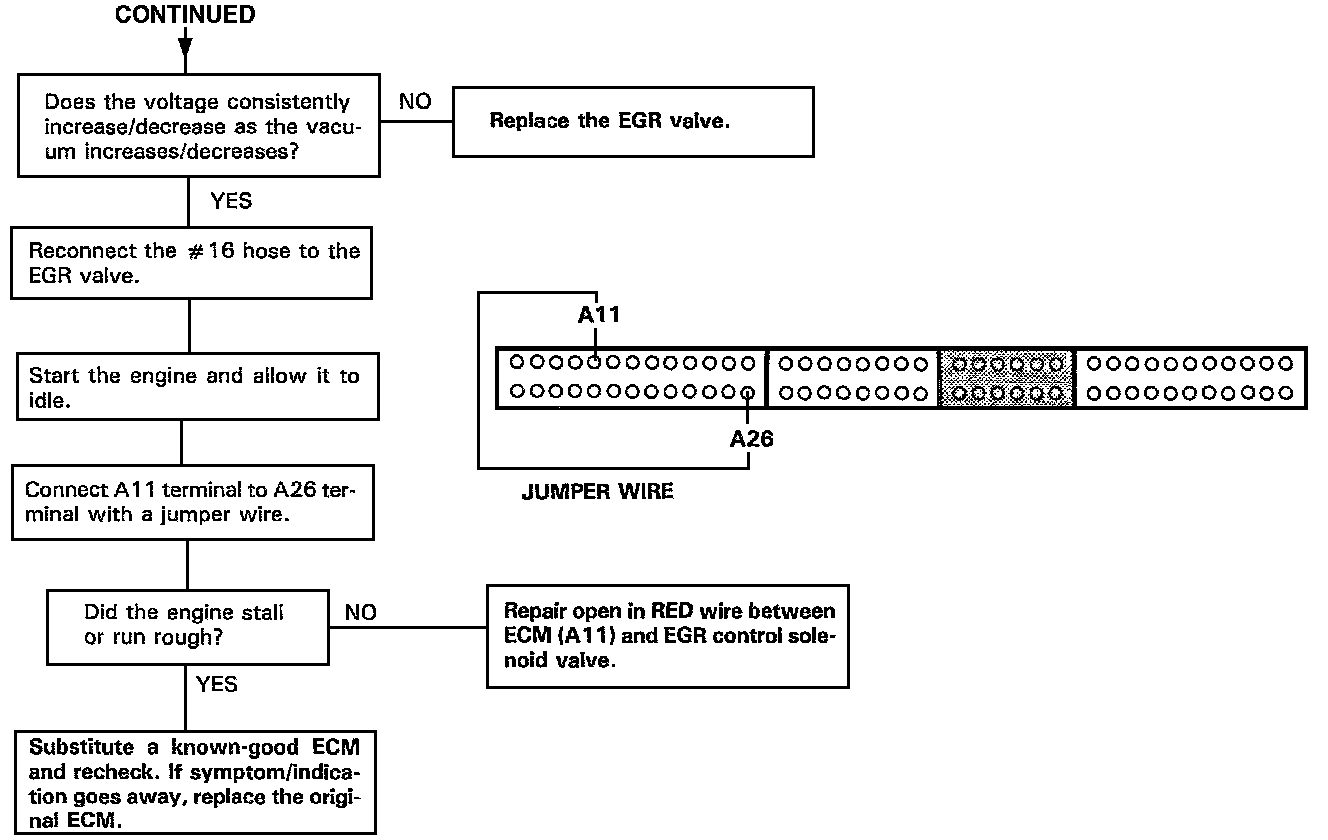

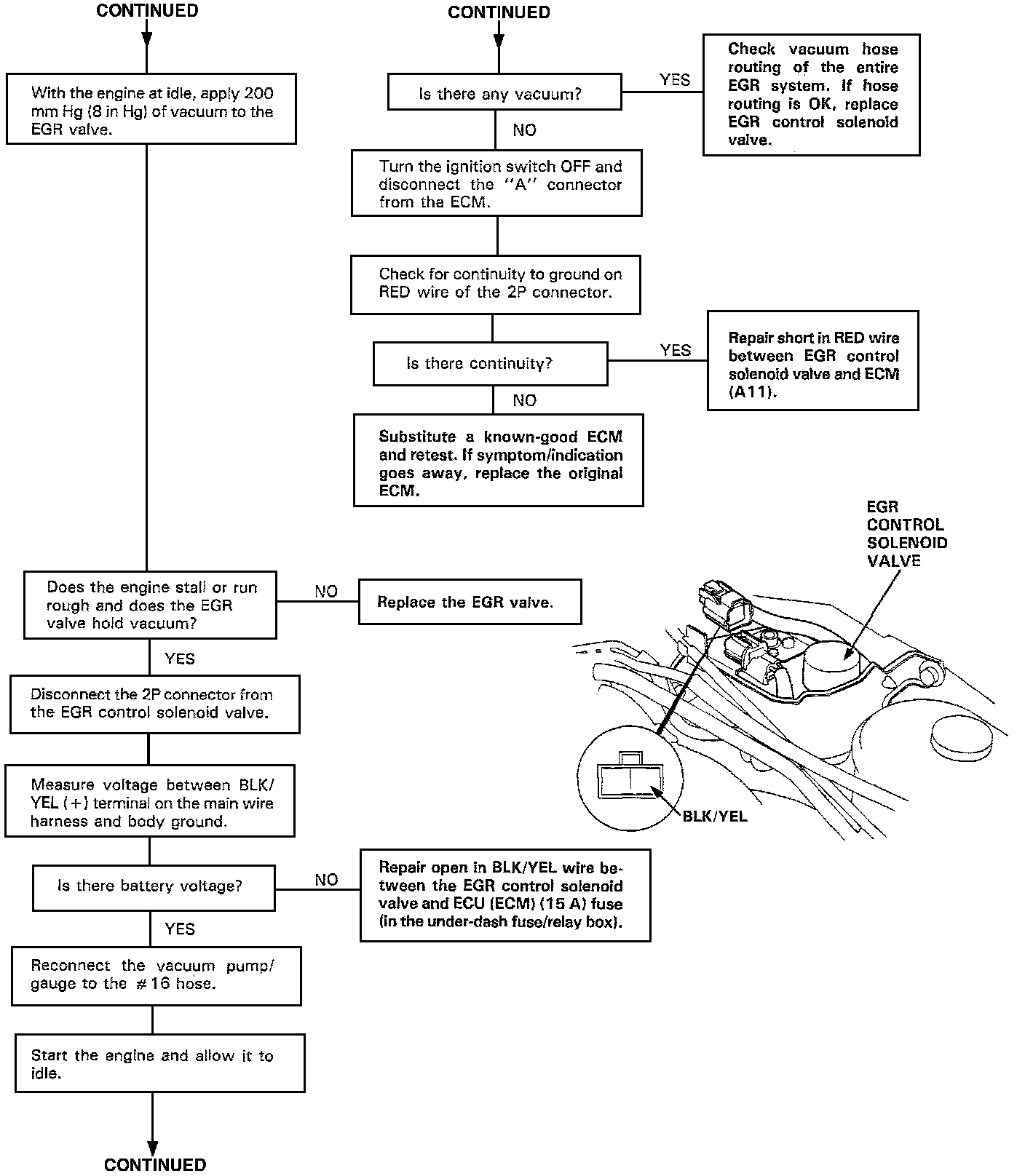

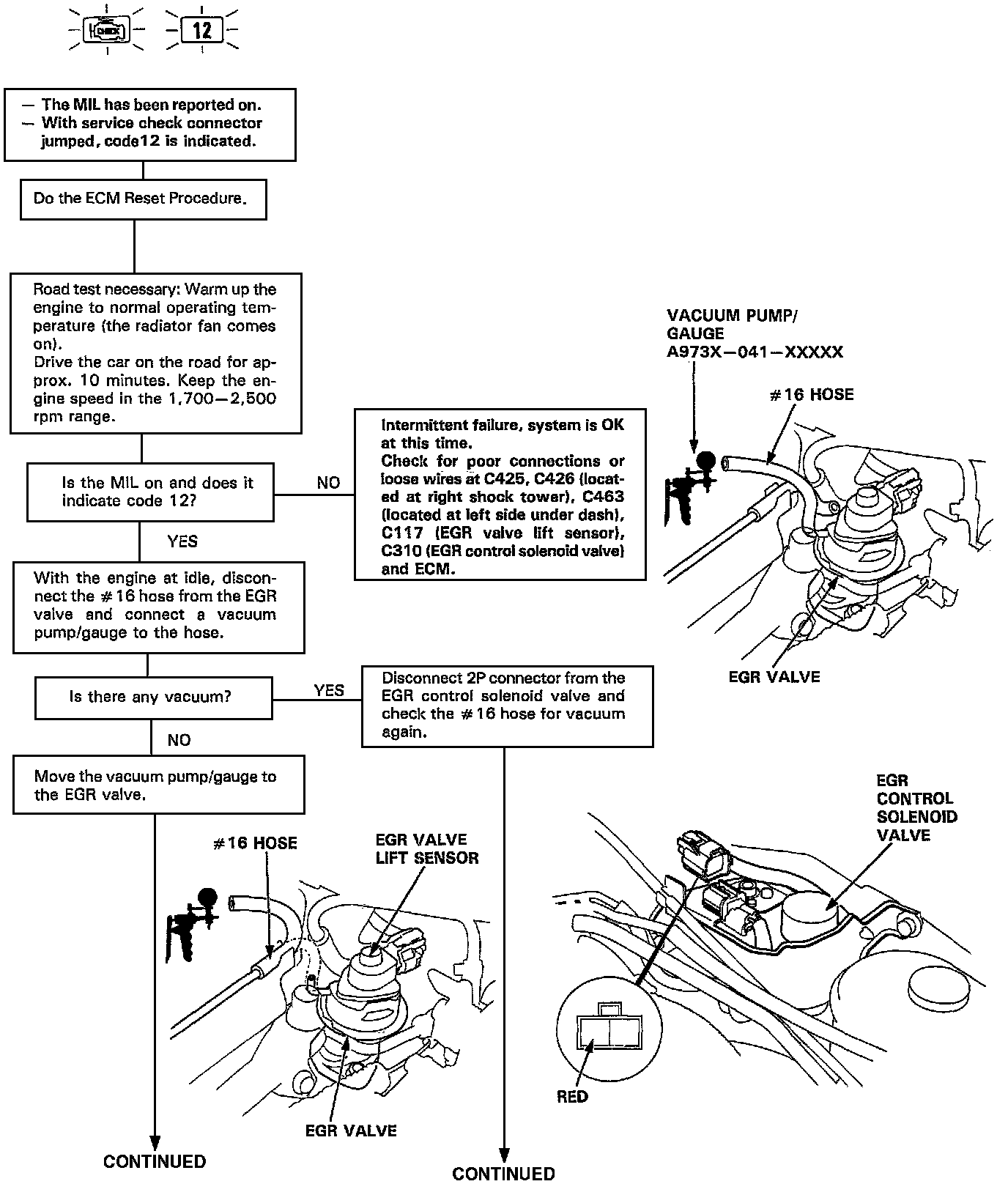

The Malfunction Indicator Lamp (MIL) indicates Diagnostic Trouble Code (DTC) 12 - A problem in the Exhaust Gas Recirculation (EGR) system.
