Home >> Honda >> 1995 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Vehicle Speed Sensor >> Testing and Inspection

Vehicle Speed Sensor: Testing and Inspection

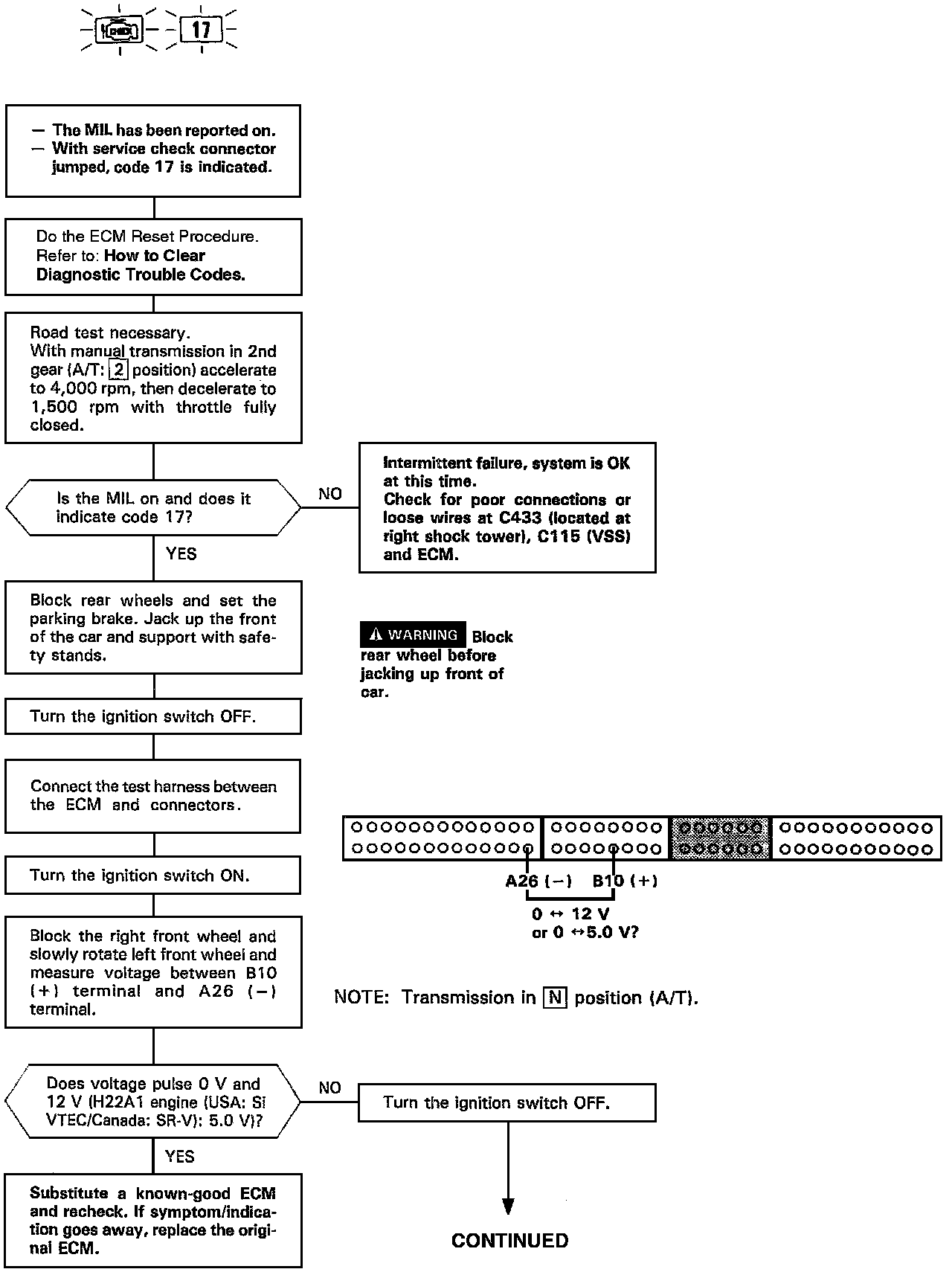

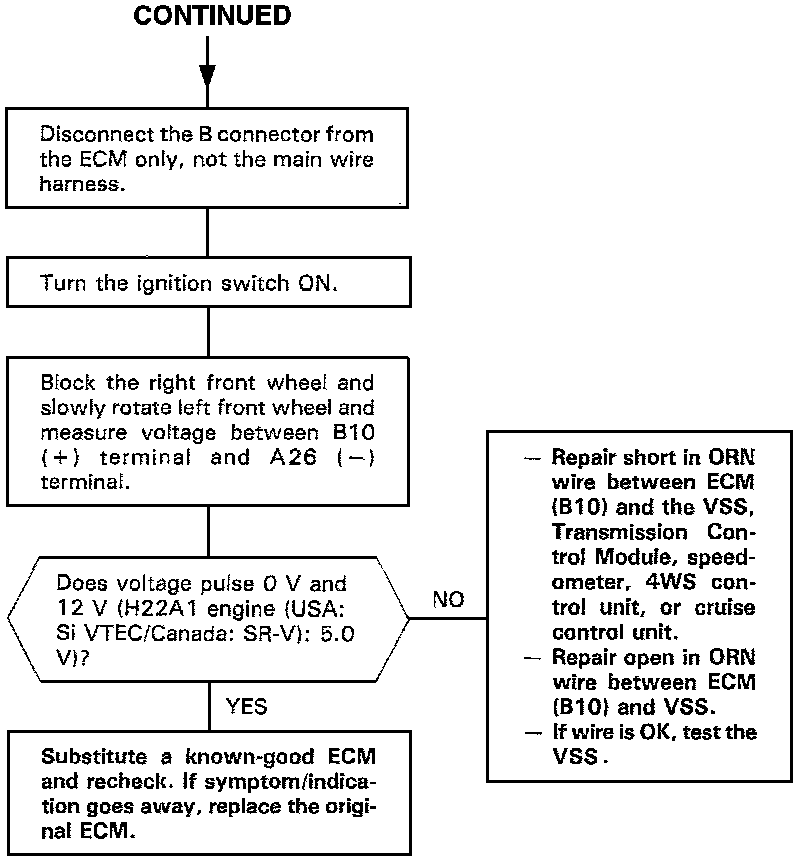

The Malfunction Indicator Lamp (MIL) indicates Diagnostic Trouble Code (DTC) 17 - A problem in the Vehicle Speed Sensor (VSS) circuit.
