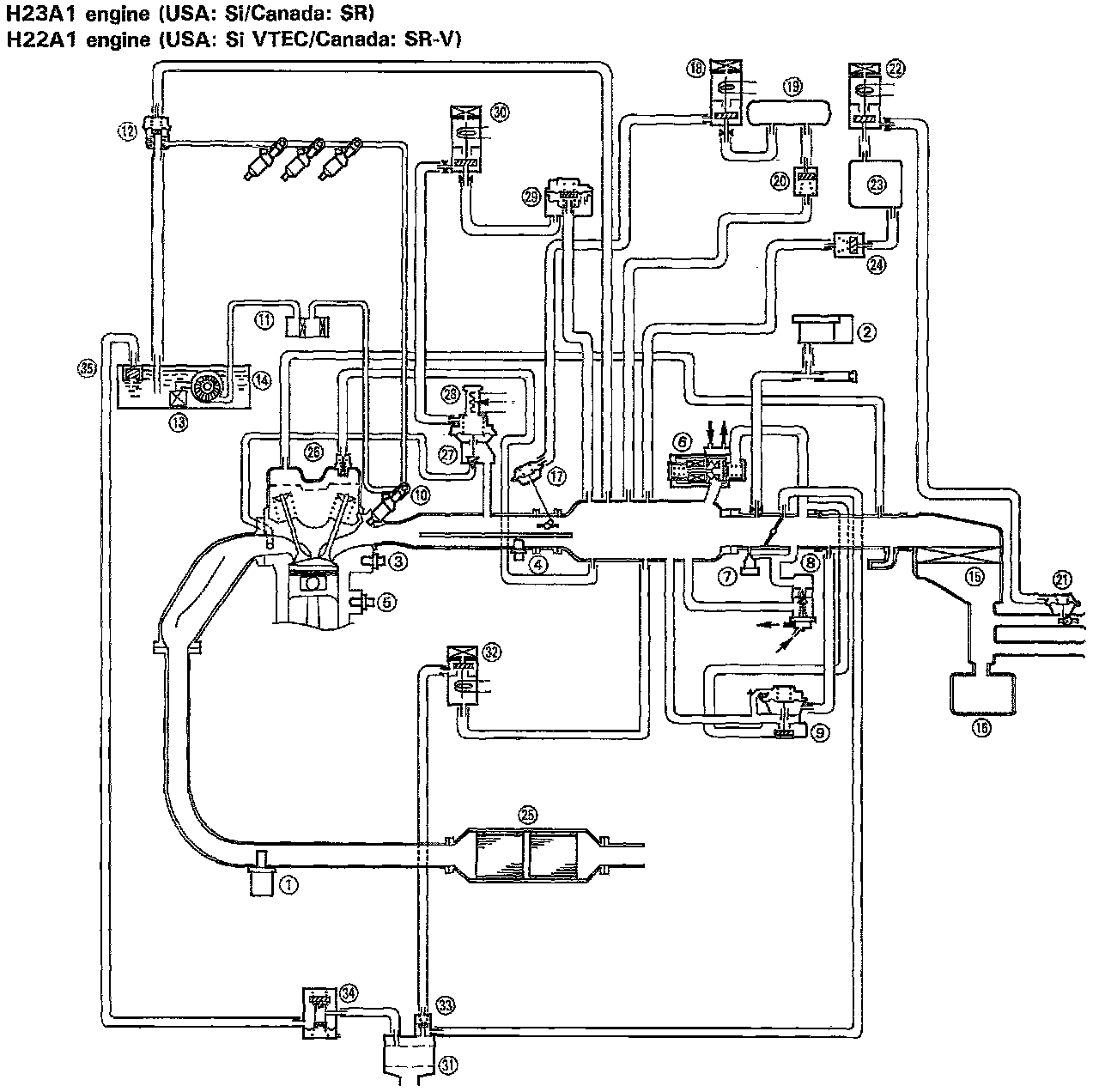

System Diagram

1. Heated Oxygen Sensor (HO2S)
2. Manifold Absolute Pressure (MAP) Sensor
3. Engine Coolant Temperature (ECT) Sensor
4. Intake Air Temperature (IAT) Sensor
5. Knock Sensor (KS)
6. Idle Air Control (IAC) Valve
7. Idle Adjusting Screw
8. Fast Idle Thermo Valve
9. Starting Air Valve
10. Fuel Injector
11. Fuel Filter
12. Fuel Pressure Regulator
13. Fuel Pump
14. Fuel Tank
15. Air Cleaner
16. Resonator
17. Intake Air Bypass (IAB) Control Diaphragm
18. Intake Air Bypass Control Solenoid Valve
19. Intake Air Bypass Vacuum Tank
20. Intake Air Bypass Check Valve
21. Intake Control Diaphragm
22. Intake Control Solenoid Valve
23. Intake Control Vacuum Tank
24. Intake Control Check Valve
25. Three Way Catalytic Converter (TWC)
26. Positive Crankcase Ventilation (PCV) Valve
27. Exhaust Gas Recirculation (EGR) Valve
28. Exhaust Gas Recirculation Valve Lift Sensor
29. Exhaust Gas Recirculation Vacuum Control Valve
30. Exhaust Gas Recirculation Control Solenoid Valve
31. Evaporative Emission (EVAP) Control Canister
32. Evaporative Emission Purge Control Solenoid Valve
33. Evaporative Emission Purge Control Diaphragm Valve
34. Evaporative Emission Two Way Valve
