Home >> Honda >> 1995 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C Fan Diagrams >> S Models

S Models

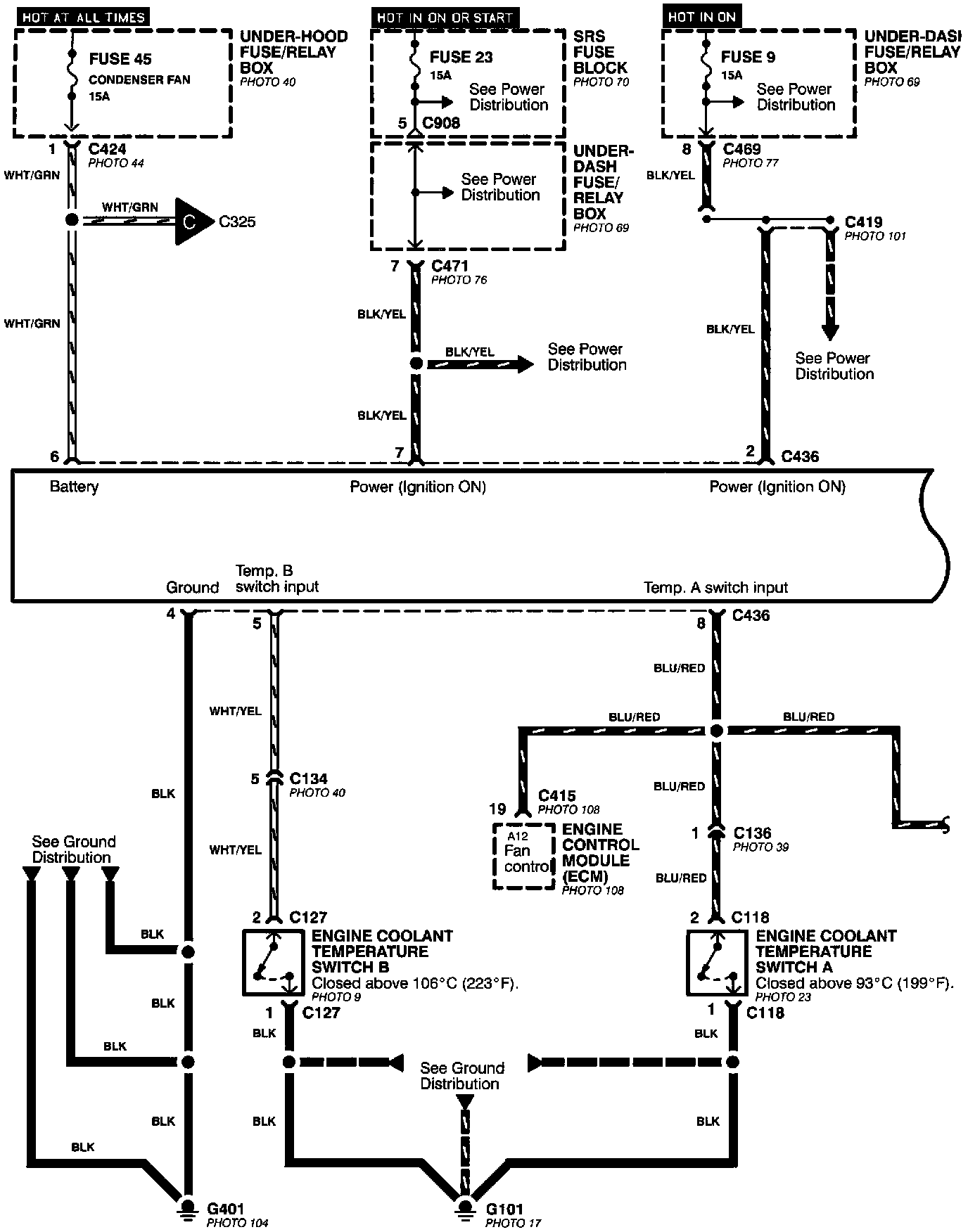

Fans - S Models with A/C:

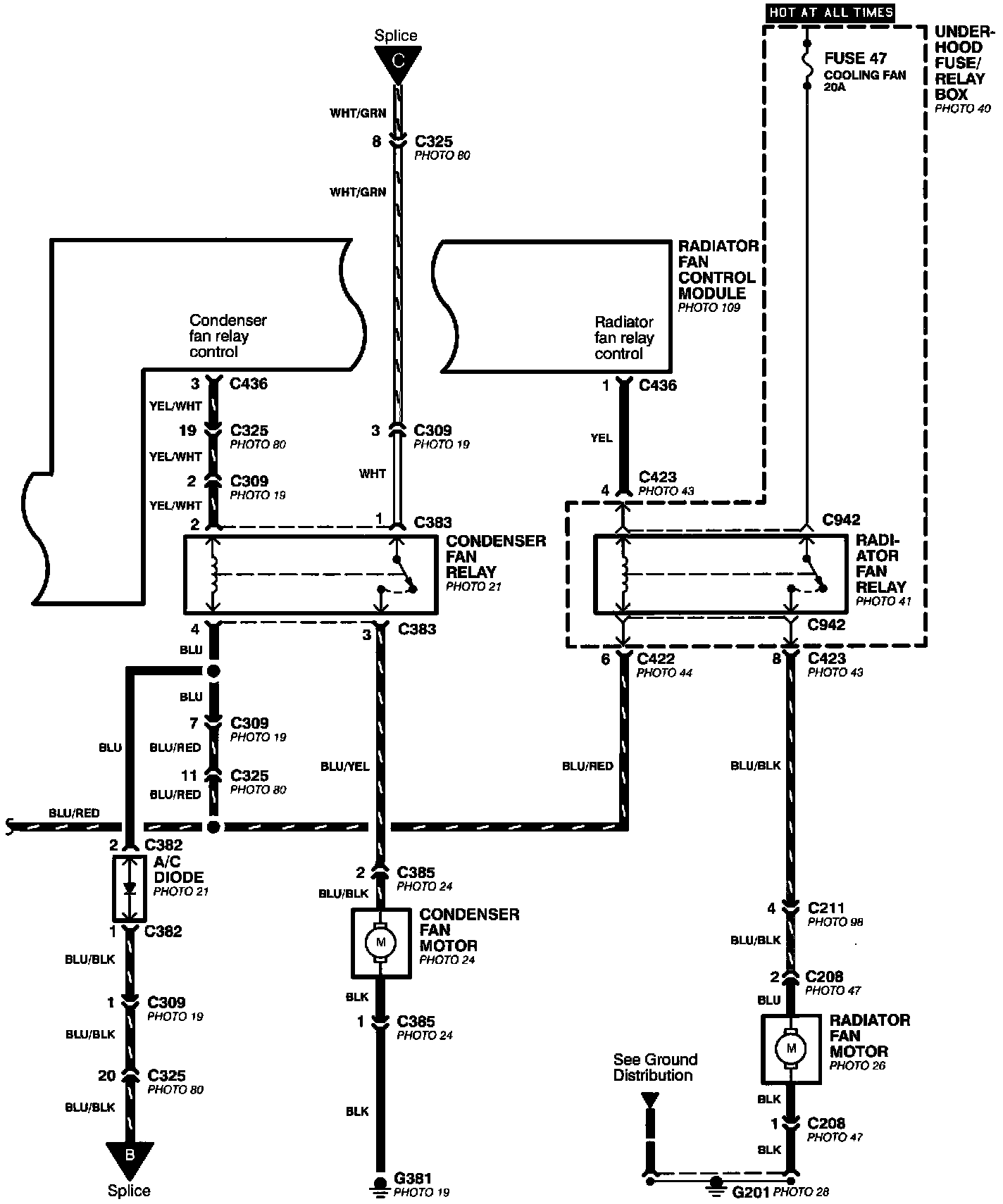

Fans - S Models with A/C:




Fans - S Models with A/C:
