Home >> Honda >> 1995 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Locations >> Component Locations >> Warning and Caution Labels

Warning and Caution Labels

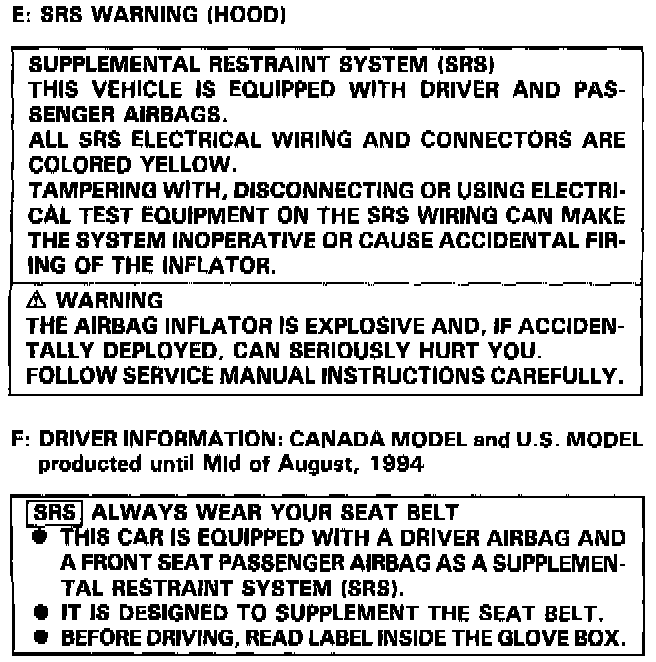

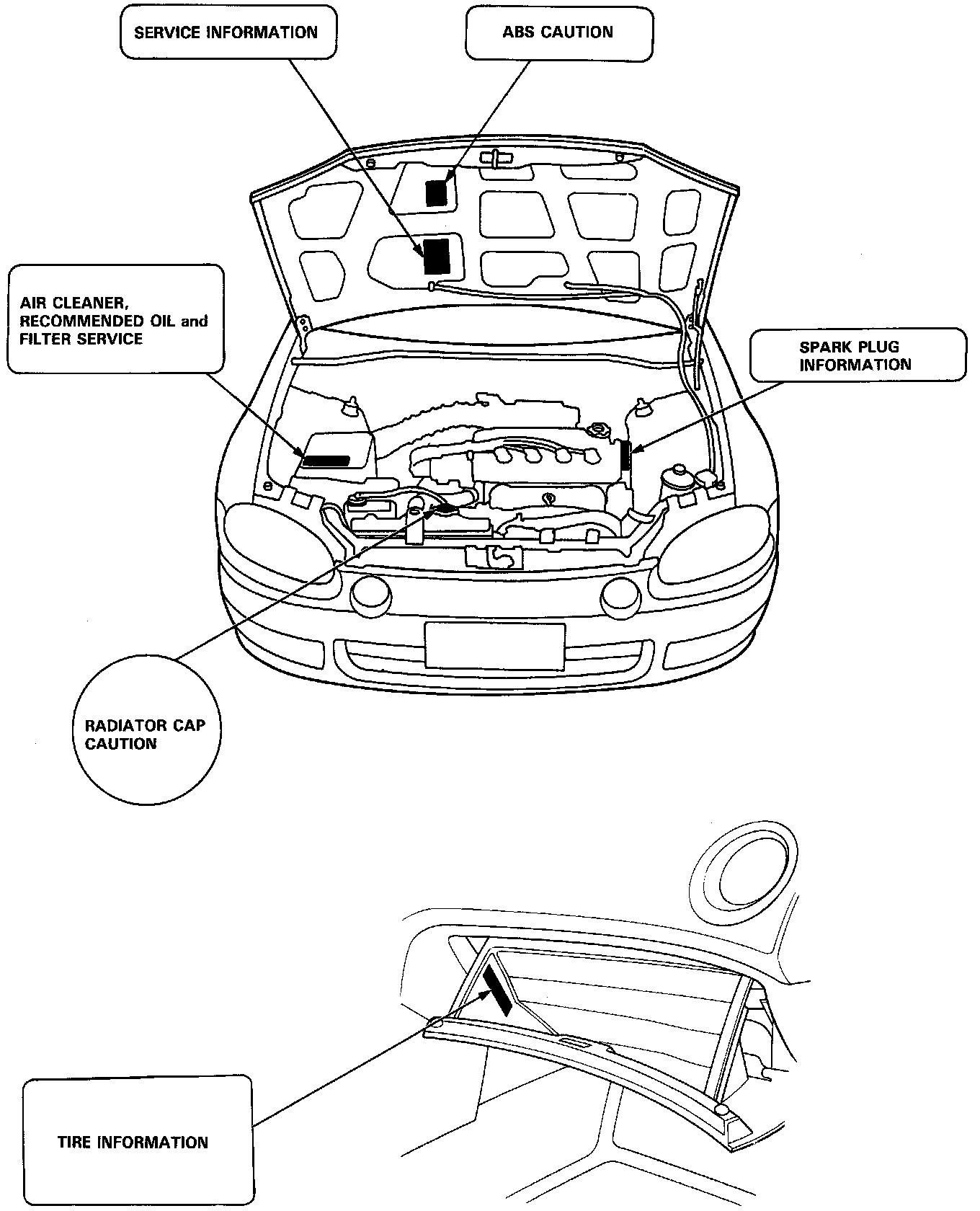

Warning, Caution Label Locations:

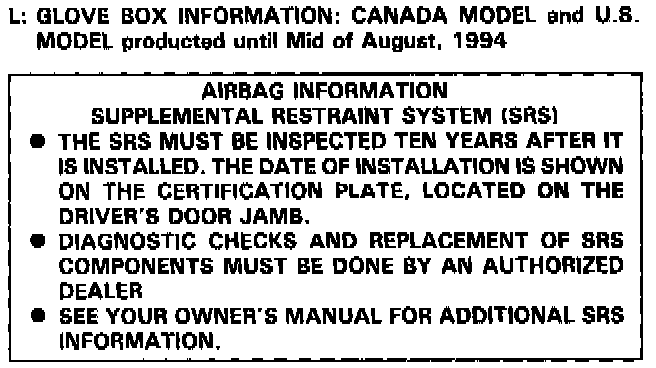

Warning, Caution Label Locations:

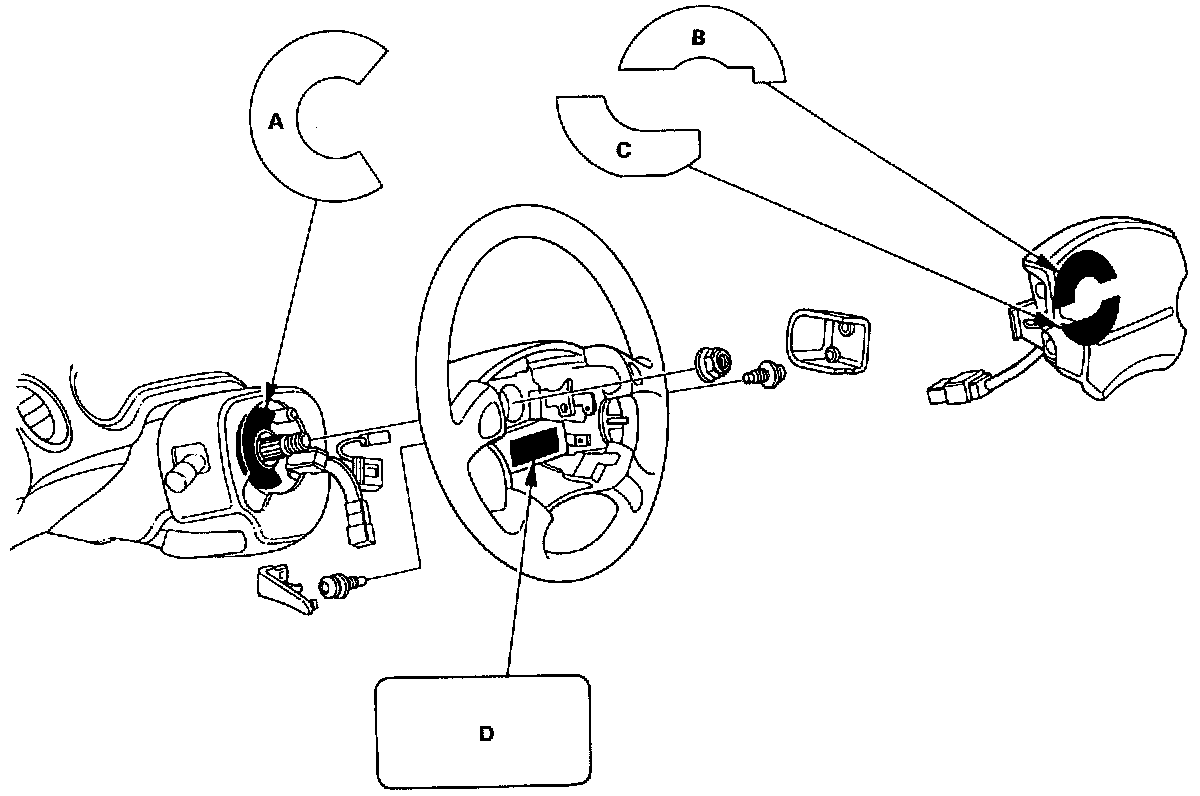

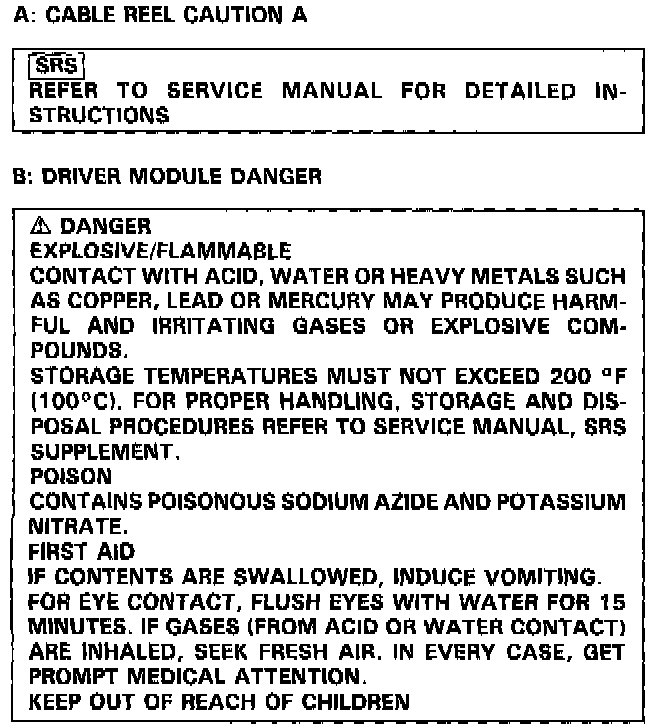

Warning, Caution Label Locations:
