Home >> Honda >> 1995 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness

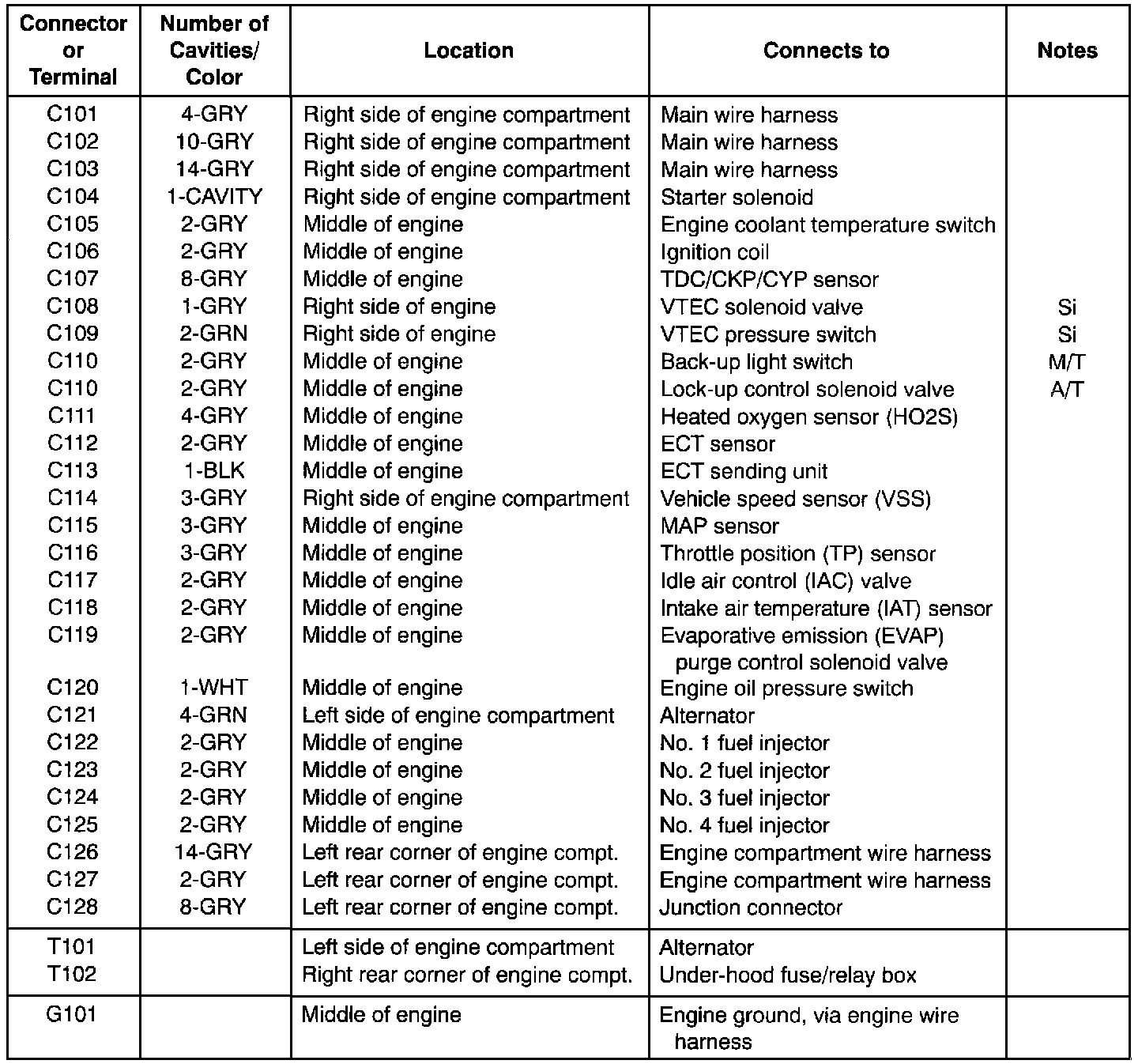

Engine Wire Harness

Engine Wire Harness (S, Si):



Engine Wire Harness (S, Si):
