Clearance Inspection

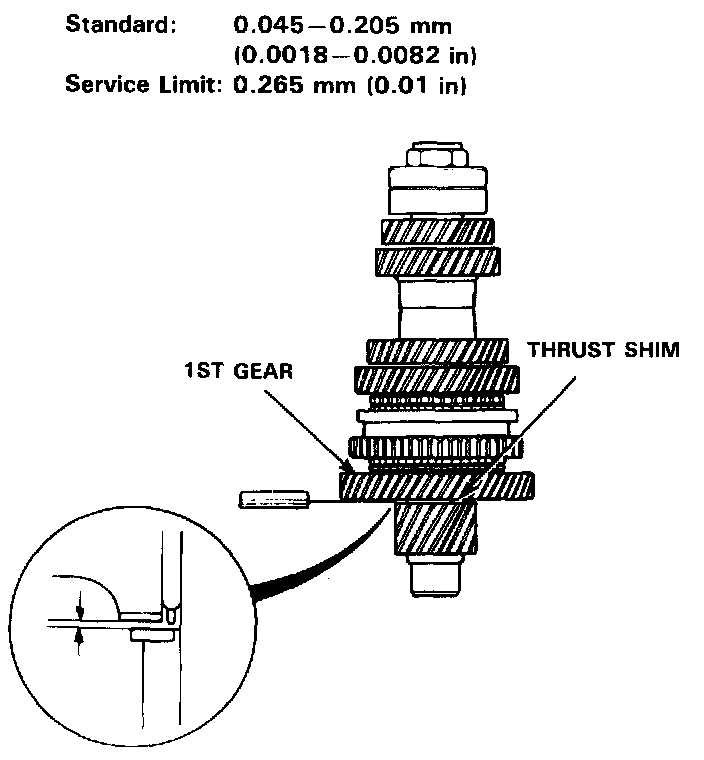

1. Measure the clearance between the 1St gear and thrust shim.

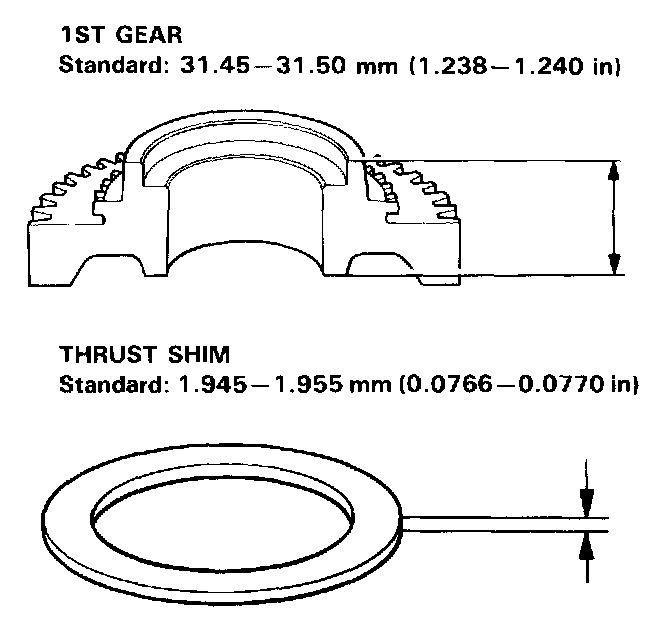

2. If the clearance exceeds the service limit, measure the thicknesses of 1st gear and thrust shim.
- If the thicknesses of 1st gear and thrust shim are less than the standard, replace with a new one.
- If the thicknesses of 1st gear and thrust shim are within the standard, replace the 1st/2nd synchro hub with a new one.

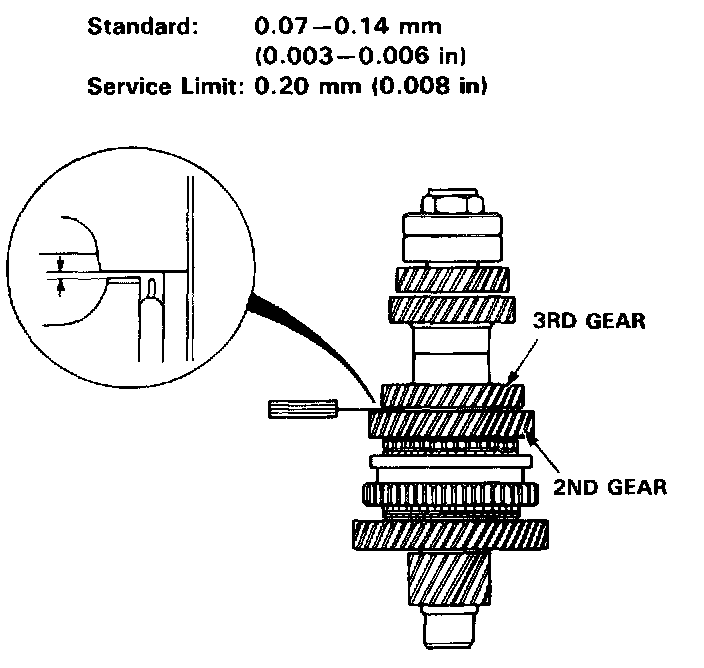

3. Measure the clearance between the 2nd and 3rd gears.

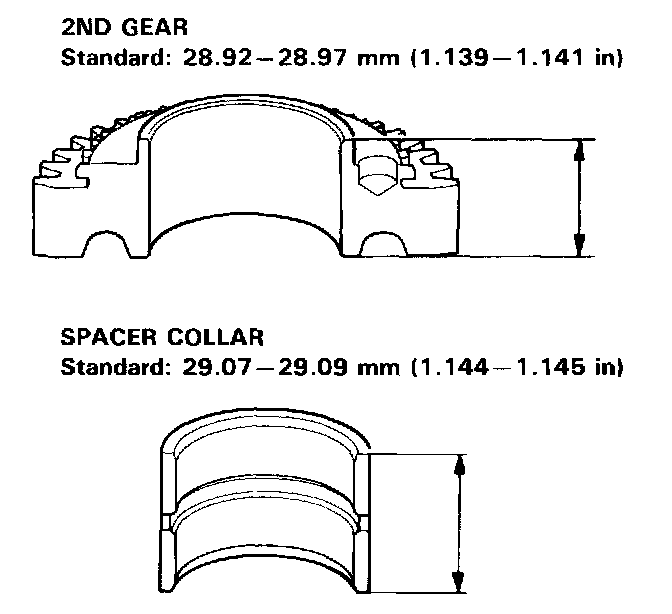

4. If the clearance exceeds the service limit, measure the thicknesses of 2nd gear and spacer collar.
- If the thicknesses of 2nd gear and spacer collar are less than the standard, replace with a new one.
- If the thicknesses of 2nd gear and spacer collar are within the standard, replace the 1st/2nd synchro hub with a new one.
