Troubleshooting Flowchart
Troubleshooting Flowchart

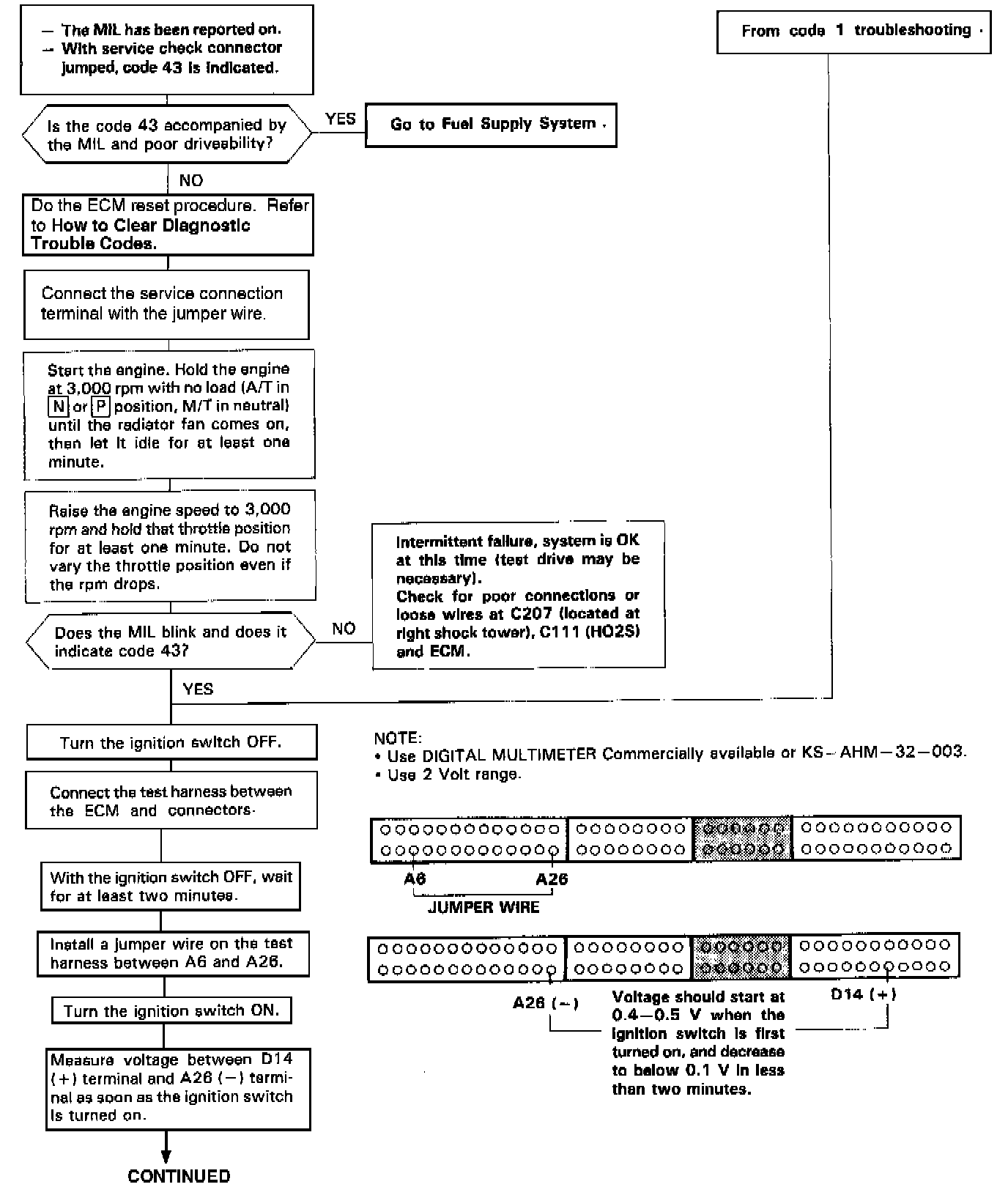

DTC 43 / Fuel Supply System (part 1 of 2):

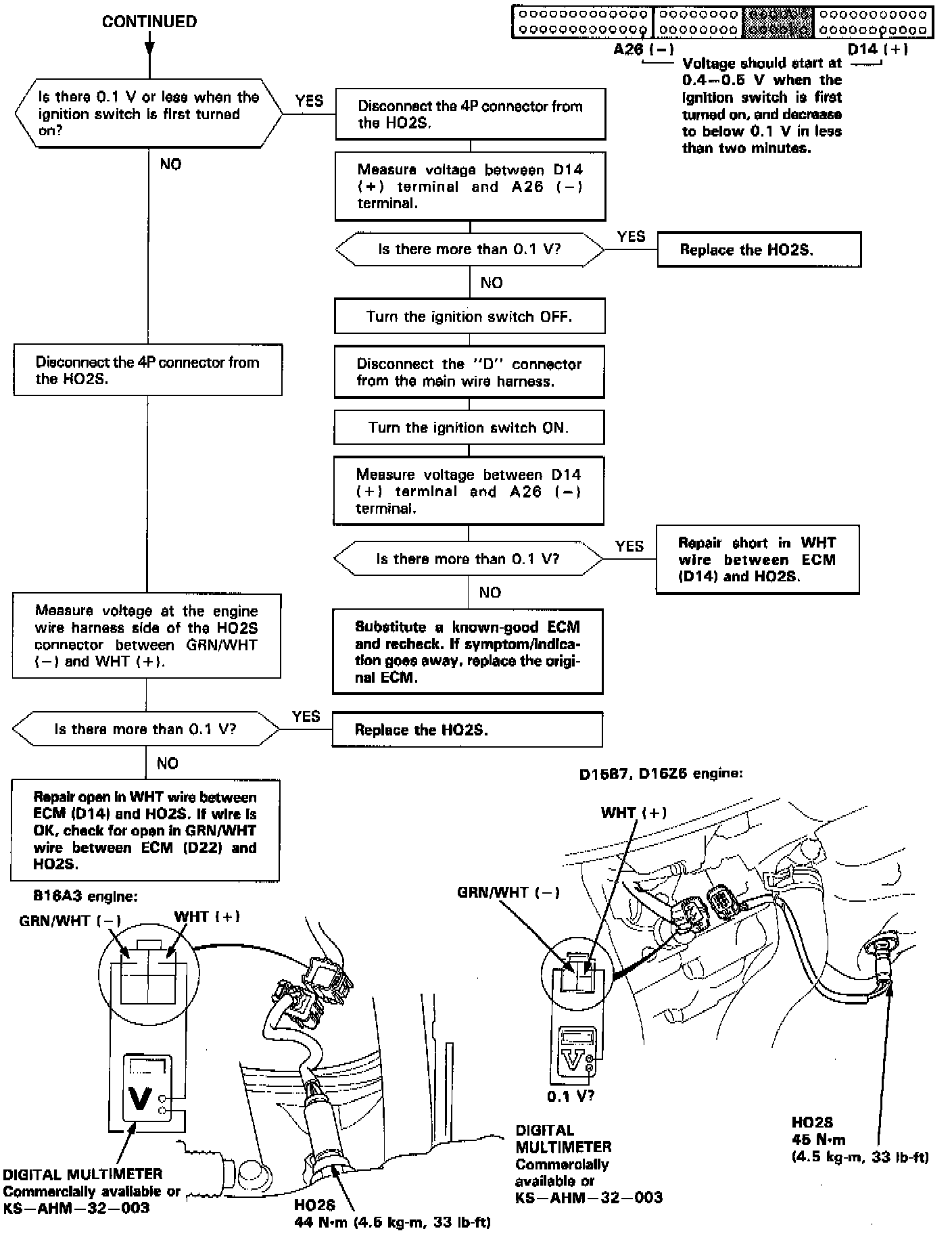

DTC 43 / Fuel Supply System (part 2 of 2):
