Home >> Honda >> 1995 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Programmed Fuel Injection (PGM-FI) System

Programmed Fuel Injection (PGM-FI) System

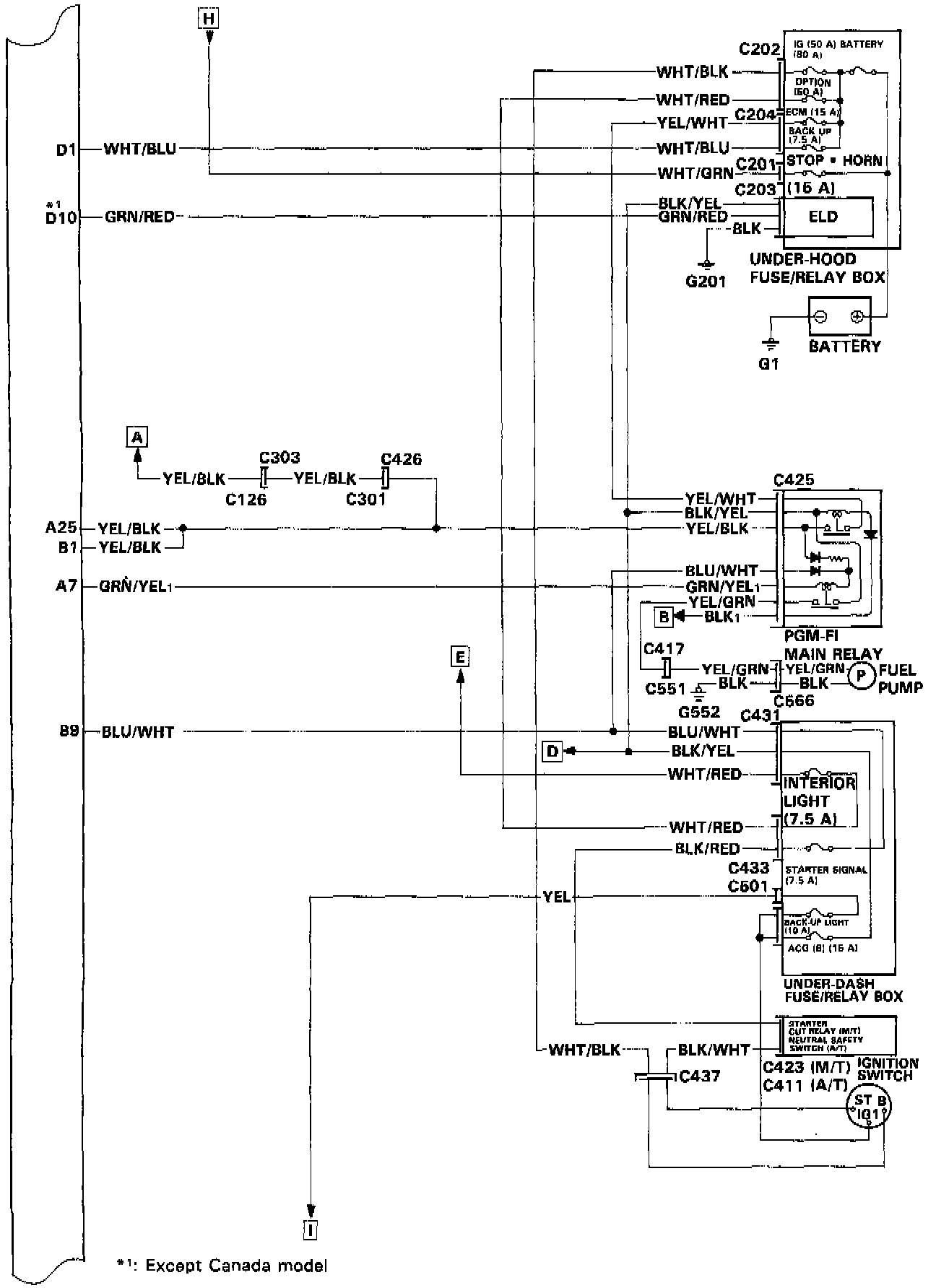

Electrical Connections:

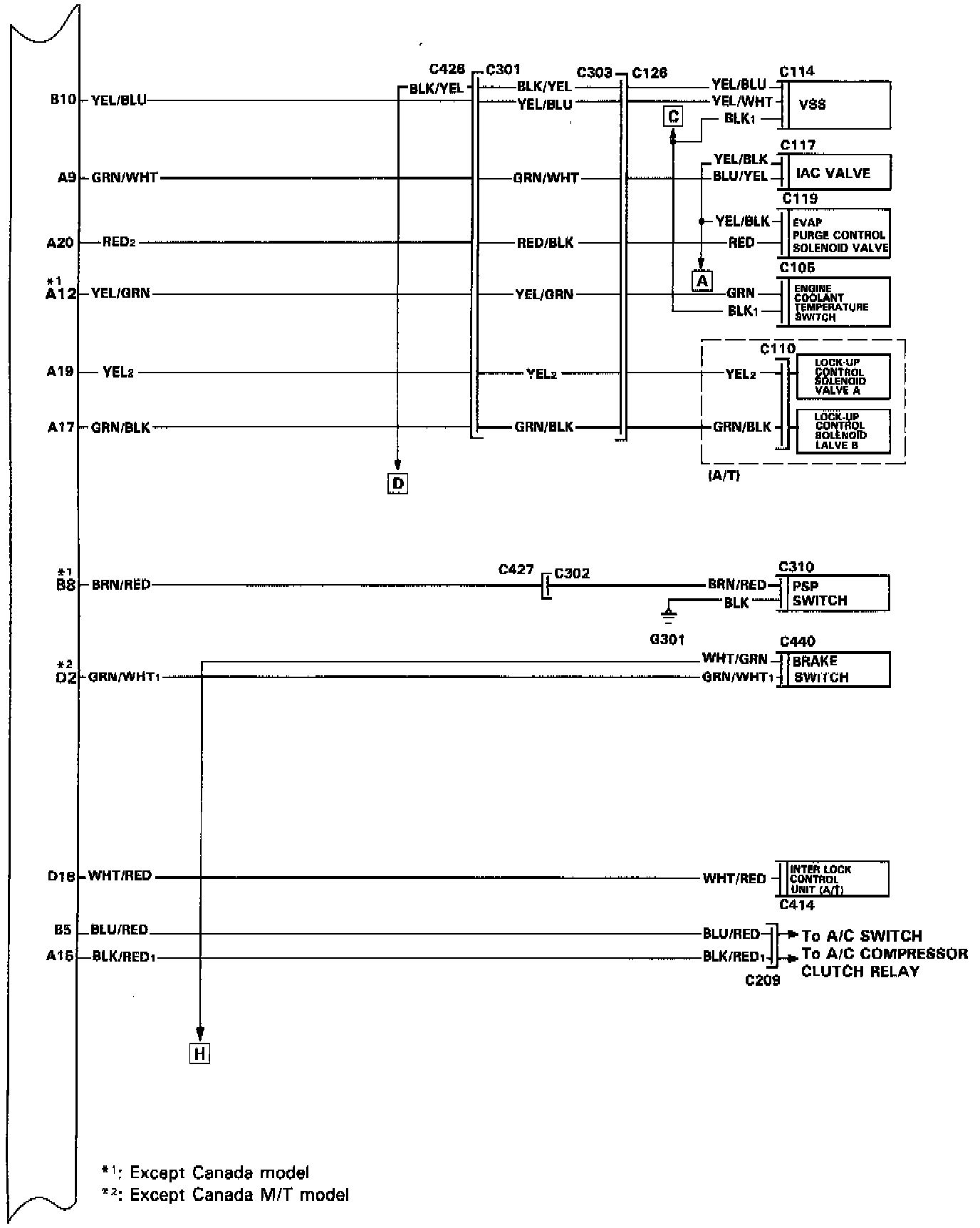

Electrical Connections / Terminal Locations:

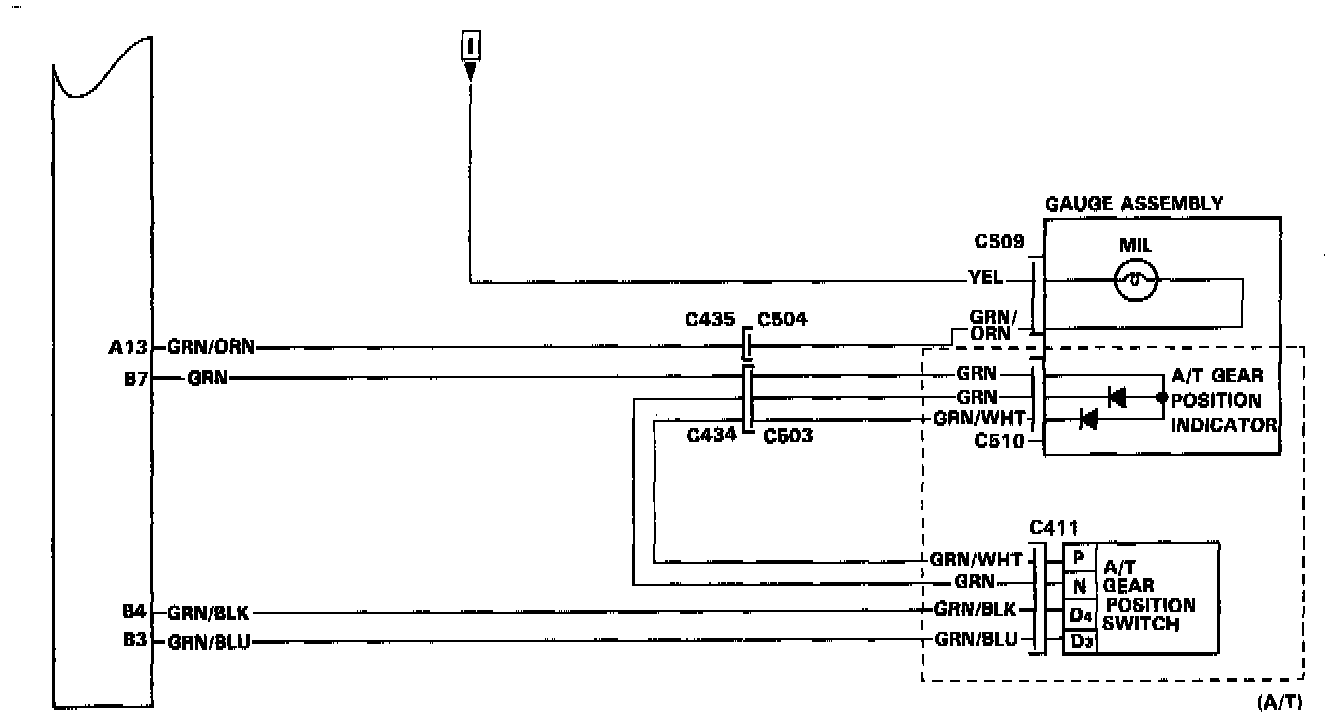

Electrical Connectors:

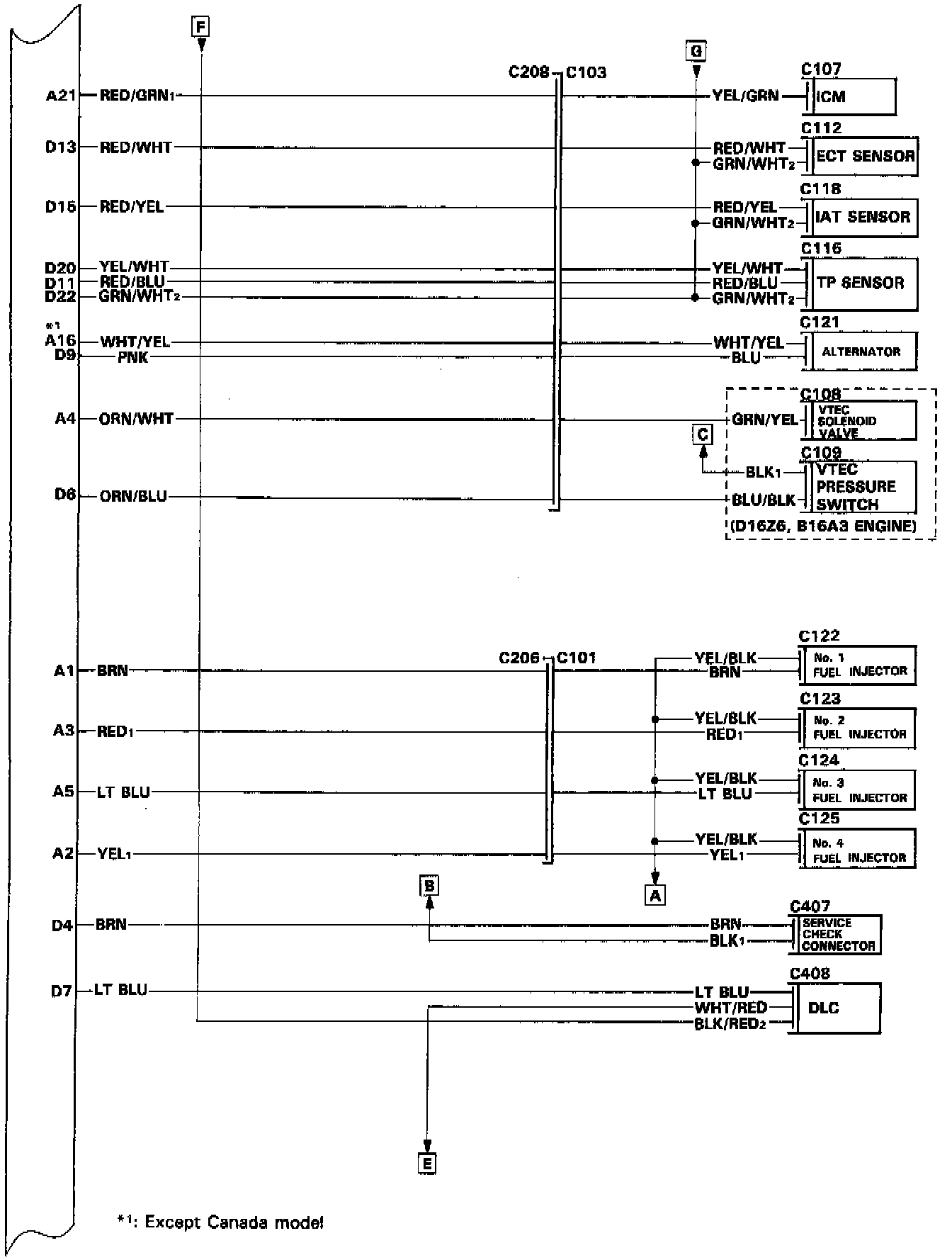

Electrical Connectors:

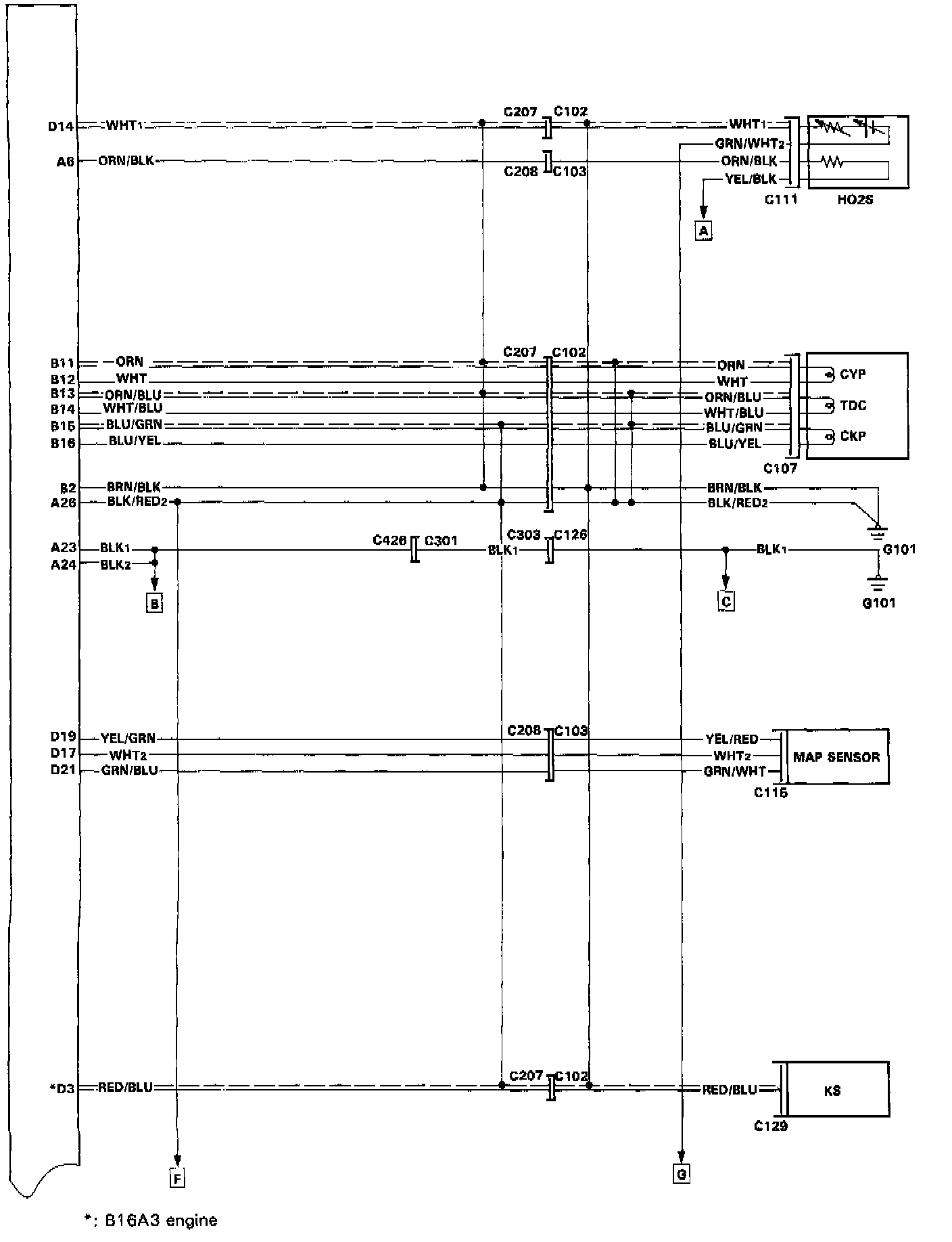

Electrical Connectors:

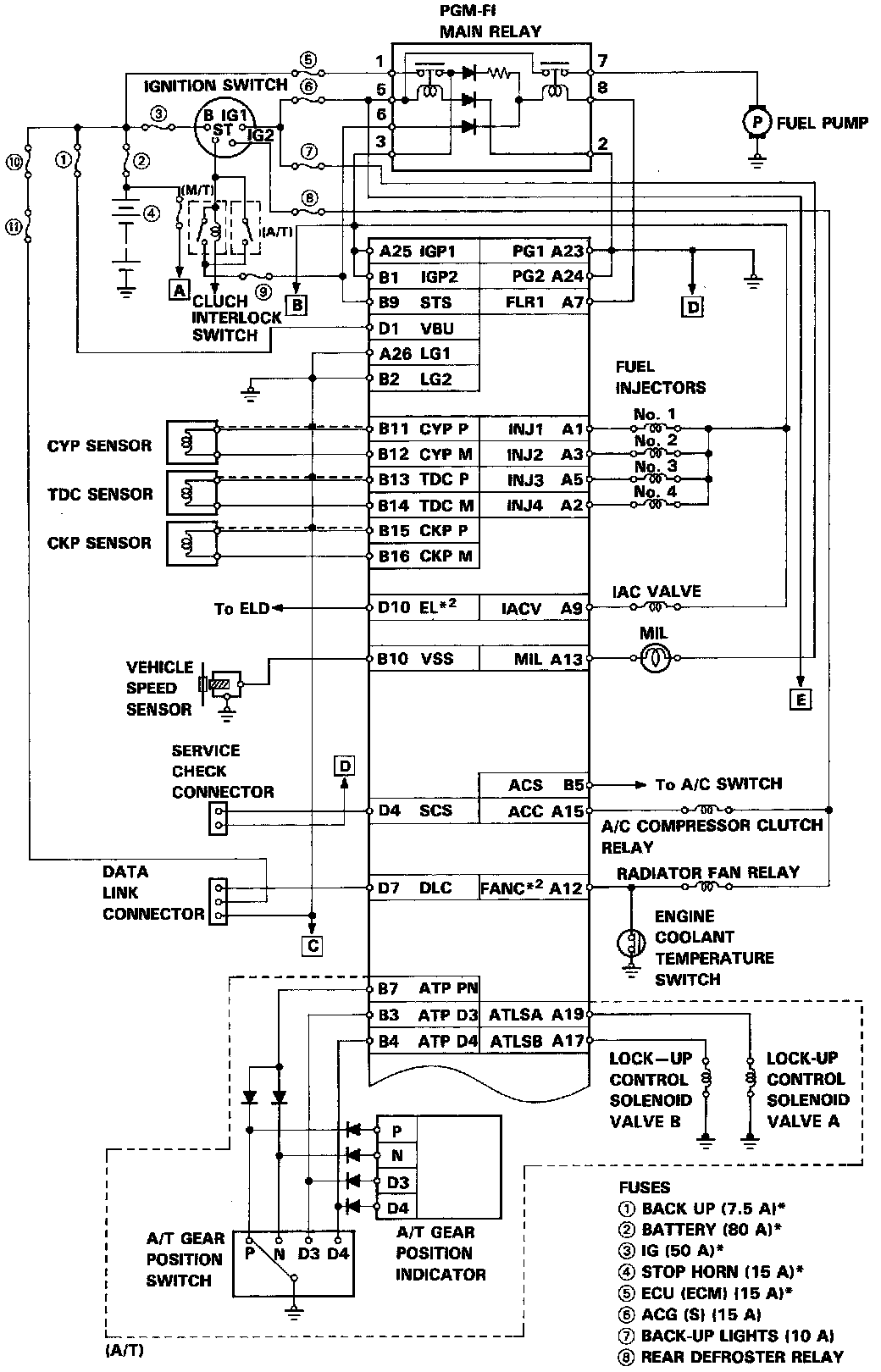

Electrical Connectors:



Electrical Connectors:
