A/T Shift Position Switch Signal
A/T Shift Position Switch Signal

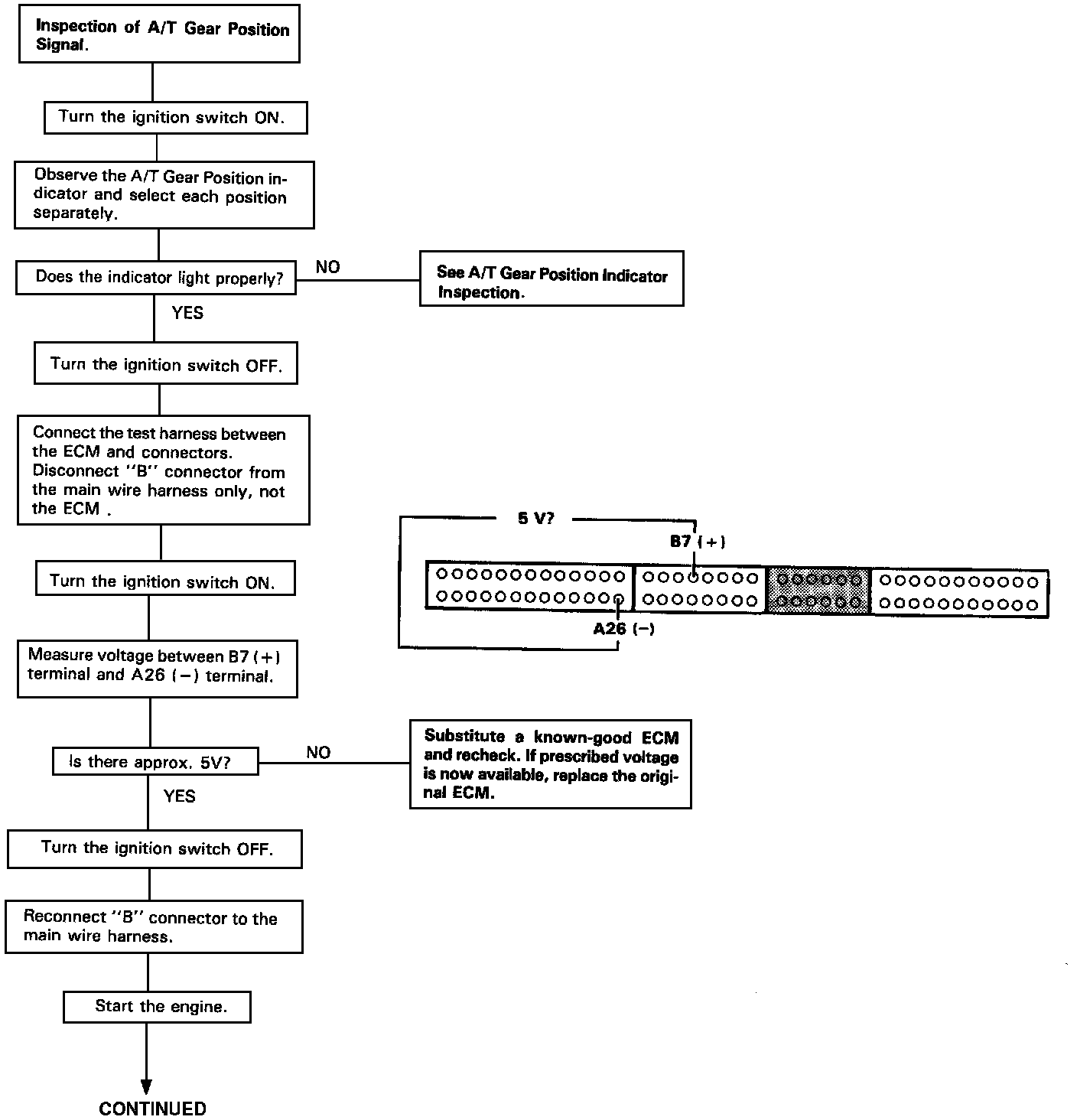

Automatic Transaxle Gear Position Signal (part 1 of 2):

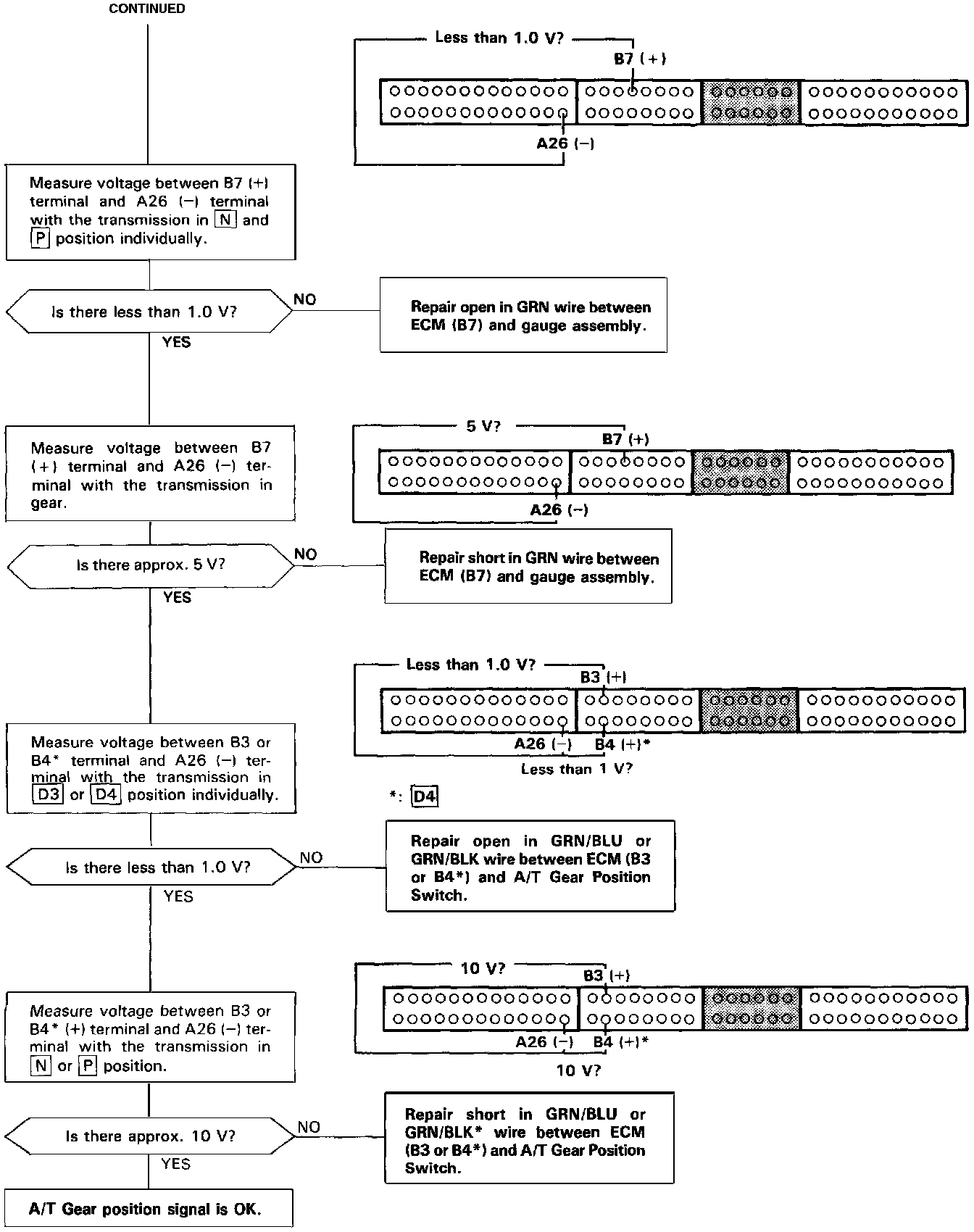

Automatic Transaxle Gear Position Signal (part 2 of 2):
