Diagnosis: Overview

DIAGNOSIS

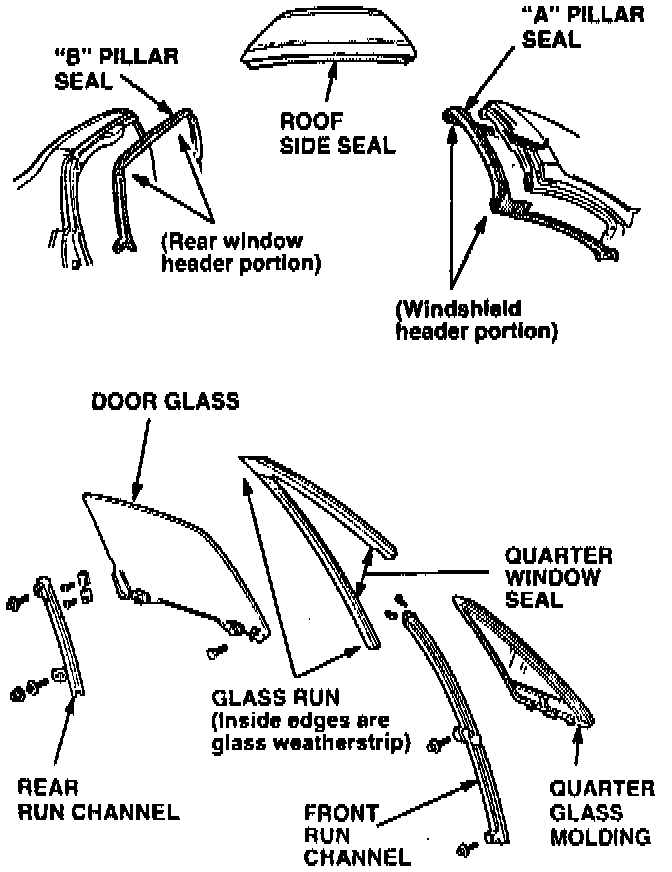

Refer to this illustration for correct part names.

These conditions are not considered leaks:

^ Water running off the roof drips inside when you open the door or roll down the window.

NOTE:
The later design "A" pillar seal has built-in diverters to reduce this effect but, under certain conditions, some water may still drip inside the car.

^ After you close the door, one or two drops of water fall from the "drip rail" on the "A" pillar seal.

^ Condensation forms on the glass, between the inner and outer sealing surfaces of the "B" pillar seal or roof side seals.

^ Water under high pressure leaks past a seal. The seals cannot remain watertight under pressures that distort their installed shape.

Water entering from around the roof is considered a leak if it occurs with the car in any of these situations:

^ Sitting in the rain

^ Being driven in the rain

^ Being washed with a free-flowing hose

You can stop these leaks if you diagnose the problem and make repairs exactly as described in this bulletin.
