Leak Locations and Repair

LEAK LOCATIONS AND REPAIRS

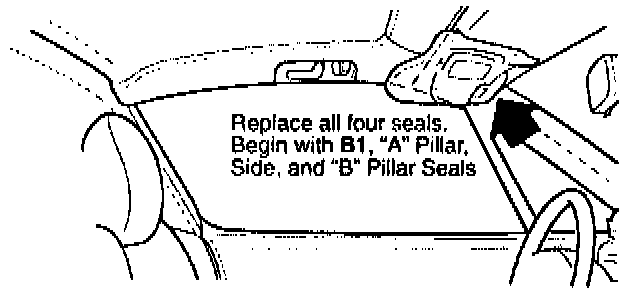

After verifying a leak, match it with one of the following illustrations, and refer to the repair listed (the black arrows represent leaks; the passenger's side is the same as the driver's).

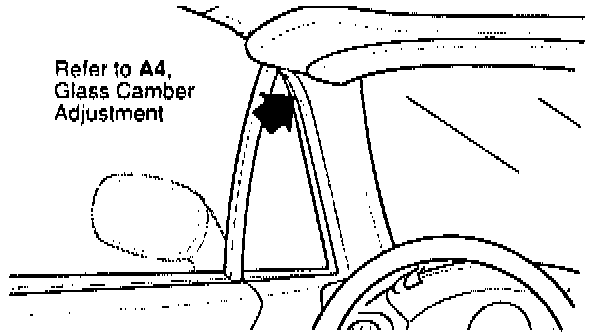

Quarter Window to Frame, or Glass to Molding

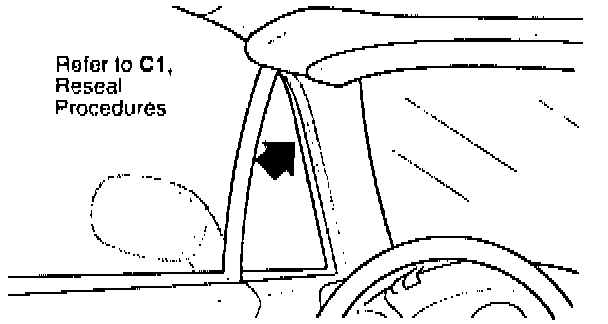

Quarter Window Seal to "A" Pillar Seal

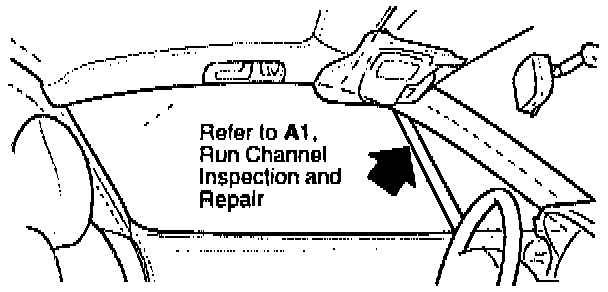

Glass Run Weatherstrip to Door Glass

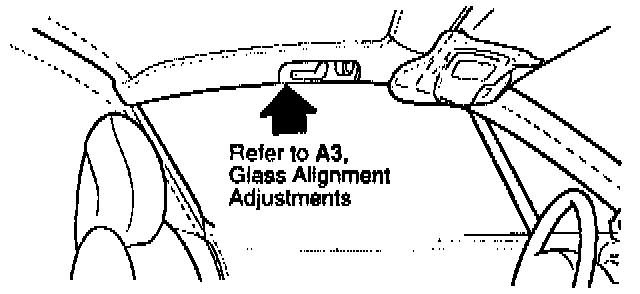

Top of the Glass Run

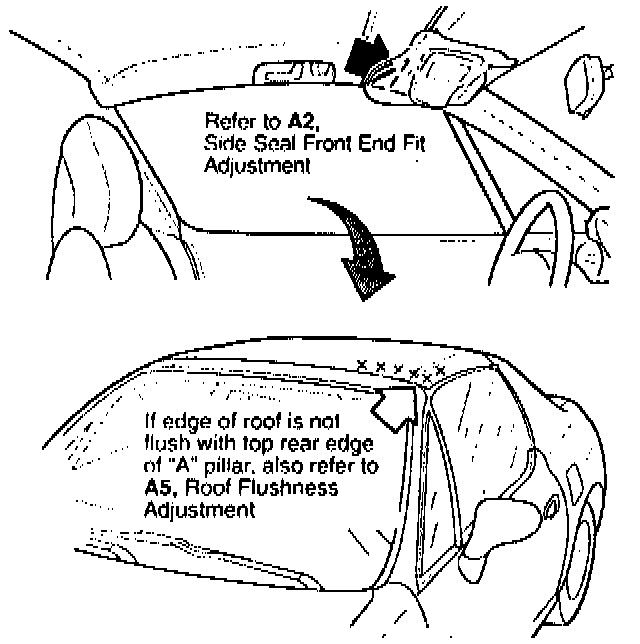

Side Seal Front End to "A" Pillar Seal

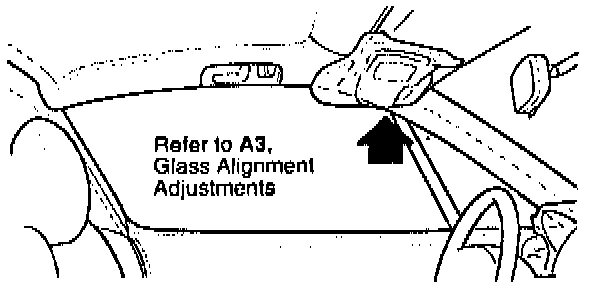

"A" Pillar Seal to "A" Pillar (drips off sun visor)




Side Seal to Door Glass




Side Seal Rear End to "B" Pillar Seal
