DTC 6-4

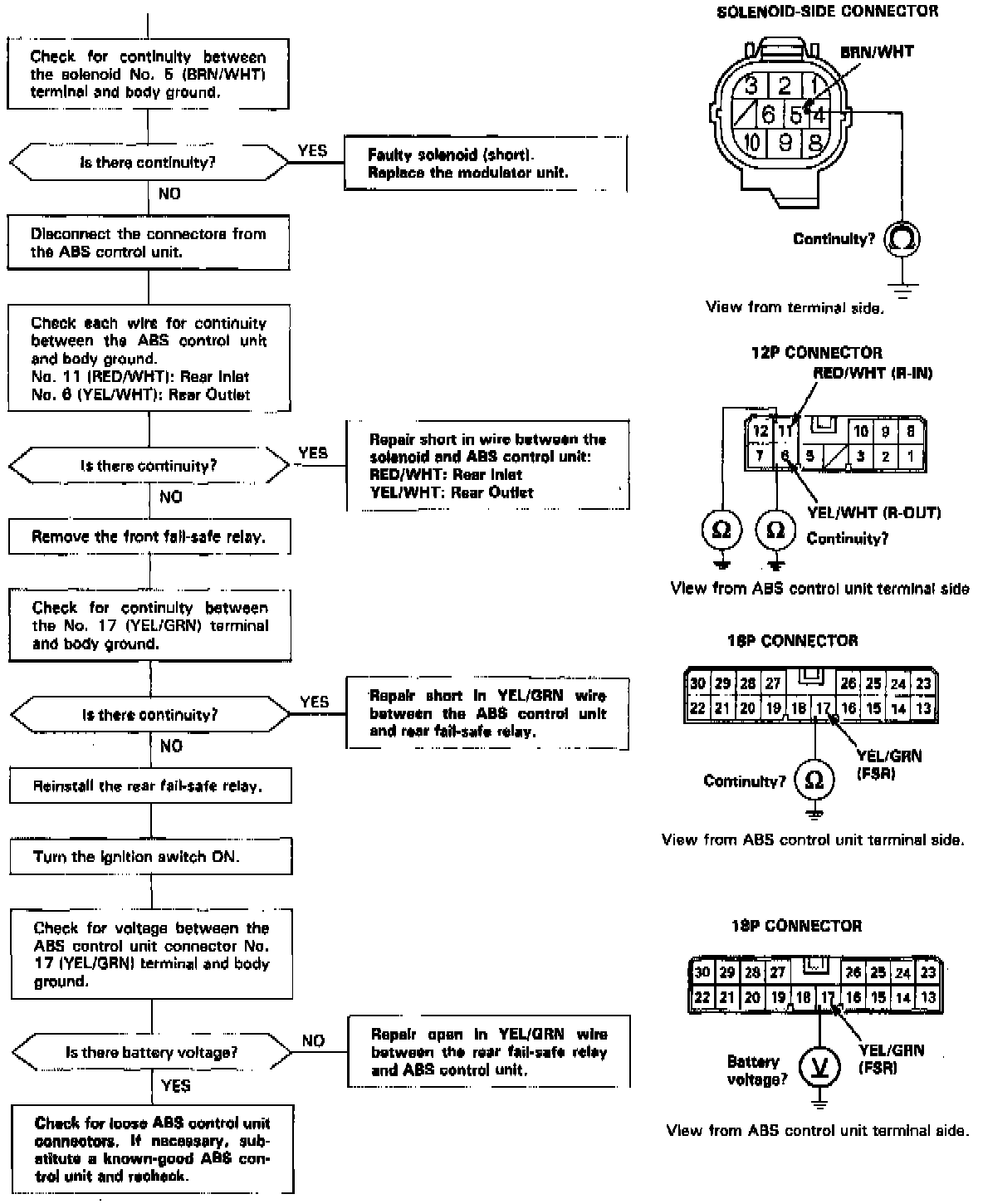

Fig. 78 Code 6-4: Rear Fail-Safe Relay Circuit (Part 1 Of 2):




Fig. 78 Code 6-4: Rear Fail-Safe Relay Circuit (Part 2 Of 2):





Refer to Fig. 78 for system diagnostic charts.
