Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 5-4
DTC 5-4

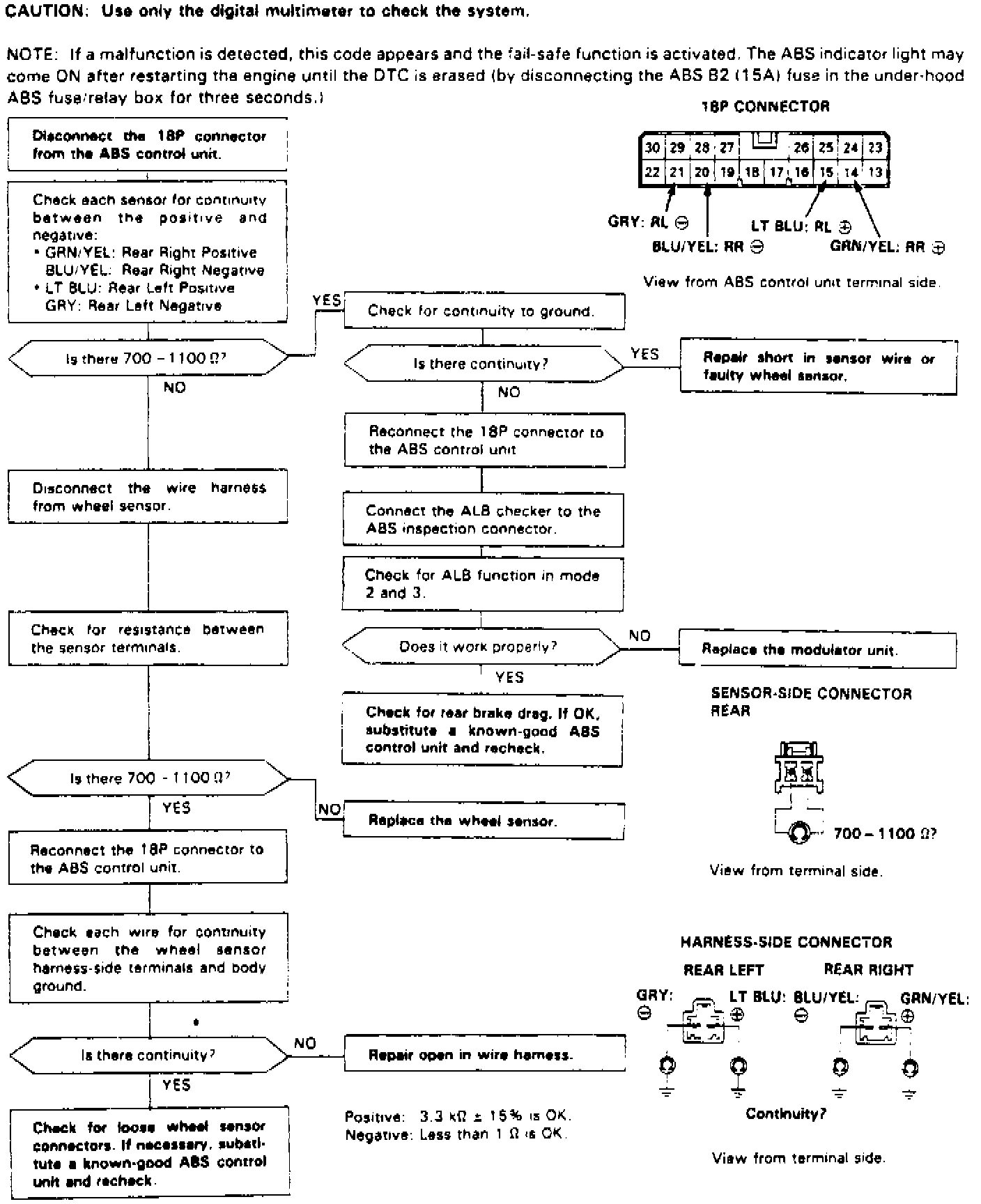

Fig. 76 Code 5 Through 5-8: Wheel Sensor:
Refer to
Fig. 76
for system diagnostic chart.
