Home >> Honda >> 1995 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 16

DTC 16

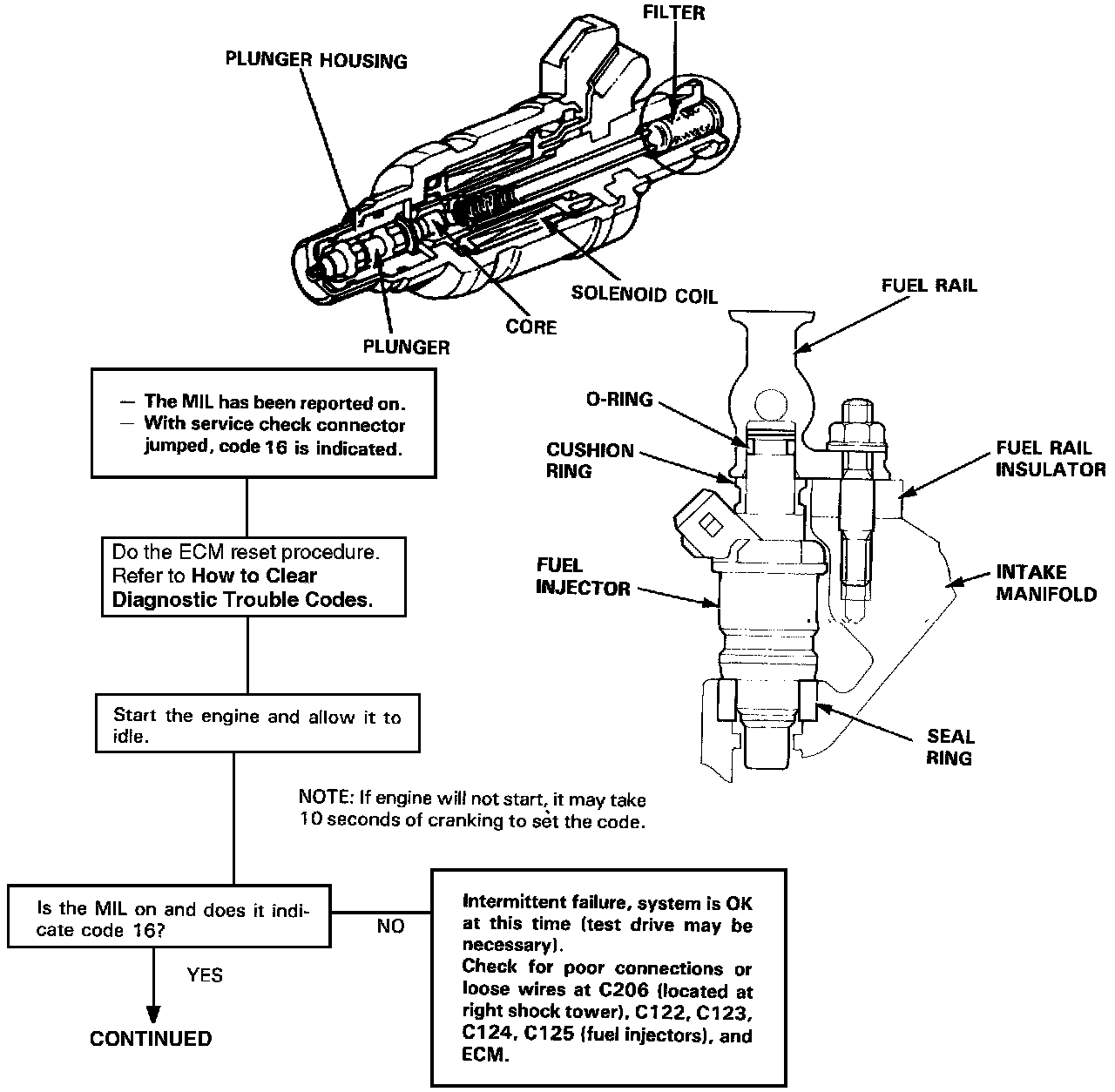

DTC 16 / Fuel Injectors (part 1 of 3):

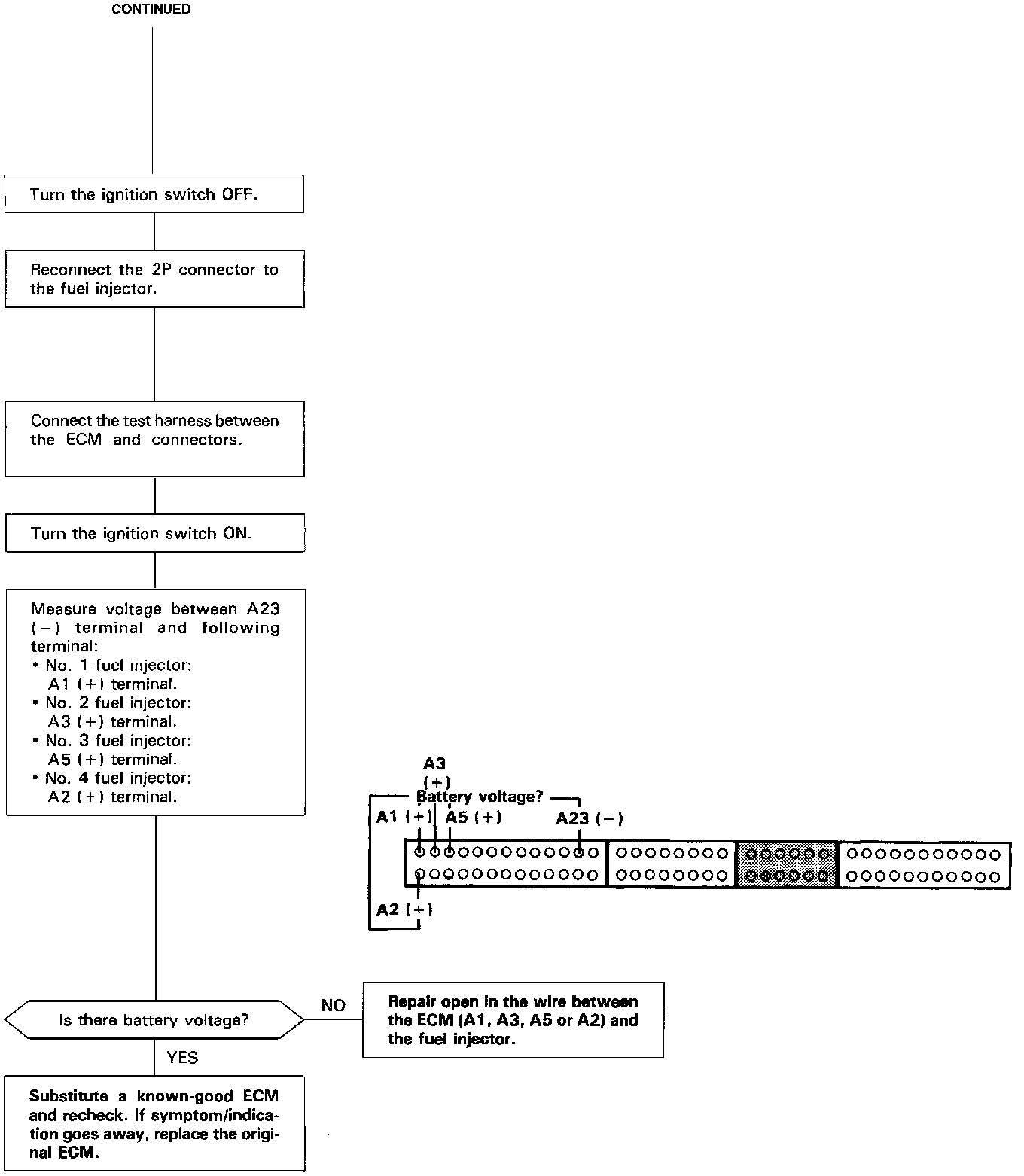

DTC 16 / Fuel Injectors (part 2 of 3):

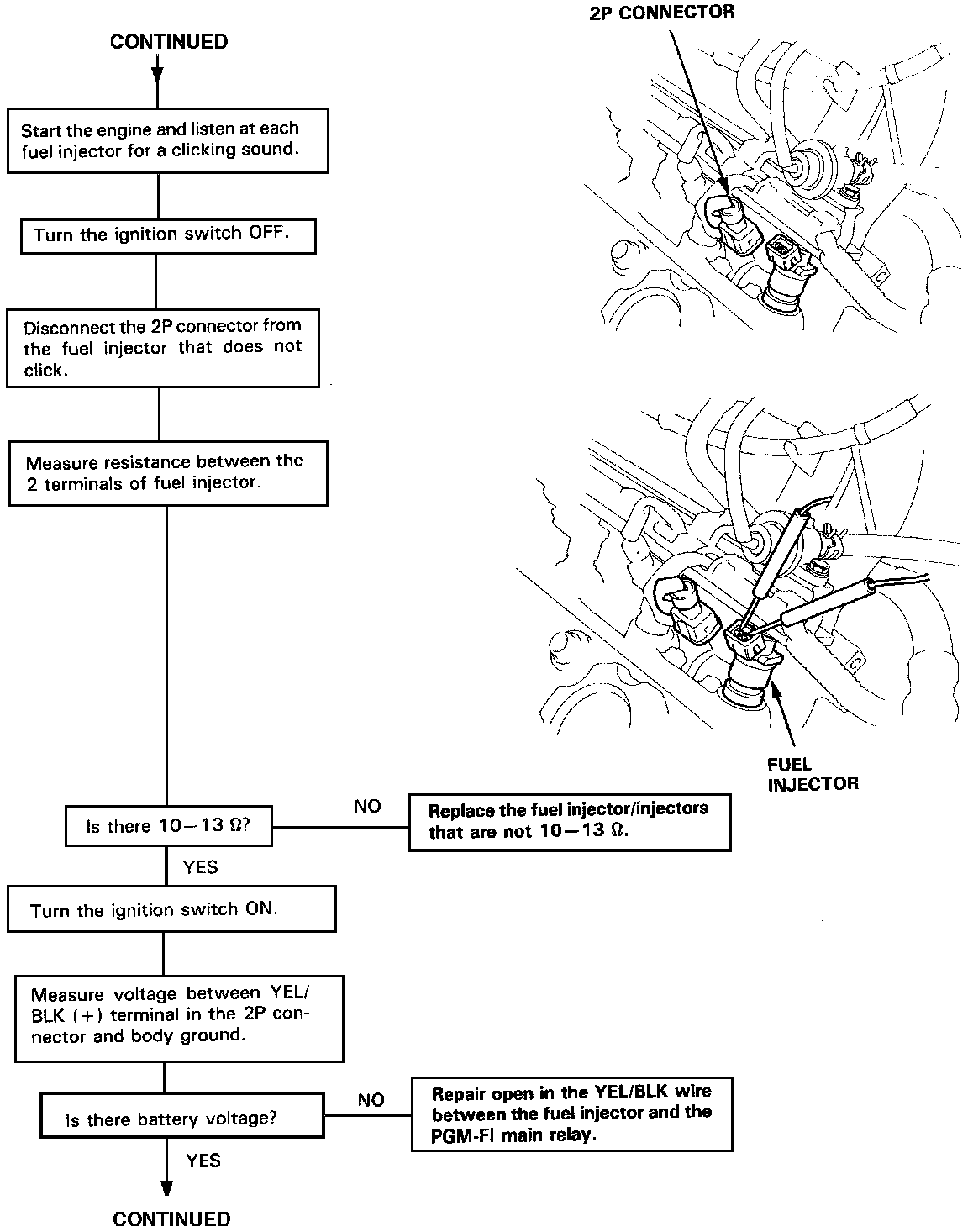

DTC 16 / Fuel Injectors (part 3 of 3):
