Rear Door Window Regulator: Service and Repair

Glass/Regulator Replacement






1. Remove:
- Door panel
- Plastic cover
- Corner sash trim

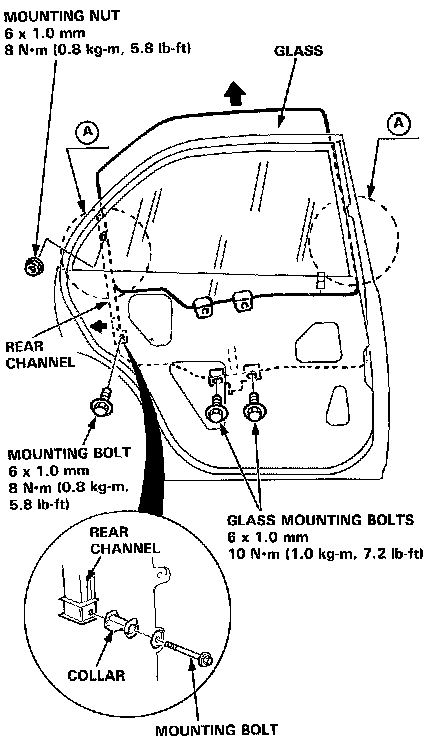

2. Remove the mounting not and mounting bolt attaching the rear channel.
3. Carefully move the glass until you can see the glass mounting bolts, then remove them. Carefully pull the glass out through the window slot.


NOTE:
- Take care not to drop the glass inside the door.
- Take care not to damage locations (A) of the glass run channel.

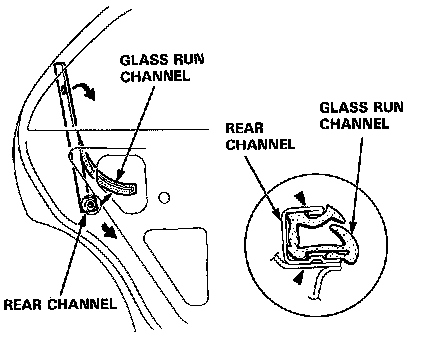

4. Peel the glass run channel Out of the rear channel, then remove the rear channel.

NOTE: After installing the rear channel, make sure the glass run channel is not twisted.

NOTE: To install, the glass run channel, fit it into the reat channel an shown.

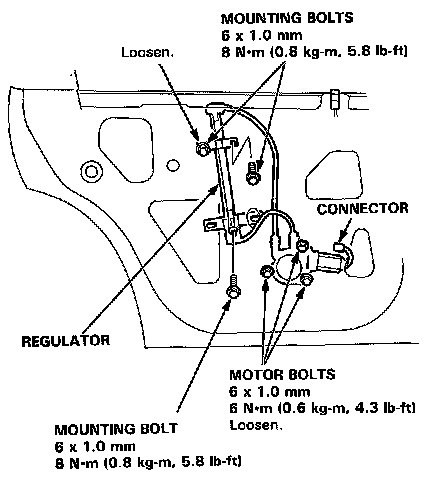

5. Remove the two mounting bolts. Loosen the mounting bolt and three motor bolts. Disconnect the connector (power window model). Remove the regulator through the center hole in the door.

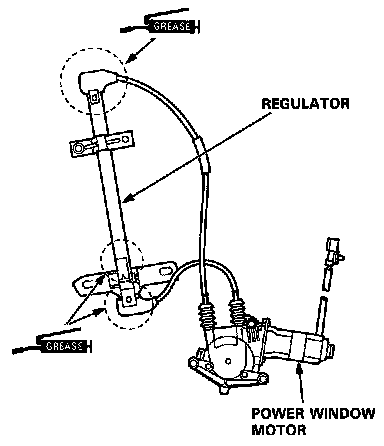

6. Grease all the sliding surfaces of the regulator where shown. Check that the regulator moves smoothly by connecting the regulator handle or a 12 V battery to the power window motor.
7. Installation is the reverse of the removal procedure.
8. Roll the glass up and down to see if it moves freely without binding. Also make sure that there is no clearance between the glass and glass run channel when the glass is closed. Adjust the position of the glass as necessary.
9. Attach the door harness to the door correctly.
10. When reinstalling the plastic cover, apply adhesive along the edge where necessary to maintain a contentious seal and prevent water leaks.
