Removal

1. Using solvent and brush wash any oil and dirt off the valve body and its lines. Blow dry with compressed air.

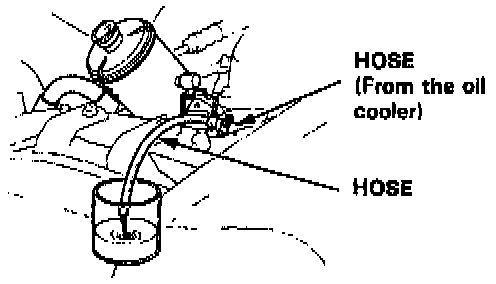

2. Raise the power steering reservoir and disconnect the hose that goes to the oil cooler.






3. Connect a hose of suitable diameter to the disconnected hose that goes to the oil cooler and put the hose end in a suitable container.

Caution: Clean up any spilled power steering fluid immediately.

4. Start engine and let idle. Turn the steering wheel from lock to lock several times.
5. When fluid stops running out of the hose, shut off the engine. Discard the old fluid.
6. Refit the return hose on the reservoir.
7. Raise front of vehicle and secure on jack stands.
8. Remove the front wheels.






9. Remove the steering joint cover.






10. Lock the steering shaft to stop the shaft from turning. Loosen the upper steering joint bolt and remove the lower steering join bolt. Move the joint toward the column.

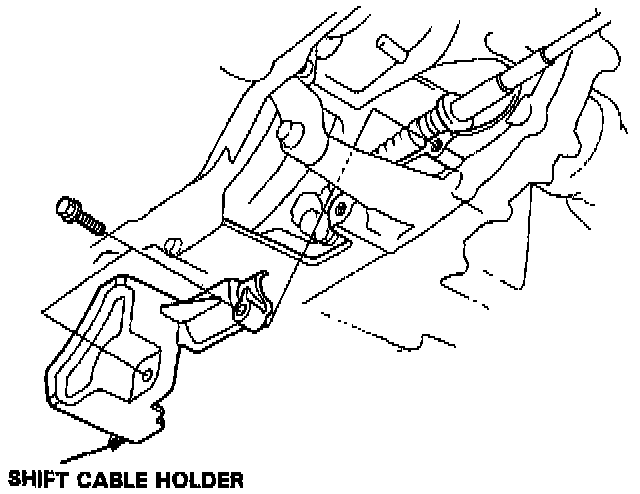

11. Remove the shift cable holder.

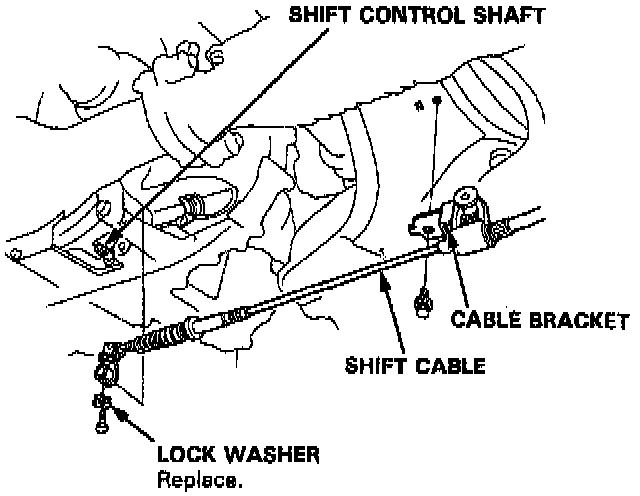

12. Remove the cable bracket and disconnect the shift cable from the shift control shaft.

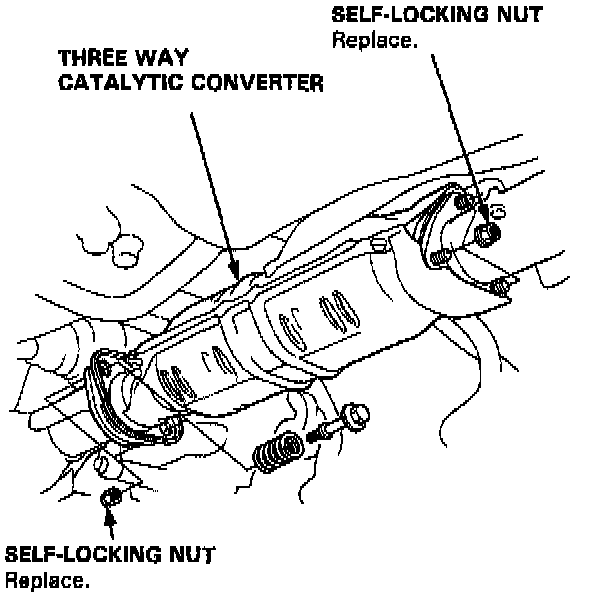

13. Remove the self-locking nuts and separate the three way catalytic converter.






14. Remove the cotter pin and castle nut. Install the 10mm hex nut on the ball joint.
15. Once the hex nut is flush with the ball joint pin end, use SST # 07MAC-SL00200 or equivalent and separate the tie-rod ball joint and knuckle.

Caution: Take care not to damage the ball joint dust boot.

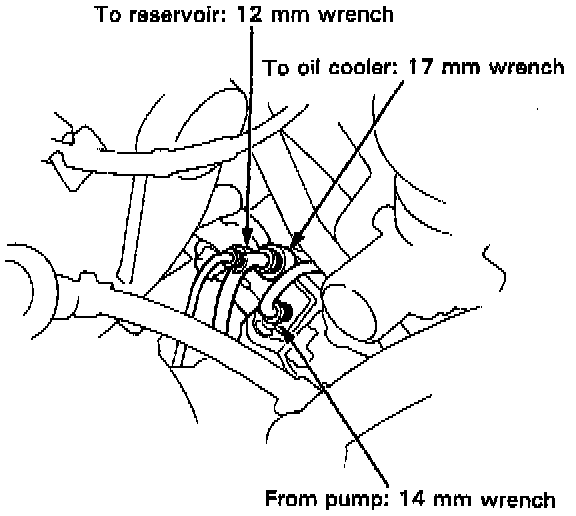

16. Disconnect the three lines from the valve body unit on the steering gearbox and immediately seal the hoses AND pipes to prevent contamination.






17. Remove the left tie-rod end, then slide the rack all the way to the right.






18. Remove the steering gearbox mounting bolts.

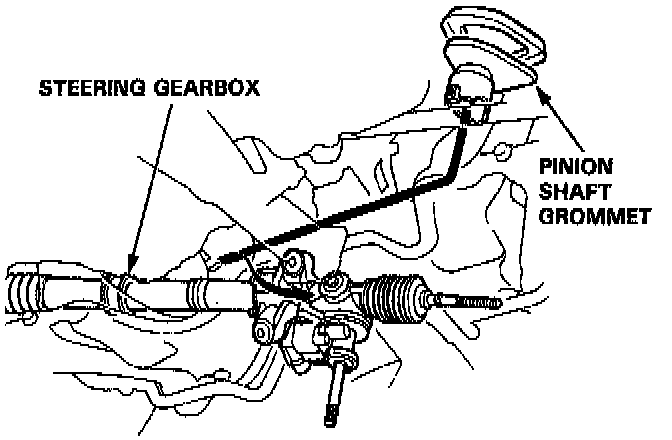

19. Pull the steering gearbox down to clear the pinion shaft from the bulkhead and remove the pinion shaft grommet.
20. Move the steering gearbox to the right so the left rack and clears the rear beam.
21. Hold the steering gearbox and slide the rack all the way to the left, place the left rack end below the rear beam.
22. Move the steering gearbox to the left and tilt the left side down and remove it from the car.
