With Manual Transaxle

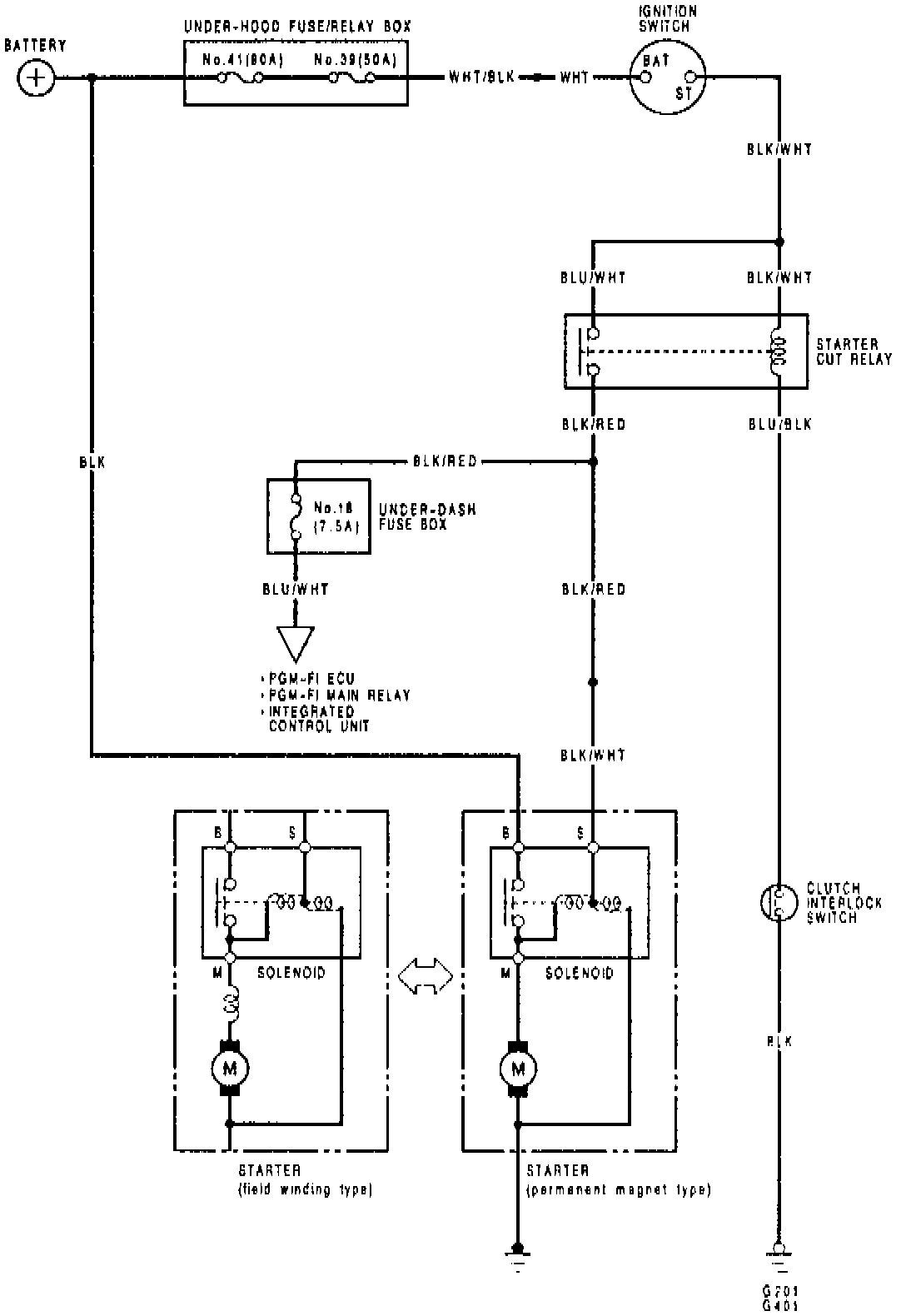

Fig. 6 Starting System Wiring Circuit:





Refer to Fig. 6 when testing this starter.
