With Manual Transaxle
With Manual Transaxle

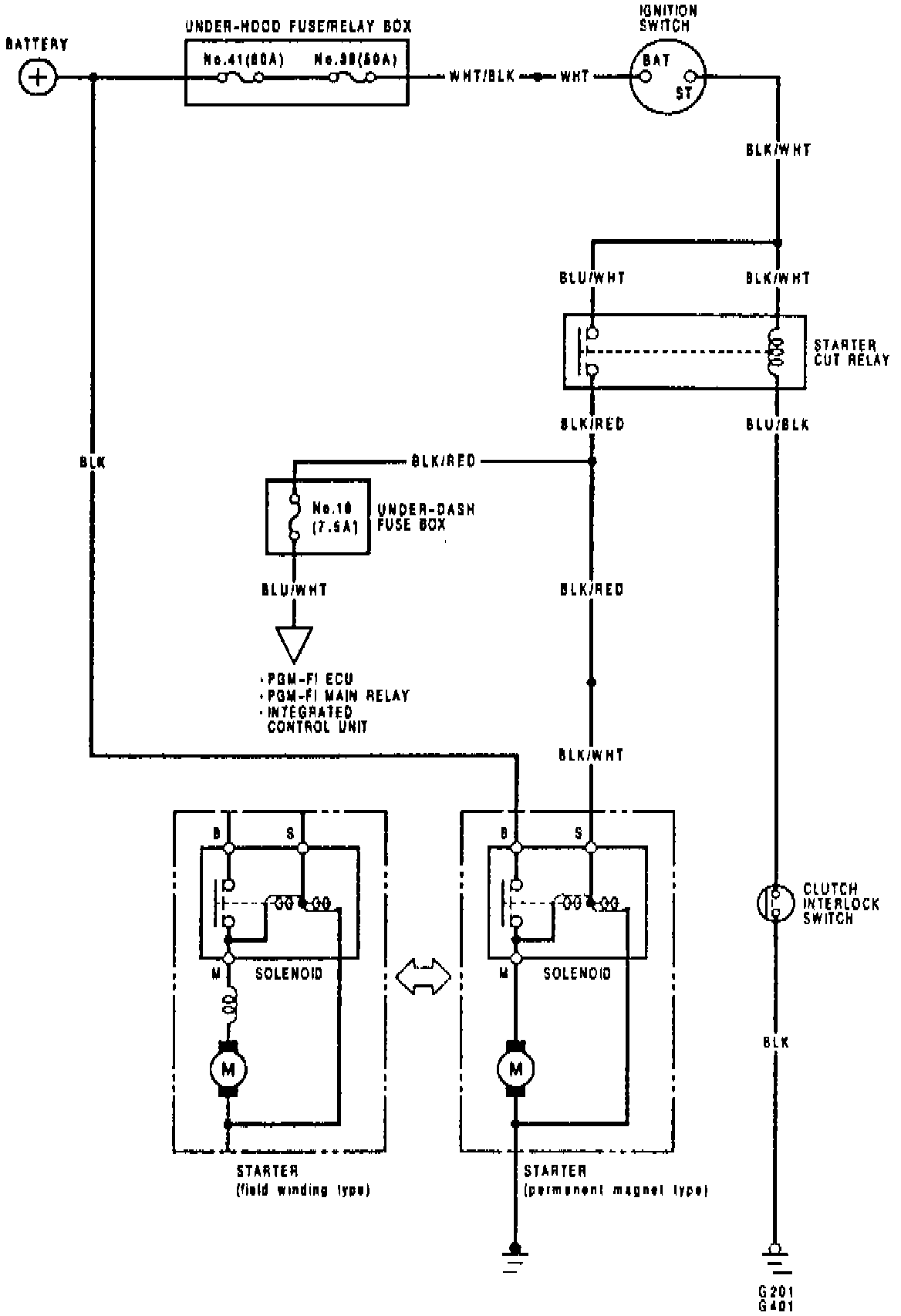

Fig. 5 Starting System Wiring Circuit W/Manual Transaxle:
Refer to
Fig. 5
when testing starter system.
