Home >> Honda >> 1995 >> Civic Hatchback L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> Hitachi Starters >> With Manual Transaxle

With Manual Transaxle

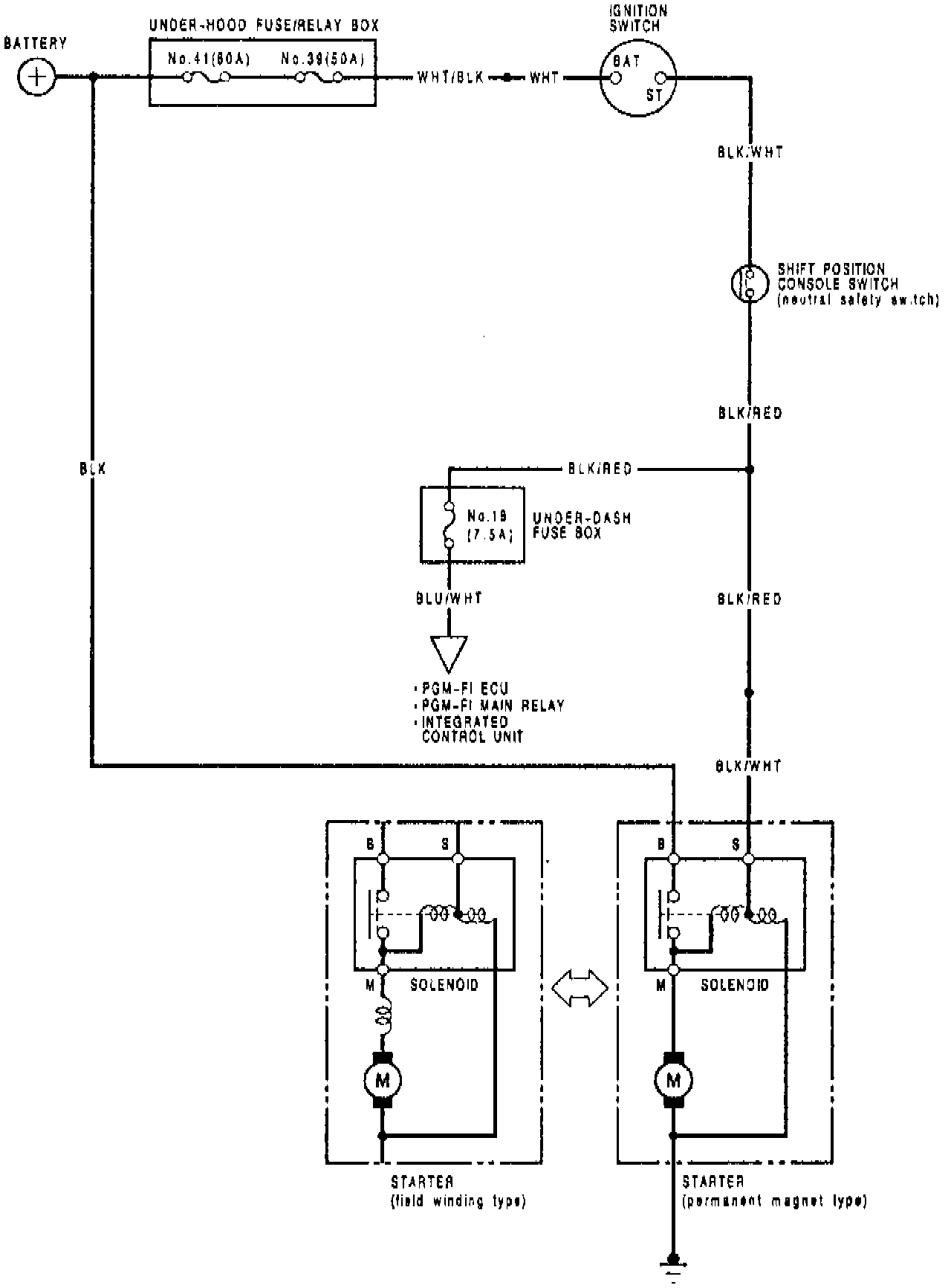

Fig. 3 Starting System Wiring Circuit:





Refer to Fig. 3 when testing starting systems.
