With Automatic Transaxle

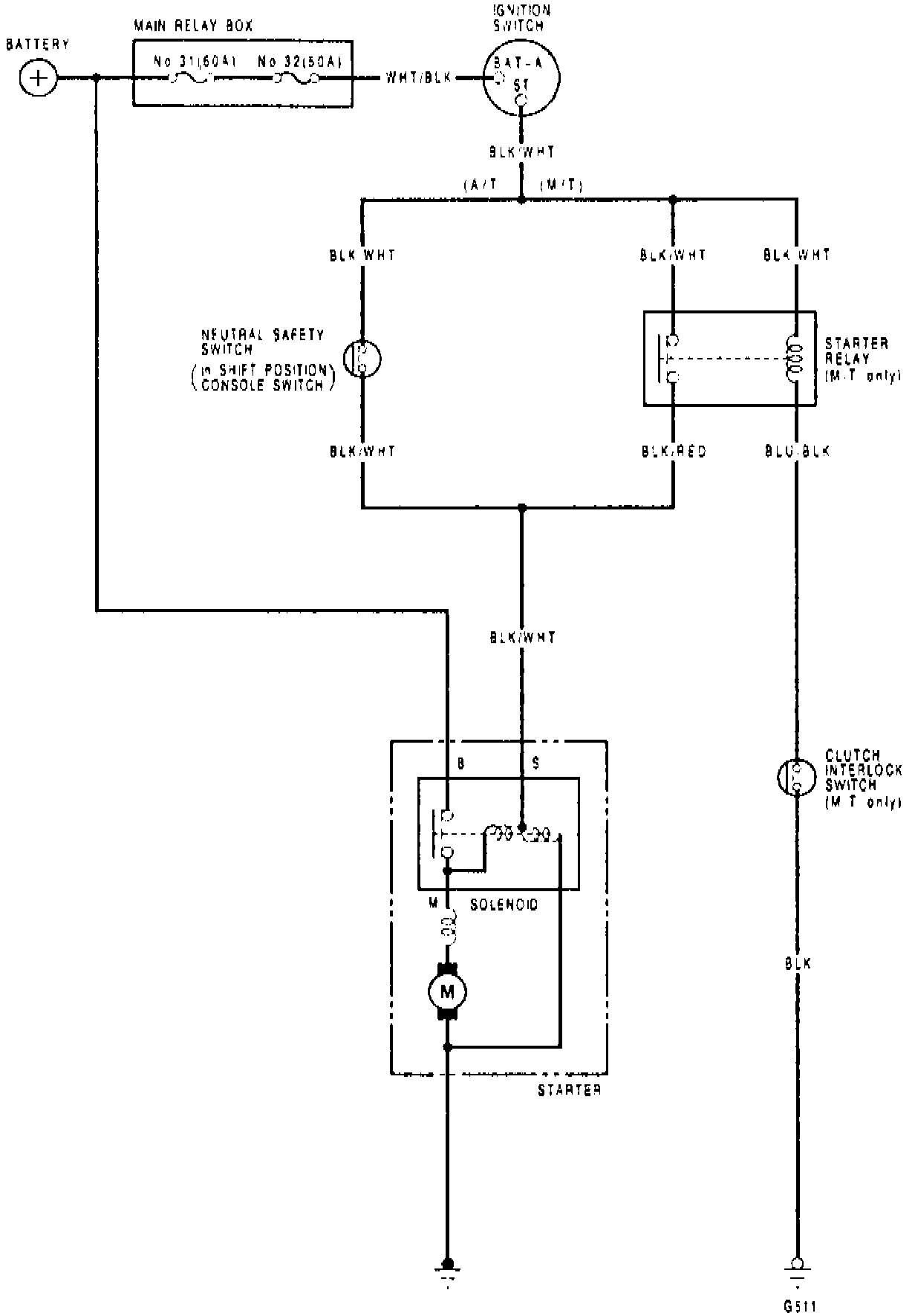

Fig. 2 Starting System Wiring Circuit. Automatic Transaxle:





Refer to Fig. 2 when testing starting systems.
