Nippondenso Alternator

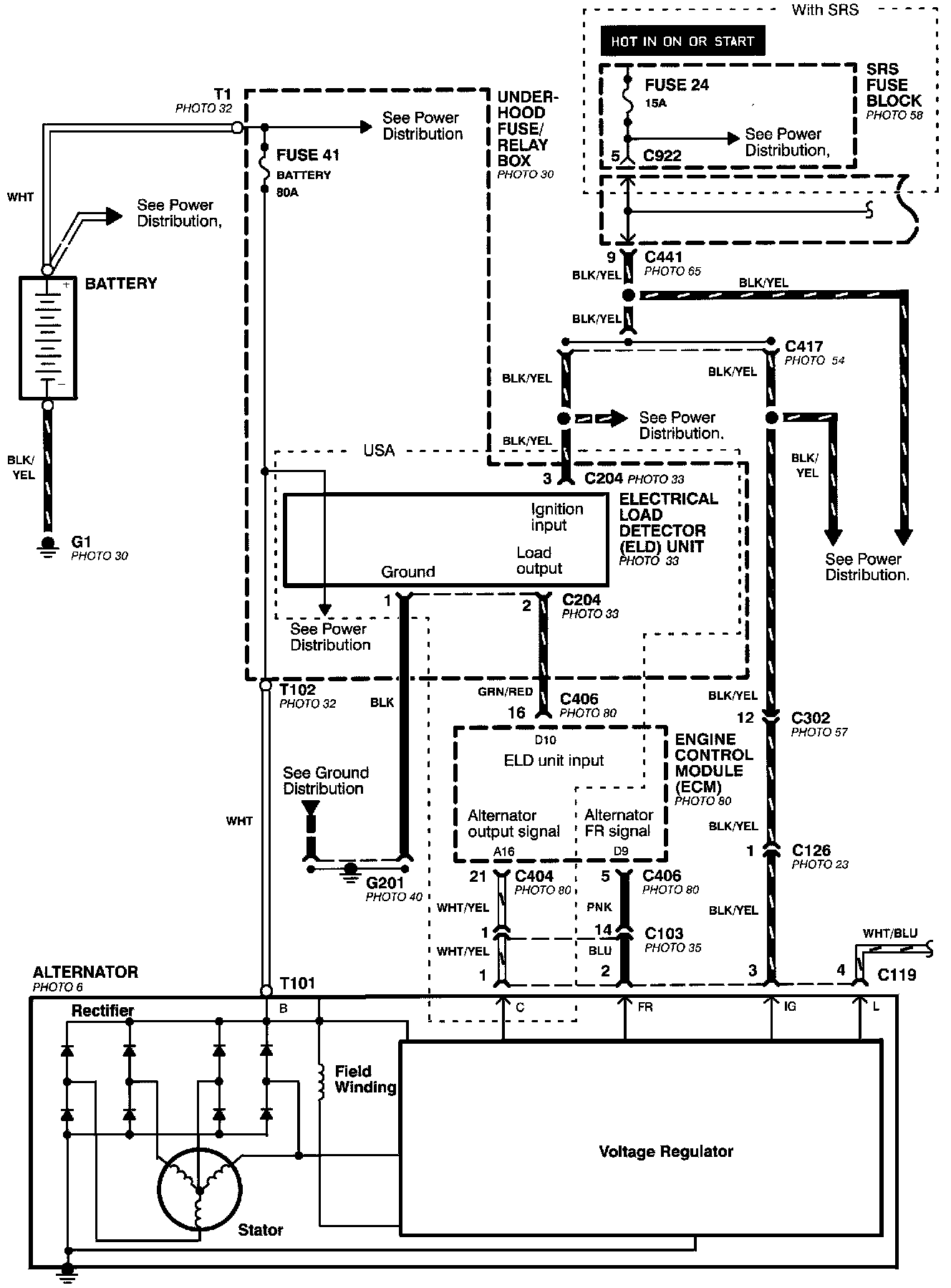

Charging System- Nippondenso Type (Part 1 Of 2):

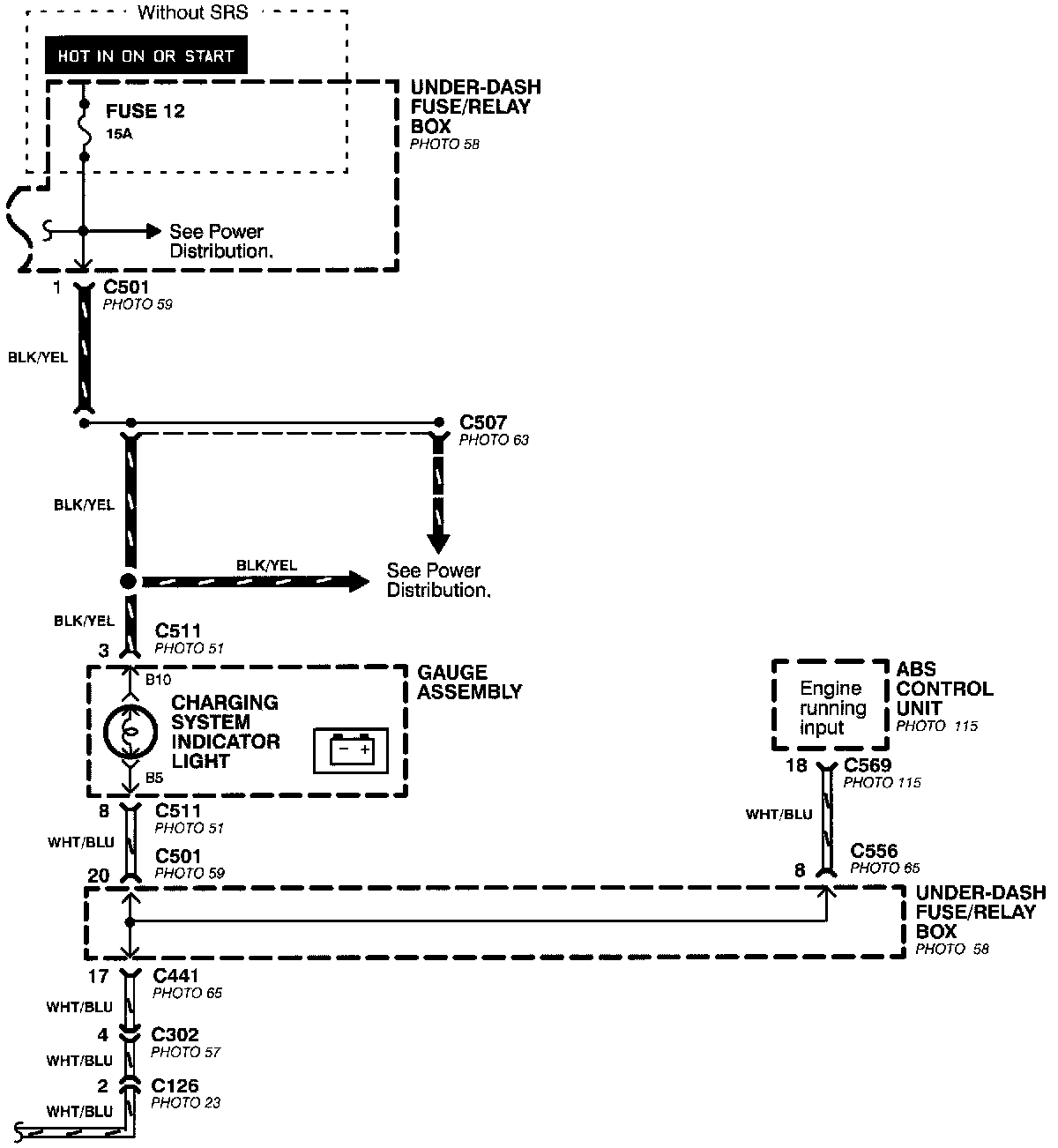

Charging System- Nippondenso Type (Part 2 Of 2):
