Torque Specifications

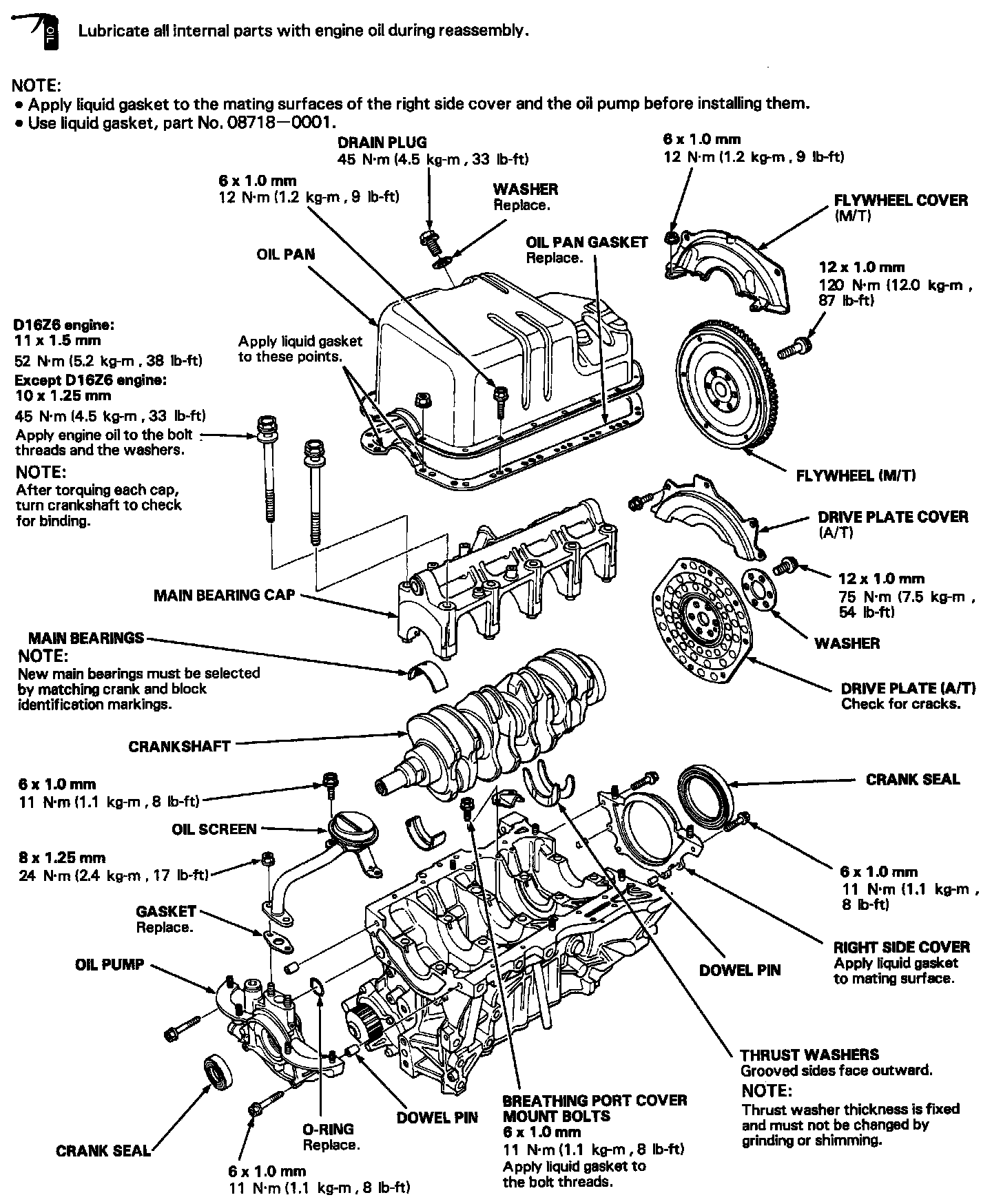

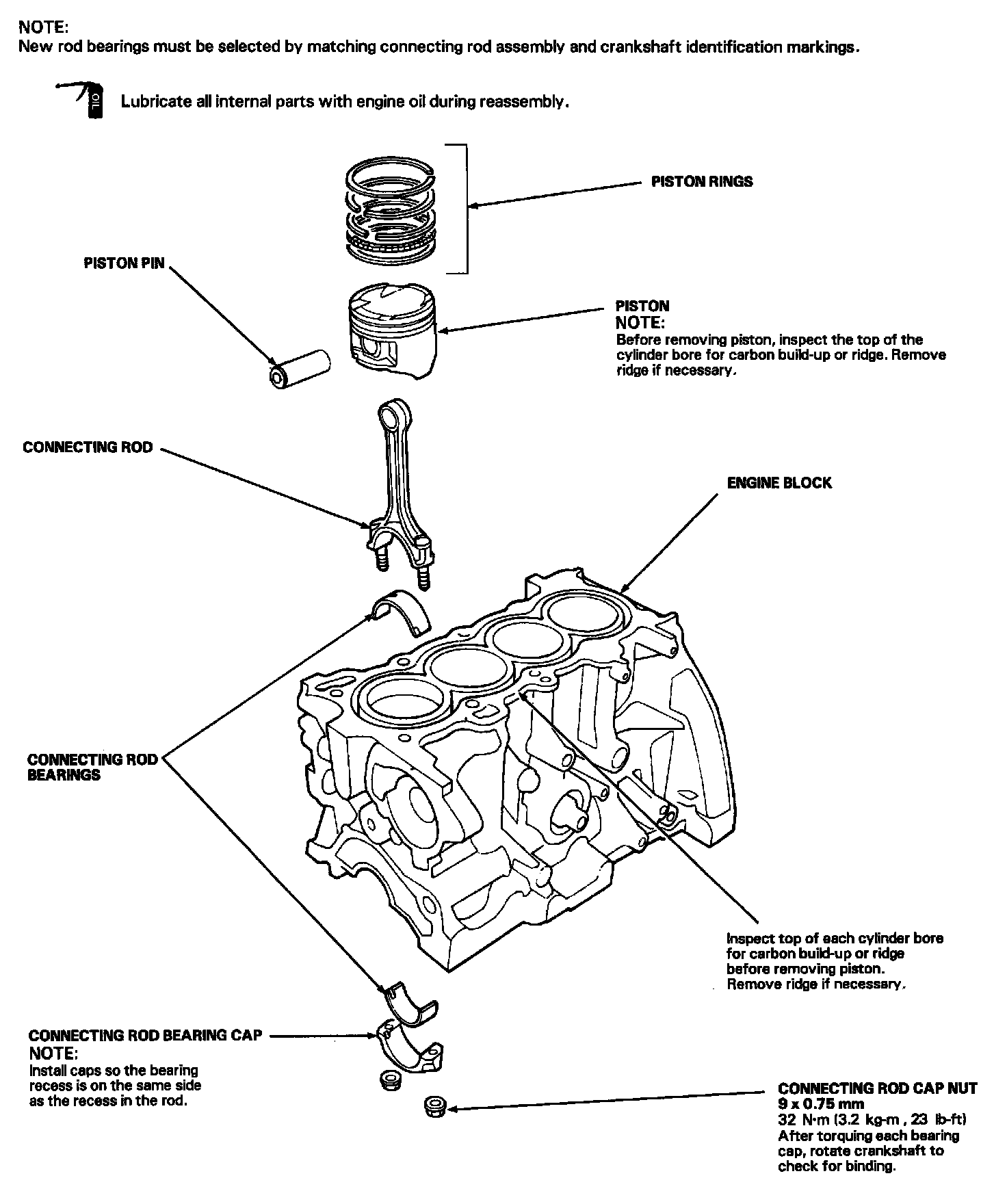

Lower Engine:





Flywheel (M/T) Torque:

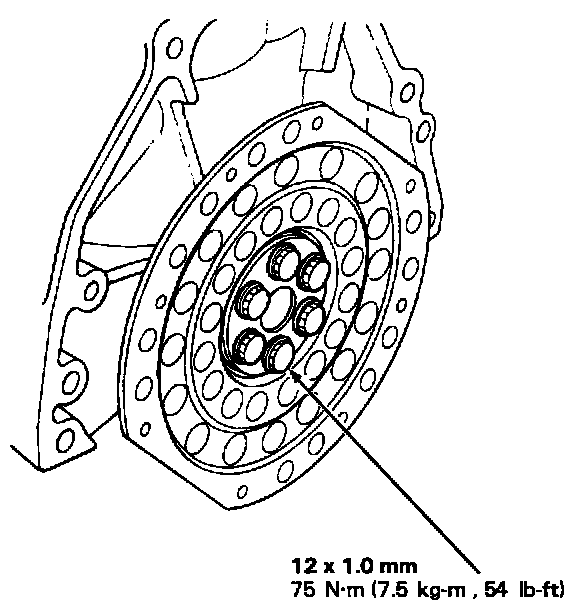

Drive Plate (A/T) Torque:

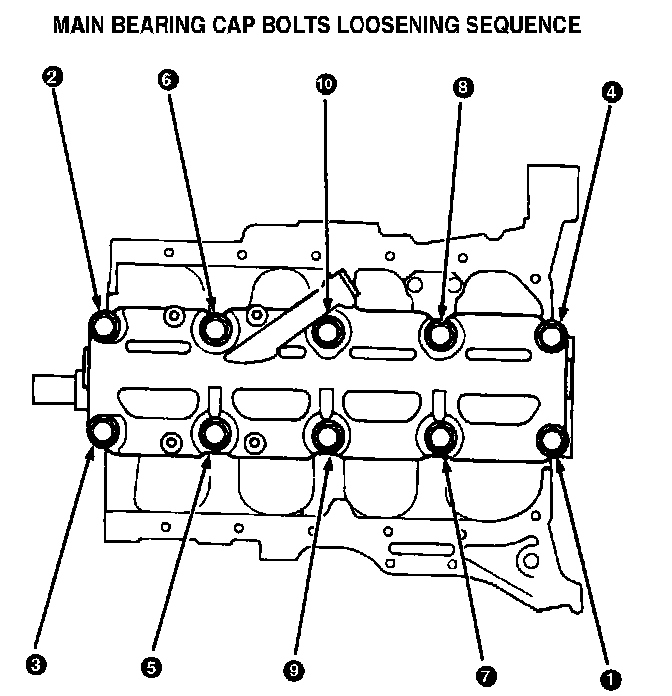

Main Bolt Loosening Sequence:

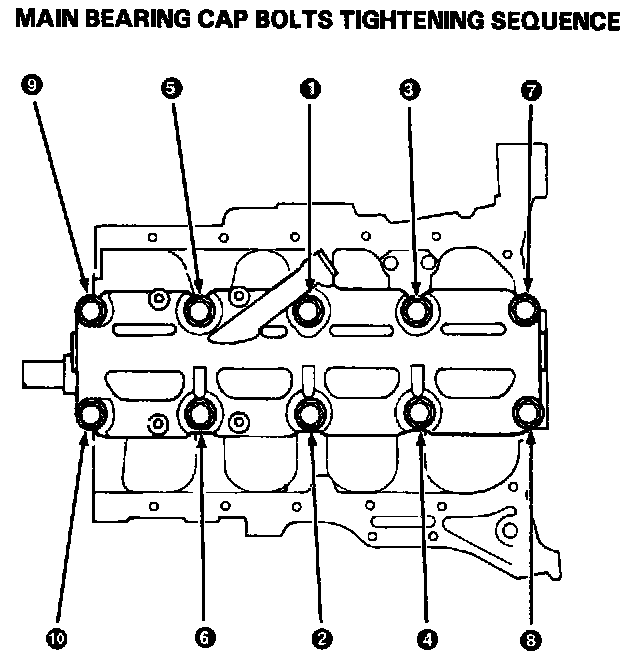

Main Bolt Torque Tightening Sequence:
