Clearing Diagnostic Trouble Codes

ERASING THE DTC MEMORY/SRS LIGHT

NOTE: Use the SCS service connector instead of a jumper wire. Otherwise you may not erase the memory because it is awkward to connect and disconnect a jumper wire quickly enough.

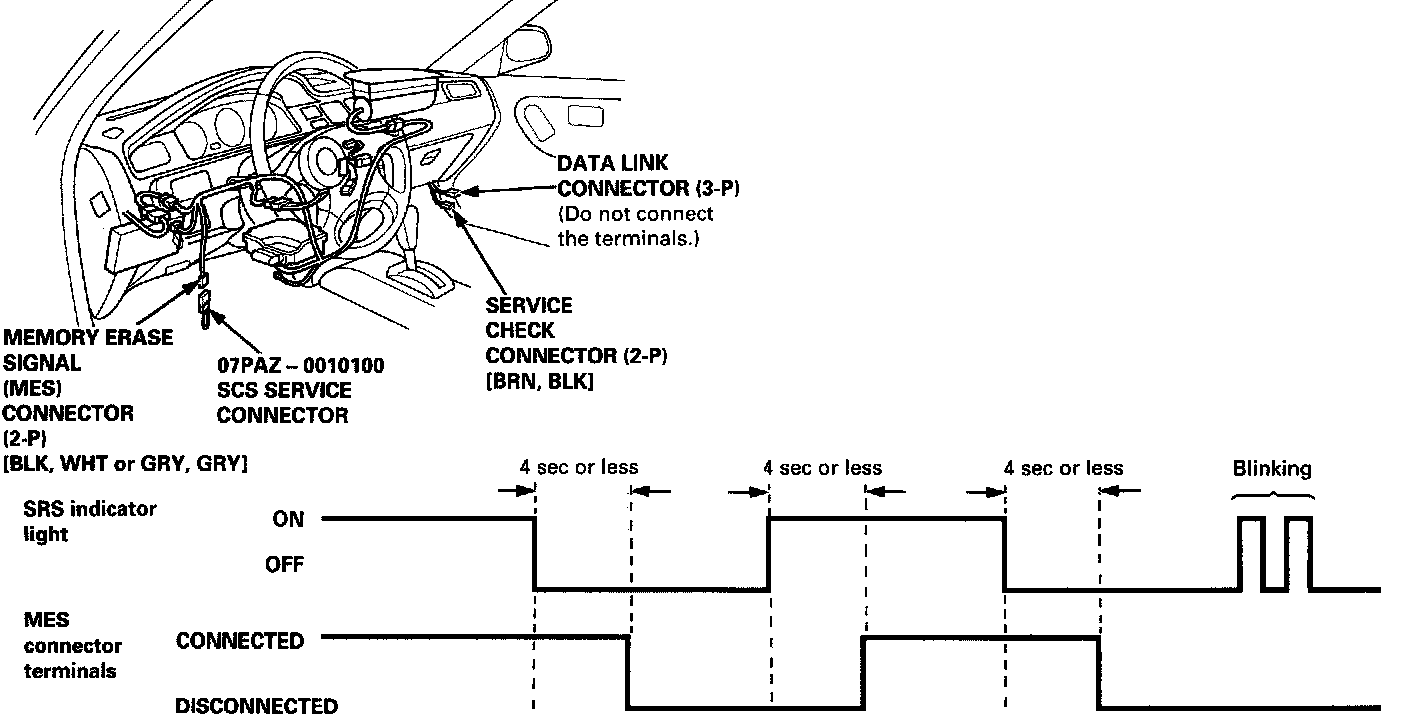

SRS Indicator Light
1. Connect the SCS service connector to the MES connector.
2. Turn the ignition switch ON (II).
3. The SRS indicator light comes on for about SIX SECONDS and goes off. Remove the SCS service connector from the MES connector within FOUR SECONDS after the SRS indicator light went off.
4. The SRS indicator light comes on again. Reconnect the SCS service connector to the MES connector within FOUR SECONDS after the SRS indicator comes on.
5. The SRS indicator light goes off. Remove the SCS service connector from the MES connector within FOUR SECONDS.
6. The SRS indicator light indicates that THE MEMORY IS ERASED BY BLINKING TWO TIMES.
