Compressor Clutch Relay: Testing and Inspection

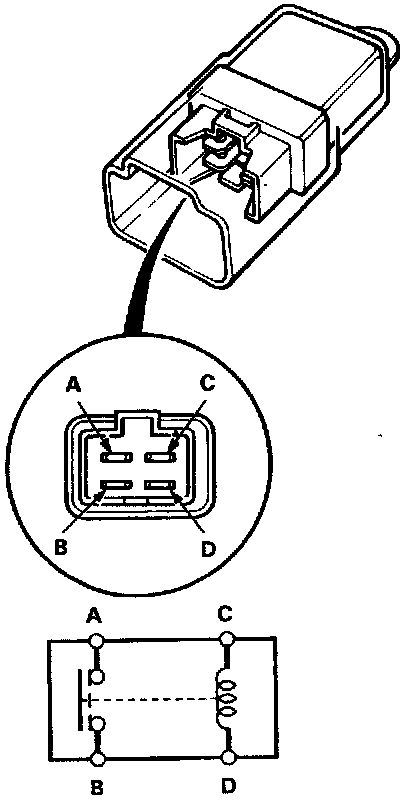

Relay Test




- There should be continuity between the C and D terminals.
- There should be continuity between the A and B terminals when power and ground are connected to the C and D terminals.
- There should be no continuity when power is disconnected.
