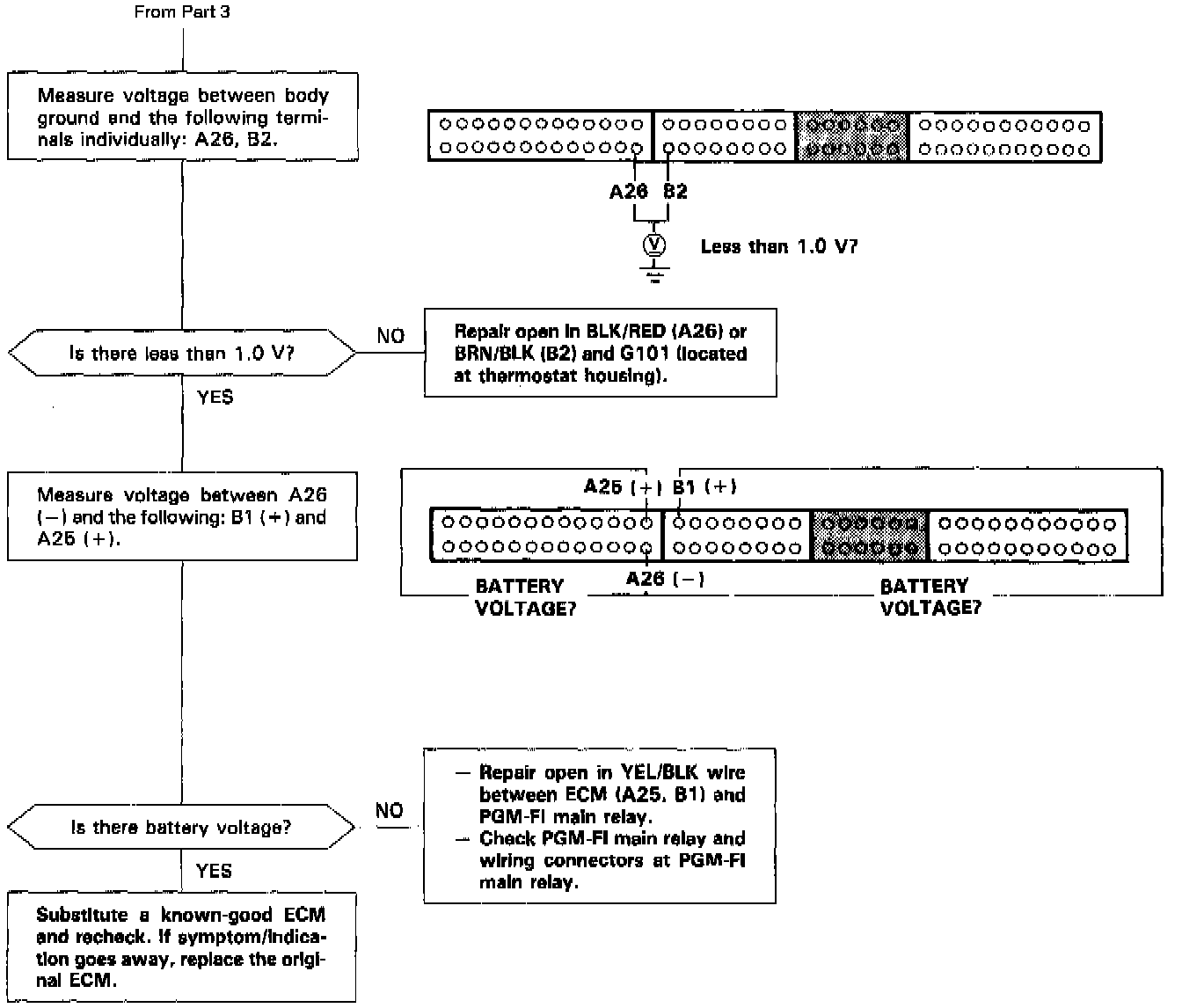

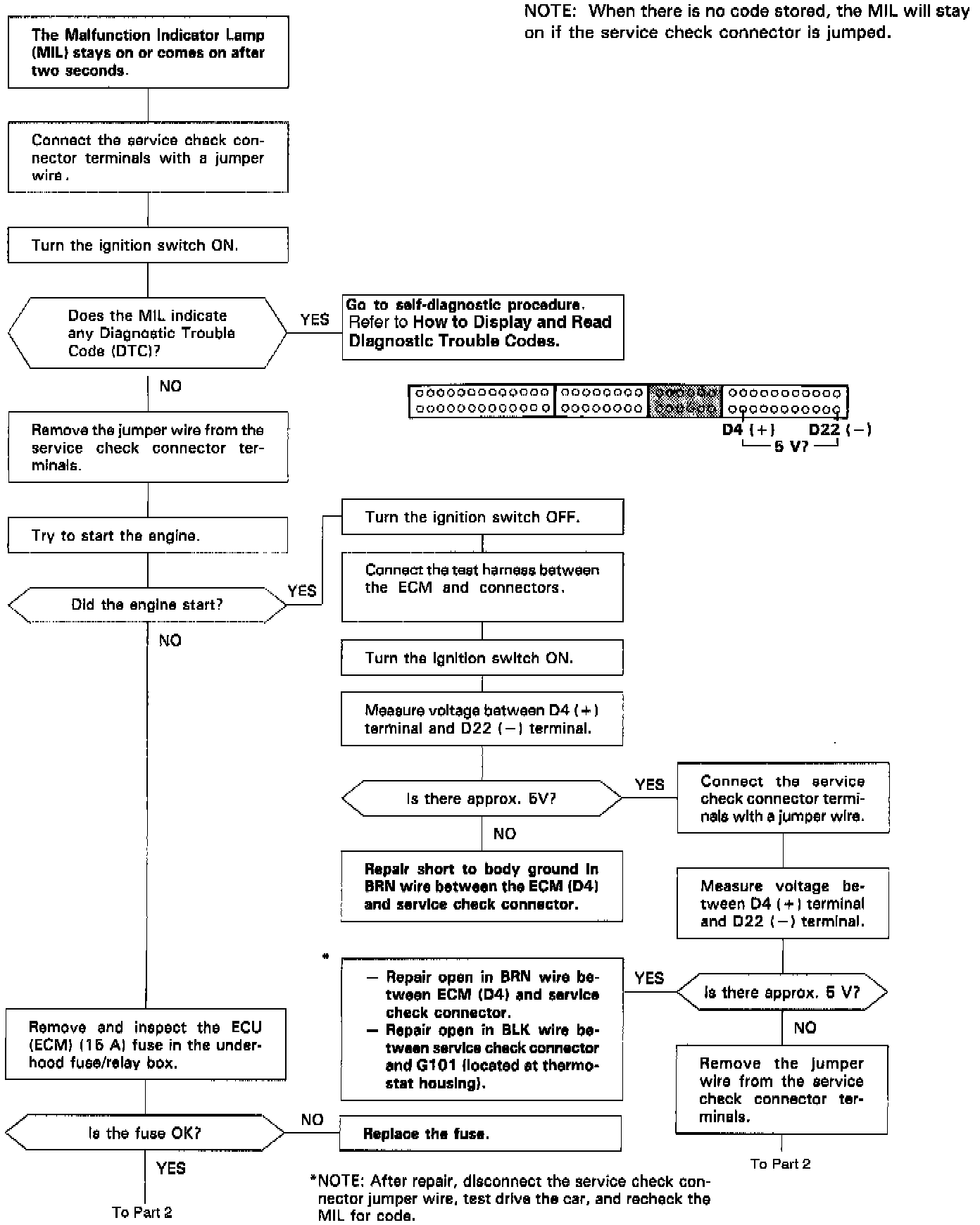

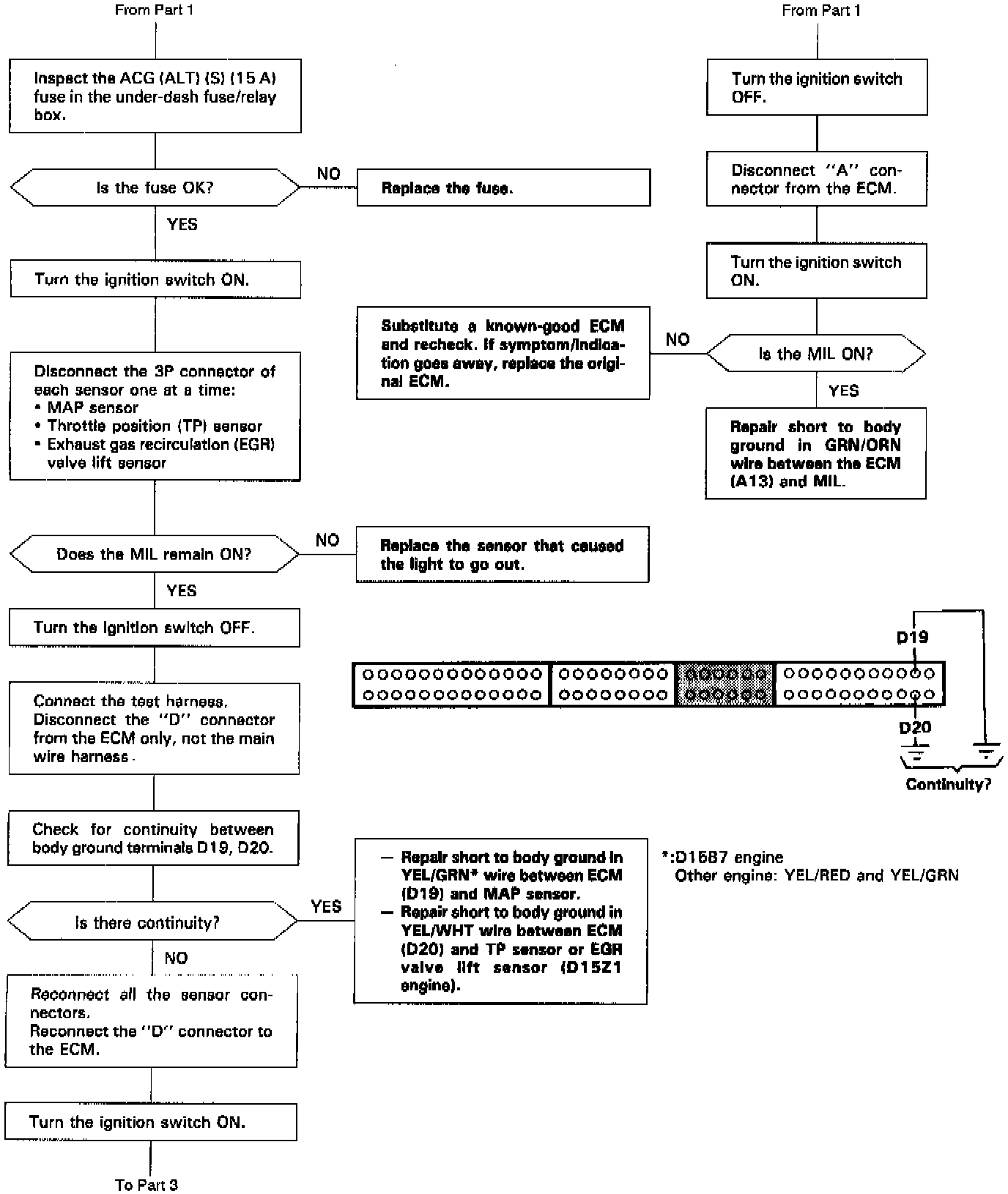

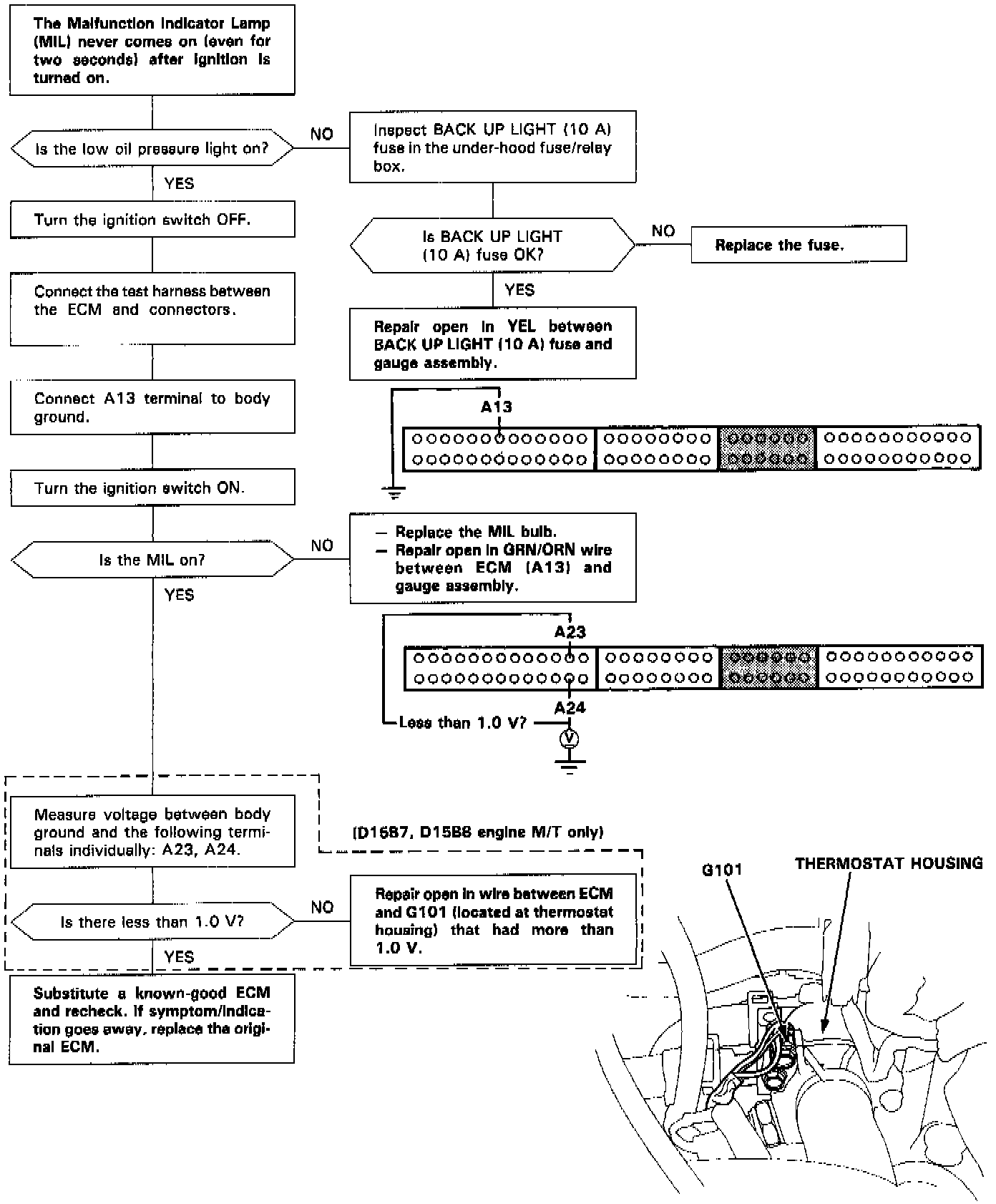

MIL Circuit Troubleshooting
MIL Circuit Troubleshooting
NOTE:
When there is no code stored, the MIL will stay on if the service check connector is jumped.
