Tailgate Harness

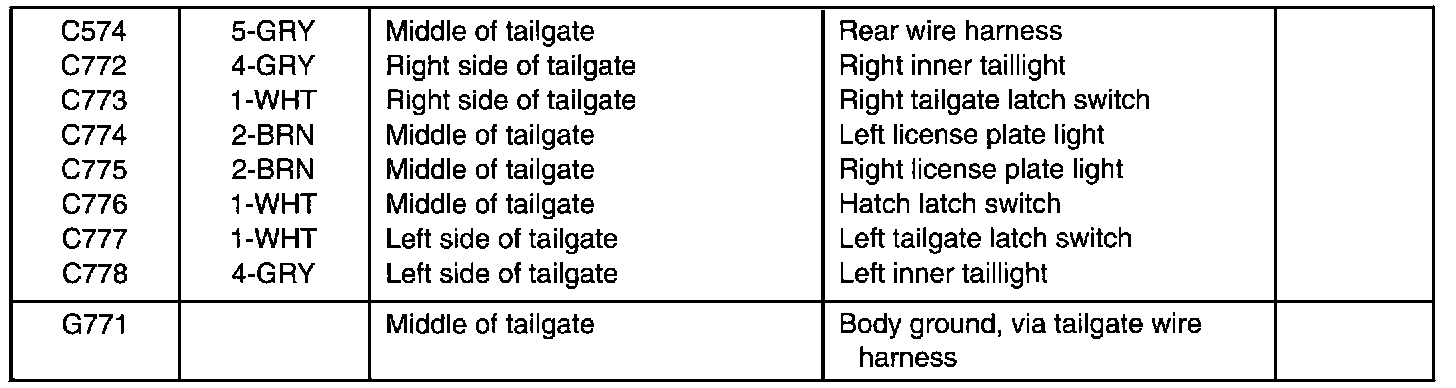

Tailgate Wire Harness (Hatchback):

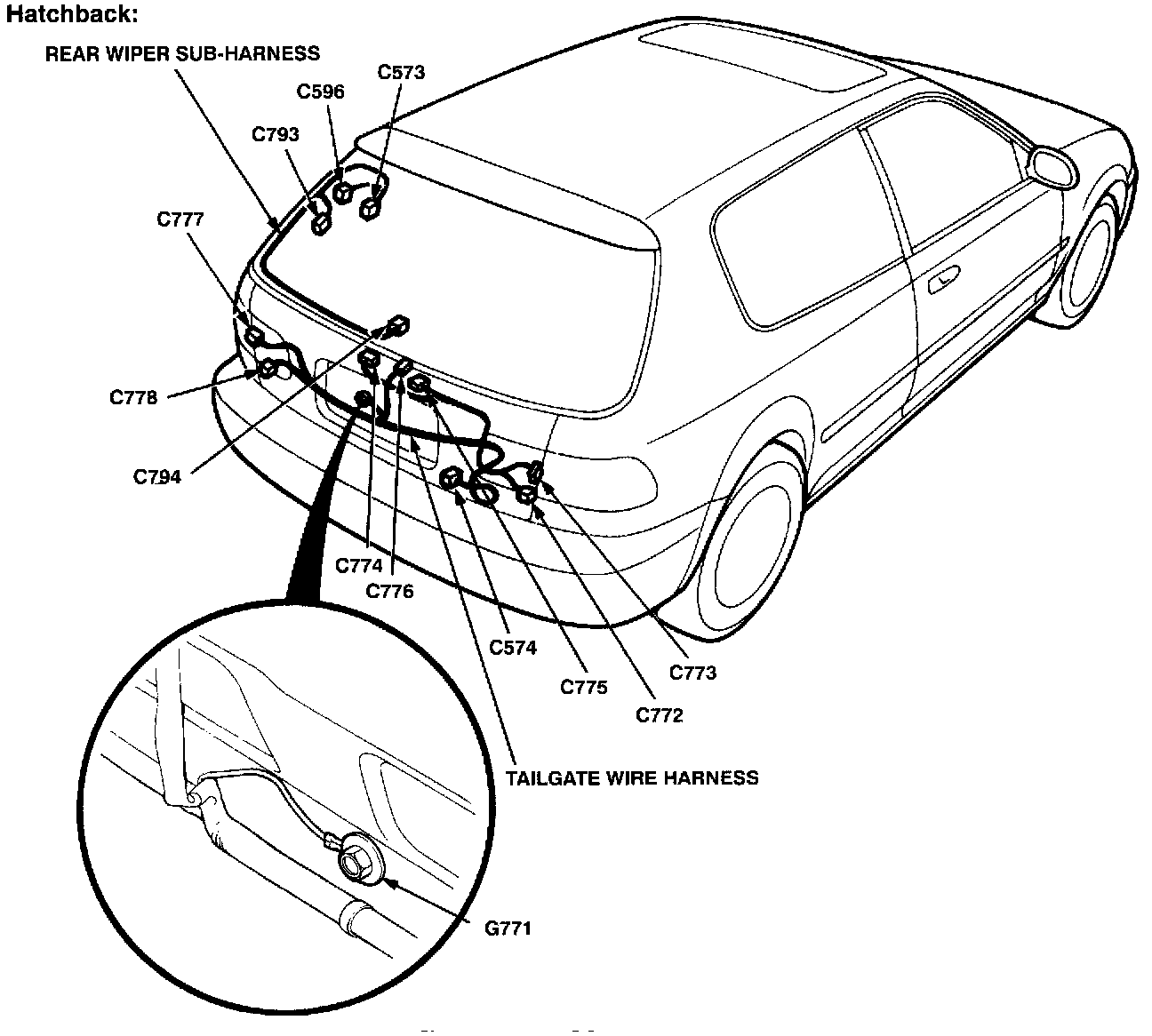

Tailgate Wire Harness & Rear Wiper Sub-Harness (Hatchback):
